Indian Chief, Deluxe, Springfield & Roadmaster Service Manual 2003 (P/N 99-846)

The 2003 Indian Chief Service Manual covers Chief Standard, Deluxe, Roadmaster, and Springfield models. The original cover identifies printed P/N 99-846 and CD P/N 99-821 for this publication.

Text Search, Wiring Detail and Printable Pages

Search and diagram detail: PDF text search works throughout the main text, although some illustration labels are not searchable. There are no embedded PDF bookmarks. Small connector numbers and wire-color codes in the front and rear chassis harness diagrams are readable when enlarged.

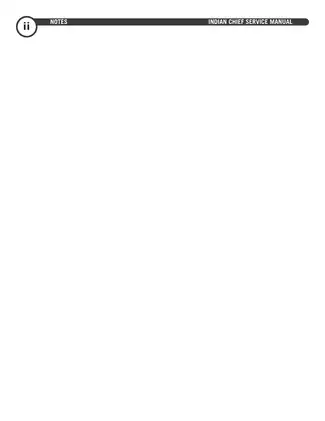

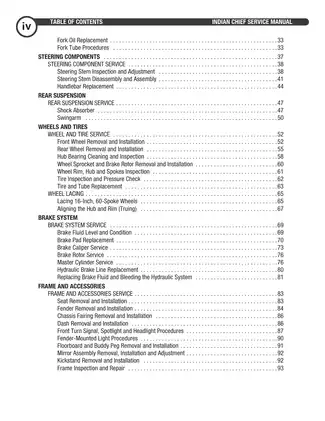

One English-language, printable 297-page PDF contains the original cover, eight preliminary pages, and the 288-page numbered main section. Four notes or blank pages within the main section are already included in that total.

POWERPLUS Engine, Drivetrain and Chassis Service

These selected service topics outline the repair coverage; further sections address air-filter maintenance and exhaust-system removal.

• Engine overhaul: Step-by-step procedures for engine removal, cylinder-head and piston service, valve-train work, crankcase separation, inspection, and reassembly.

• Fuel and emissions: Mikuni carburetor troubleshooting, float and accelerator-pump adjustments, fuel-petcock service, and California evaporative-system inspection and component replacement.

• Primary drive and clutch: Compensator and chain service, engine-to-transmission alignment, clutch adjustment, friction-disc replacement, and hub inspection.

• Transmission overhaul: Removal, trapdoor and gearset disassembly, bearing replacement, shift-fork inspection, gear stacking, and shift-pawl adjustment.

• Suspension and wheels: ILM and Paioli fork service, steering-stem adjustment, shock and swingarm work, wheel-bearing checks, and wheel lacing and truing.

• Brake service: Pad replacement, caliper inspection and shimming, master-cylinder overhaul, hydraulic-line replacement, and bleeding procedures.

• Electrical diagnosis: Ignition checks, battery and charging tests, starter-circuit diagnosis, Electrical Harness Controller checks, and chassis wiring diagrams.

This manual is suited to mechanics familiar with precision measurements and electrical testing who have access to the specified presses, pullers, and diagnostic equipment.

Engine Builds and Internal Repair

The specifications distinguish pre-#1800 and post-#1800 engine builds. Cylinder-head chamber volumes are 82–83 cc and 86–87 cc respectively, and valve-stem protrusion specifications also differ. These distinctions help match inspection data to the engine being serviced.

Repair coverage extends to rocker shafts, pushrods, cylinder heads, valves, cylinders, pistons, lifter blocks, the oil pump, alternator rotor and stator, ignition rotor, camshaft, breather gearing, and pinion gear. Lubrication service includes the oil filter, tappet screen, oil lines, and oil tank.

Early and later hardware receive separate attention, including piston-pin retainers and crankcase locating bolts versus alignment dowels. Later adjustable pushrods are distinguished from the earlier color-coded parts.

Fits-and-tolerances tables cover piston-to-cylinder clearance, ring gaps, valve-guide clearance, camshaft end play, connecting-rod/crankpin clearance, flywheel runout, and crankshaft end play.

Mikuni Fuel System and California Equipment

The gravity-fed fuel system uses a Mikuni HSR 42 mm flat-slide carburetor. Circuit explanations connect the enrichener, idle, main, accelerator-pump, and float systems to the operating conditions they control.

Troubleshooting addresses flooding, poor idle, part-throttle hesitation, full-throttle performance, and backfiring. Intake-air-leak checks help distinguish a sealing problem from a carburetor fault before carburetor repair or replacement is considered.

California equipment has separate coverage for the carbon canister, air-valve solenoid, tank vapor valve, and purge and vent hoses.

Primary Drive, Clutch and Transmission Details

The dual-track primary drives a wet clutch with 10 friction discs. Beyond clutch-pack replacement, the manual explains judder-spring orientation, hub and sprocket-case inspection, and bearing replacement.

Engine and transmission positioning procedures identify mounting shims and alignment checks against the inner primary housing. Rear-drive coverage connects wheel alignment, belt tension, and tracking to uneven belt wear and operating noise.

Transmission instructions extend through mainshaft and countershaft disassembly, gear and engagement-dog inspection, bearing installation depths, shift-fork identification, and final engagement checks.

Fork Differences, Wheel Work and Brake Limits

The fork chapters distinguish ILM and Paioli assemblies by caliper mounting, axle pinch bolts, oil seals and dust wipers, and upper caps. Steering coverage includes the fall-away test; wheel procedures include bearing adjustment and lacing and truing of the 16-inch, 60-spoke wheels.

Brake coverage addresses Brembo four-piston calipers and 11.5-inch rotors. The calipers are treated as replacement assemblies rather than internally rebuildable units, while the master cylinders have disassembly and assembly procedures.

The brake-fluid warnings explain how mixing DOT 5 silicone fluid with DOT 3, DOT 4, or DOT 5.1 can damage the system, requiring flushing and seal replacement. Caliper shims must retain their original positions.

Fork-service cautions identify the risk of permanently bending or distorting a tube or slider through incorrect vise clamping.

Electrical Tests, Diagrams and Tool Preparation

Electrical checks cover battery load and current leakage, ground paths, voltage drops, alternator output, stator resistance, and starter-current differences between Techcycle and Compufire units. Electrical Harness Controller diagnostics address connector continuity, power feeds, and overload indicators.

Ignition testing references sensor tester 98-056, module simulator 98-055, and Thunder Heart SmartLink diagnostic kit 88-990. Starter service concentrates on drive-pinion and solenoid work and starter-motor removal and replacement.

Workshop tool references include JIMS crank disassembly tool 1047-TP, flywheel rebuilding jig 1071, rod alignment tool 1010, and trapdoor bearing remover/installer 1078. Dimensioned drawings support fabrication of a cam-cover puller and modification of piston spiral-lock tools.

The Front and Rear Chassis Harness Diagrams map electrical connections. Separate POWERPLUS 100 ignition and lubrication diagrams explain system relationships, while Indian 5-Speed Transmission Power Flow Diagrams illustrate gear operation. Engine exploded views include part numbers and assembly references.

Torque tables, wear limits, and lubricant and sealant specifications provide bench references alongside the procedures. Work involves gasoline, brake hydraulics, spring-loaded forks, and heavy assemblies; follow the manual’s warnings and use suitable lifting and support equipment.

Selected Engine, Belt and Chassis Measurements

The warm-engine cylinder leakage test allows a maximum 15% leakdown. Oil-pressure specifications call for 12–35 psi at 2,000 rpm and normal operating temperature.

Rear-drive data specify 1/2-inch belt deflection under 10 pounds of force. Front and rear wheel-bearing end play is specified at 0.003–0.008 inch.

Fork filling distinguishes 11.5 ounces after disassembly from 10 ounces for draining and refilling without disassembly.
