Indian Scout & Spirit 2003 Service & Repair Manual

This is the Indian Scout/Spirit Service Manual for the 2003 model year. It describes Scout Standard, Deluxe, and Springfield configurations, plus Spirit Deluxe, Springfield, and Roadmaster, with service and repair procedures ranging from scheduled maintenance to component overhaul.

Printable PDF and Navigation Limits

Text search and diagram detail: PDF text search and embedded bookmarks are not available. Small connector, pin, and wire labels in the chassis wiring diagrams require magnification.

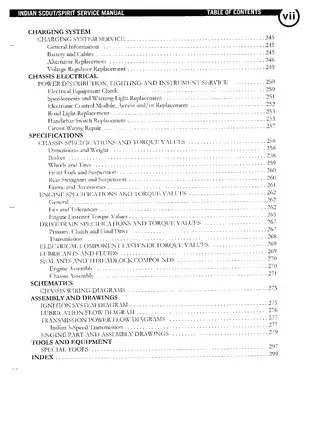

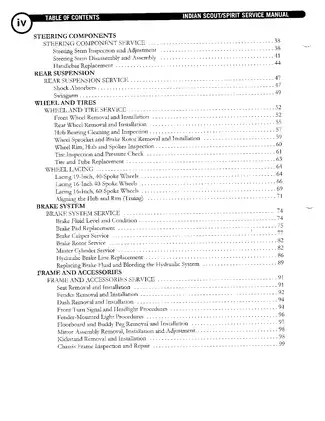

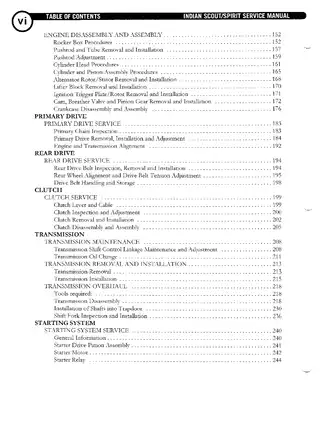

One printable English PDF contains 309 pages, including five table-of-contents pages and one duplicate of printed page 176. Printed page 48, covering rear shock absorber removal, inspection, and adjustment, appears after the index at PDF p. 309.

S&S Engine, Drivetrain and Chassis Service

The following is a selection of covered work, rather than a complete contents list. Additional topics include air-filter service and chassis-frame inspection.

• S&S engine repair: Engine removal and installation, rocker-box and cylinder-head work, piston inspection, cam and breather gear service, lubrication-system repair, and crankcase procedures.

• Primary drive and transmission: Primary-chain service, clutch teardown and inspection, transmission removal, gearset disassembly and reassembly, and shift-control adjustment.

• Chassis and brakes: Fork overhaul, steering-bearing adjustment, shock and swingarm service, wheel-bearing checks, wheel lacing, master-cylinder repair, caliper replacement, and brake bleeding.

• Fuel and emissions: S&S Type E carburetor rebuilding, float and accelerator-pump adjustments, intake-leak checks, and California evaporative-system inspection and service.

• Ignition, starting and charging: Trigger-plate and ignition-module tests, static and dynamic timing, starter diagnosis, battery testing, and alternator rotor/stator service.

• Electrical fault isolation: EHC diagnostic LEDs, connector pin tracing, continuity and voltage-drop tests, current-leak checks, switch/harness repair, and instrument and control-module replacement.

• Workshop references: System schematics, transmission power-flow views, engine assembly drawings, torque tables, fits, wear limits, fluid data, and sealant/threadlocker charts.

Its internal-engine and transmission work, measurement requirements, and dedicated tooling make this manual best suited to experienced motorcycle mechanics and advanced owners with appropriate shop equipment.

Engine Builds and Internal Repair

Production changes: The engine material records adjustable pushrods used through January 16, 2003, followed by four color-coded non-adjustable pushrods introduced January 17. Dual valve springs began February 7, and non-roller rocker arms are listed from July 8. These distinctions help match replacement parts to the installed valve-train configuration.

The parts drawings separate adjustable and non-adjustable lifter-block assemblies and identify the later fixed-length pushrods as P/N 08-996 through 08-999. Cylinder-head work includes valve-guide and seat inspection, while cylinder and piston procedures address bore condition, ring gaps, and component clearances.

Crankcase coverage: Crankcase, flywheel, and bearing procedures are included, but printed page 177 is missing from the disassembly sequence. This portion of the engine-overhaul instructions is therefore incomplete.

Primary Drive, Clutch and Transmission

Engine/transmission alignment is documented for refitting major assemblies to the inner primary housing. Transmission overhaul extends to mainshaft and countershaft gear stacking, trapdoor bearing service, shift-fork inspection, and shift-pawl adjustment, with power-flow views from neutral through fifth gear.

The clutch section includes step-by-step disassembly and assembly procedures. Separating the clutch hub from the sprocket case damages the bearing, which must then be replaced; the manual distinguishes this operation from clutch-pack service alone.

Rear-drive work covers belt replacement, rear-wheel alignment, tension adjustment, and handling limits. The specified equipment includes belt-tension gauge P/N 99-215 and axle-alignment tool P/N 99-210 with adapter P/N 99-216.

Chassis Differences and Brake-Service Limits

Scout and Spirit wheel assemblies have separate lacing patterns and rim-offset procedures. The Scout uses 40-spoke wheels with a 19-inch front and 16-inch rear; the Spirit uses 60-spoke 16-inch wheels at both ends. Fork-tube overhaul, steering-stem fall-away checks, wheel-bearing end play, shock preload, and swingarm pivot-bearing replacement are also covered.

Brake repair: The master cylinders have disassembly, inspection, and assembly procedures. The brake calipers are serviced as complete units: coverage includes inspection, replacement, and alignment shimming, rather than internal caliper rebuilding.

The brake chapter specifies DOT 5 silicone fluid. Mixing it with DOT 3 or DOT 4 glycol fluid causes clotting and requires system flushing and replacement of the caliper and master-cylinder rubber seals.

Model-specific procedures also distinguish the exhaust layouts and Spirit-only floorboard work.

Fuel-System and Electrical Diagnosis

Carburetor and emissions: Step-by-step S&S Type E rebuilding instructions cover the float mechanism, throttle shaft, enrichener, jets, and accelerator pump. Separate jetting information distinguishes California models from 49-state models with the carburetor restrictor. California carbon-canister and intake air-valve coverage includes inspection, troubleshooting, removal, and installation.

Fault tracing: Primary, interval, and renewal service schedules sit alongside symptom-based troubleshooting charts. Compression and cylinder-leakage tests help assess mechanical engine condition, while charging and starting tests distinguish alternator, regulator, starter, and wiring faults before components are replaced.

EHC diagnostic LEDs respond to overload conditions; a failed ground or interrupted power supply may leave them unlit. Connector pin tracing and continuity tests provide a separate way to investigate those faults.

Ignition testing calls out the IMC 98-056 trigger-plate/speedometer-sensor tester and IMC 98-055 ignition-module simulator. The special-tools section identifies JIMS equipment for engine, crankshaft, seal, bearing, and transmission work.

Diagrams and drawings: Front and rear chassis harness diagrams support circuit tracing. The S&S Super Stock engine ignition and lubrication schematics, transmission power-flow diagrams, and engine assembly drawings provide additional reference for diagnosis and reassembly.

Support the motorcycle and major assemblies securely, isolate electrical power where instructed, and use the specified lifting, measuring, and test equipment. Fuel handling, battery work, brake service, and spring-loaded assemblies carry specific safety warnings.

Preview: Engine-Condition and Alternator Test Values

For the S&S engine, the compression test specifies 150–195 psi at normal operating temperature with the throttle fully open. The warm-engine cylinder-leakage test gives a maximum acceptable leakdown rate of 15%.

The alternator output test specifies 32–40 volts AC at 2,000 rpm with the regulator disconnected from the stator. Separate stator-resistance checks help distinguish winding faults from rotor problems.
