1999–2001 Indian Chief Service & Repair Manual

Indian's 99–01 Models Service & Procedures Guide, Revision C (August 2002) covers service and repair procedures for the 1999–2001 Indian Chief with the 88 c.i. V-twin.

Text search and navigation: The service chapters have an OCR text layer, but recognition errors can affect search results, and some image labels are not searchable. The cover has no searchable text, and there are no embedded PDF bookmarks.

• Engine service: Rocker box gasket replacement, tappet-screen cleaning, oil-system inspections, and static and dynamic ignition-timing checks.

• Fuel and emissions: S&S Super E carburetor rebuilding, float and accelerator-pump service, and California evaporative-emissions troubleshooting.

• Primary drive and clutch: Primary-belt replacement, sprocket alignment, clutch-disc inspection, diaphragm-spring adjustment, and wet-clutch friction-plate replacement.

• Electrical troubleshooting: Regulator and stator tests, starter-circuit voltage-drop checks, battery current-draw testing, and starter removal and installation.

• Brakes and chassis: Brake-pad replacement and brake bleeding, steering-head service, fork-oil replacement, wheel-bearing adjustment, and rear-drive-belt tracking.

• Transmission repair: Level III disassembly, gear and shaft inspection, bearing replacement, gear stacking, shift-fork installation, and shift-pawl adjustment.

This guide is suited to mechanics experienced in V-twin service; transmission repair requires a press, measuring equipment, and dedicated service tools.

Engine Service and Rocker Box Repair

Chapters break down pre-delivery inspections, primary maintenance, interval servicing, and component rebuilding. The Primary, Interval, and Renewal Service checklists reference engine and transmission oil service, air-filter care, fuel-system inspection, and control-cable lubrication.

Rocker box instructions distinguish upper and center gasket leaks from work requiring lower-box removal, with separate procedures for the front and rear cylinders. They address hydraulic tappet bleed-down and rocker-arm inspection, supported by torque-sequence photos. A full internal engine overhaul is outside this guide's scope.

S&S Super E and California Emissions

The carburetor chapter separates California jetting from 49-state configurations with a carburetor restrictor. Rebuilding covers the float needle and seat, accelerator-pump diaphragm, throttle shaft, bleed passages, and enrichener. Float-height views identify the measuring points.

California emissions coverage explains the charcoal canister, vacuum spring diaphragm, solenoid valve, one-way valve, and pressure-relief valve. Hose-connection photographs show the routing between components.

Clutch Service and Transmission Rebuilding

The diaphragm-spring clutch and wet-clutch friction-plate assembly have separate procedures, including plate and hub inspection, shimming, and judder-spring details. The manual warns that incorrect diaphragm-spring adjustment can cause slipping, excessive wear, or premature clutch failure.

Primary-belt deflection and sprocket-alignment views accompany the belt procedures. The five-speed transmission chapter extends to mainshaft and countershaft teardown, main-drive-gear needle bearings, trap-door bearings, and seal installation, with bearing-depth specifications and shift-drum setup.

The tool list identifies JIMS pullers, bearing installers, seal drivers, and sprocket-locking tools. Gear-stacking photos and shift-fork identification drawings support reassembly, while the sprocket-spacer instructions explain how incorrect chamfer orientation can crush the quad seal.

Starter and Charging-System Diagnosis

Battery care distinguishes conventional lead-acid and Yuasa maintenance-free batteries. The starter voltage-drop tests cover both power and ground circuits, helping isolate cable or connection faults before replacing the starter.

Regulator-performance, stator AC-output, grounded-stator, shorted-stator, and current-draw tests include the related electrical test specifications. This electrical section provides testing procedures and tables; vehicle wiring diagrams are outside its scope.

Chassis Service and Reference Data

Wheel-bearing coverage pairs end-play measurements with a center-hub-spacer length and part-number table. Steering service includes bearing lubrication and the fall-away check. Rear-shock coverage distinguishes Progressive and KT/Sway-A-Way units, with inspection and preload adjustment rather than dealer-level internal rebuilding.

Technical data is organized into tables listing fluid requirements, tire pressures, and engine tune-up specifications. Transmission gear ratios, brake wear limits, and the component-specific bolt-torque audit provide further reference data.

Brake work and lifting the motorcycle require the workshop precautions described in the manual.

Printable PDF and Included Pages

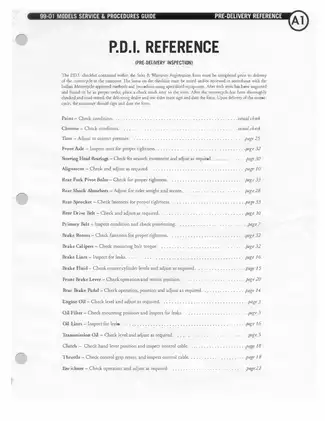

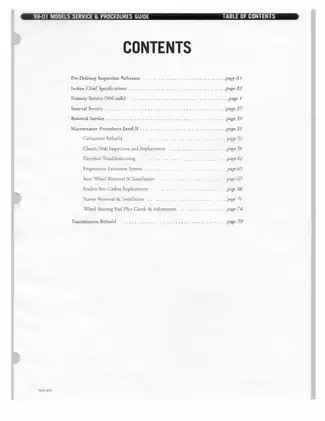

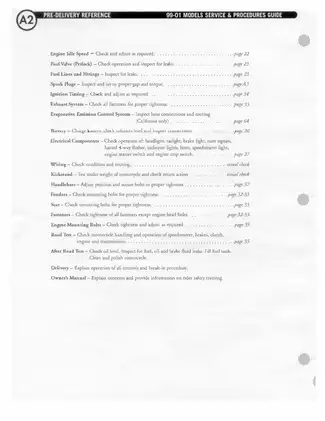

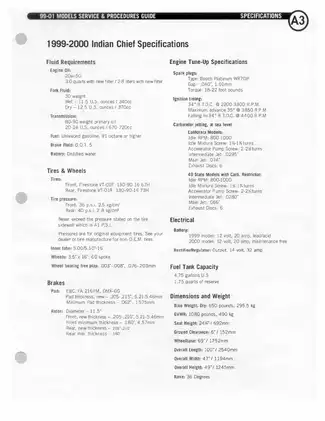

One English-language, printable 103-page PDF contains 1 cover page, 1 contents page, 2 pre-delivery inspection pages, 1 Chief specification page, 96 service and section-divider pages, and 2 blank pages. All are included in the 103-page total.
