1968–1973 Ferrari 365 GT4 Factory Service Manual (OEM)

• Covers the 1968–1973 Ferrari 365 GT4 Berlinetta Boxer, including strictly the F102A engine and F102AB chassis configurations.
• Official 102-page factory publication (Print No. 84/73) provided in an English, Italian, and French trilingual edition.
• Contains 47 exploded-view system diagrams, comprehensive fuse and relay layout charts, and detailed lubrication schedules.
• Serves as the primary reference for servicing the unique flat-12 engine and Dinoplex ignition system.
• Delivers essential PDF resources, including complete Wiring diagrams, troubleshooting workflows, and advanced diagnostic parameters for complex repair operations.
• Highlights vital assemblies like the rack and pinion steering, independent suspension, tandem hydraulic brakes, toothed timing belts, and the air conditioning system.

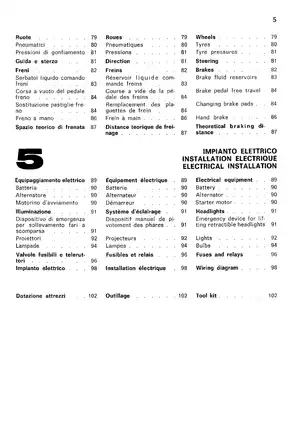

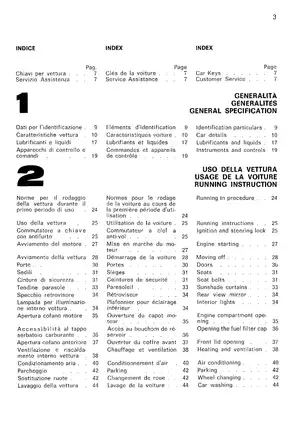

System Coverage Details

This documentation provides a structured breakdown of the vehicle's core systems. It starts with critical identification markers for chassis and engine serial numbers. From there, it transitions into driver operational guidance before diving deep into routine maintenance. Mechanics will find highly specific lubrication charts tailored directly to the F102A engine and transmission drivetrain, saving critical time on the shop floor when verifying vintage fluid specs. Having this exact factory baseline prevents costly trial-and-error when tracing electrical faults or calibrating the complex valvetrain, directly reducing investigative hours and protecting highly sensitive vintage components. Furthermore, the documentation features detailed step-by-step instructions for tasks that typically demand an expensive visit to a specialized shop, such as executing a full toothed timing belts adjustment, synchronizing the Weber carburettors, and bleeding the tandem brake circuit.

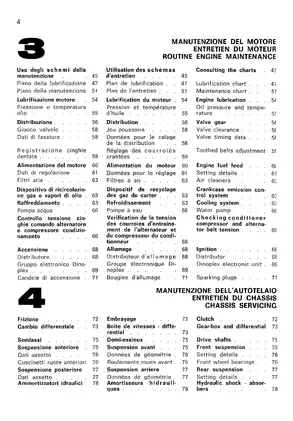

Engine and Chassis Specifications

Engine maintenance sections outline exact data for the four-cam valve gear. Intake clearances are strictly specified at 0.008–0.010 inches. To manage the flat-12's thermals, the cooling system relies on a targeted radiator operating range of 185–203°F (85–95°C), which is clearly mapped out in the included Cooling system layout. The text explicitly documents all fluid capacities. Expect to see requirements like 12 liters of oil for the engine sump and 22 liters for the cooling system. Along with the standard Maintenance chart, users will find a detailed Layout of camshaft drive and a dedicated Heating and ventilation system layout.

Fuel system tuning is covered extensively for the four Weber 40 IF carburetors. You get precise jet sizes and float levels to accurately dial in the air-fuel mixture. Hydraulic brake layouts show tandem circuits and vacuum-assisted operation, pinpointing free-pedal travel at 0.32–0.40 inches, further visualized by a comprehensive Diagram of the braking system. Electrical reference values lay out the Marelli-sourced components, mapping the complex electronic Dinoplex unit with its specific Automatic advance curve. When approaching mechanical repair work on the 365 GT4 BB, professionals know that the fragile Dinoplex AEC 104 BK ignition is highly sensitive to voltage irregularities and heat-soak, making flawless ground connections critical. Additionally, a classic pitfall is failing to perfectly synchronize the four triple-choke Webers; uneven fuel delivery easily masks underlying ignition faults and can cause severe thermal stress on the cylinders. Working on vintage high-performance systems involves high voltages and pressurized fluids; always observe standard shop safety protocols and ensure proper ventilation before proceeding with these exact factory adjustments.
