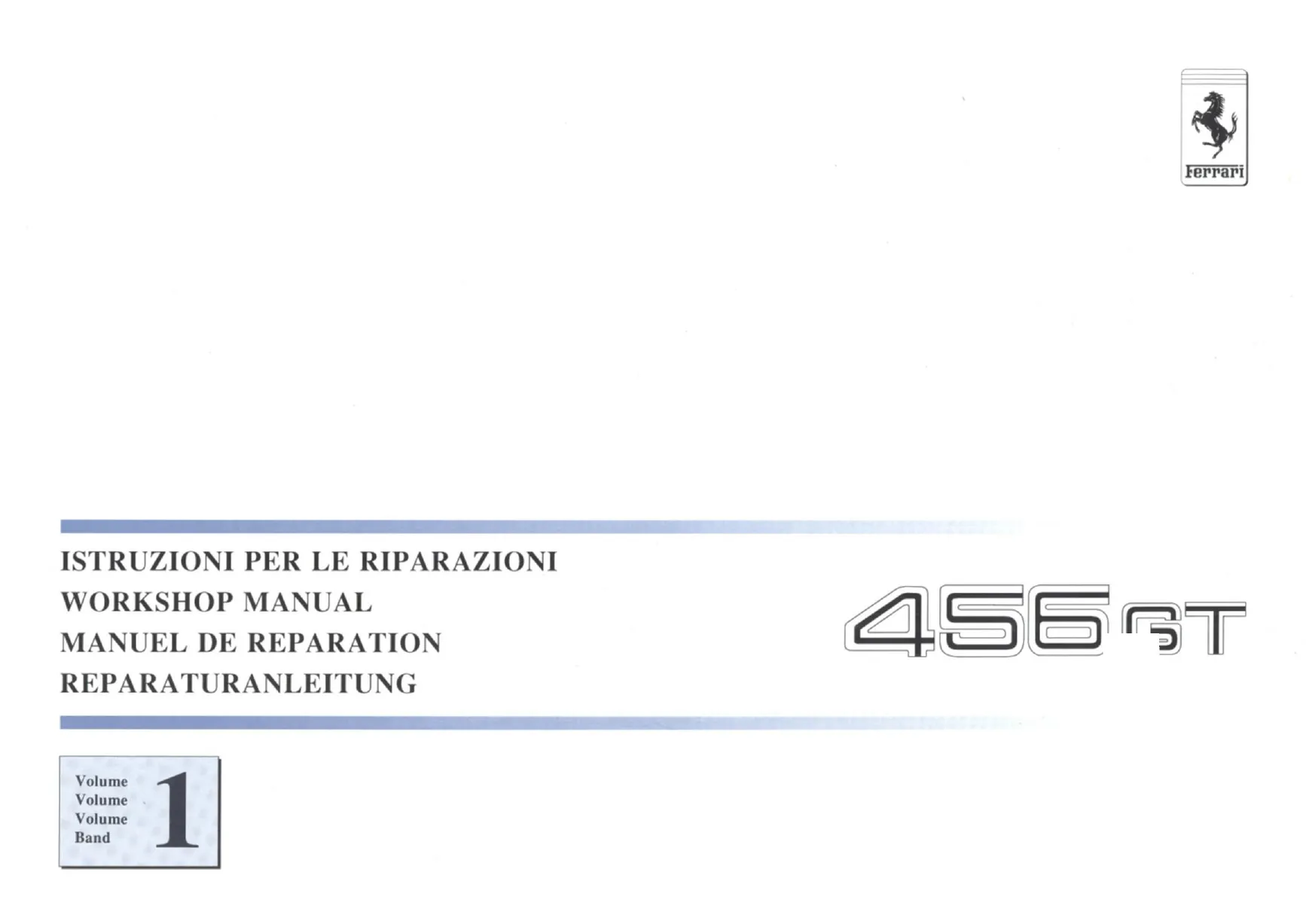

Ferrari 456 GT/GTA 1992–1997 Workshop & Owner's Manual Collection

The workshop volumes provide repair procedures, while the owner's manuals add operating instructions, maintenance schedules, and information for different markets and configurations. The RHD and airbag supplements address the corresponding owner-information variations.

Coverage limits: The gearbox overhaul chapter covers the six-speed manual transmission. GTA owner's manuals provide automatic-transmission operation and maintenance information, without internal automatic-transmission overhaul procedures. The 456M documents are owner's manuals and recall information, not 456M workshop repair volumes.

The M2.7 workshop procedures run from printed pages C63–C82 rather than covering the entire chapter. Volume 2 includes window-control and A/C schematics, but the full-vehicle wiring diagram listed in its electrical index is not included.

PDF Search, Bookmarks and File Contents

Search and diagram detail: Text search is available in both recall PDFs and the 2003 U.S. owner's manual, with some illustration pages excluded. The other 18 PDFs lack text search. All 19 manual PDFs have embedded bookmarks; the two recall files do not. Small labels in the Volume 2 window-control and A/C schematics require zooming.

The ZIP contains 21 printable PDFs totaling 3,690 pages, including original covers, blank pages, and the four recall-summary pages. Two identical duplicate files account for 437 of those pages; excluding those exact duplicates, the files total 3,253 pages. The Ferrari manuals retain Italian, English, French, and German text; the recall summaries are in English.

Engine, Drivetrain and Vehicle-System Coverage

The following selected topics outline the repair content; further material includes rear-spoiler self-diagnosis and battery-load testing.

• Engine repair: Cylinder liners, crankshaft, pistons and connecting rods, cylinder heads, and camshafts, with step-by-step assembly and timing-belt procedures.

• Motronic diagnosis: Separate M2.7 and M5.2 material covers fuel-delivery checks, bank synchronization, SD-1 diagnosis, active tests, and ignition/injection signal traces.

• Manual drivetrain: Clutch removal, installation and bleeding; gearbox overhaul, synchronizer inspection, differential setup, axle-shaft removal, and shift-linkage adjustment.

• Steering and suspension: ZF Servotronic pump filling and bleeding, wheel-bearing replacement, alignment, Bilstein variable damping, rear self-leveling hydraulics, and rear-spoiler operation.

• Brakes and ABS: Teves MK IV G fault codes, hydraulic checks, wheel-speed sensor replacement, solenoid-valve testing, pad replacement, bleeding, and parking-brake adjustment.

• Climate control: DIAVIA system operation, Sanden SD 709 compressor checks, electromagnetic-clutch removal, refrigerant recovery and charging, leak testing, and pressure-switch checks.

• Body electrical systems: Window and central-locking control logic, SD-1 diagnosis, battery testing, headlamp adjustment, bulb replacement, and fuse/relay identification.

The workshop procedures suit technicians with engine-overhaul experience, precision measuring equipment, and access to Ferrari SD-1 diagnostics; the owner's manuals support vehicle operation and routine checks.

Engine Assembly, Lubrication and Cooling

The engine chapter includes liner-protrusion checks, crankshaft and bearing evaluation, valve-guide and seat work, cylinder-head hydraulic testing, valve timing, and final belt-tension adjustment. Graded component dimensions, repair sizes, wear limits, assembly clearances, and torque tables support the inspection and assembly work.

Factory tool listings identify the STAEGER FST 50 belt tensiometer, AV 2023 overhaul stand, timing goniometer, liner-protrusion gauges, valve-guide tools, reamers, punches, and crankshaft-seal installers. Engine cross-sections, timing diagrams, and belt-reference views accompany the procedures.

Liner handling: Grinding the Nikasil-coated cylinder liners would remove their protective surface finish; the chapter explains the inspection criteria for replacement.

The dry-sump material covers the pressure and scavenger pumps, oil tank, coolers, and crankcase emission-control circuit. Cooling-system procedures address the water pump, thermostat, expansion tank, filling, and bleeding.

Thermostat assembly: The air-bleed hole must face upward. Removing the thermostat valve would allow coolant to circulate mainly through the bypass instead of the radiators.

Motronic Diagnosis and Revision Differences

The M2.7 material concentrates on diagnosis, fuel-pump delivery and pressure checks, idle adjustment, cylinder-bank synchronization, and oscilloscope traces. The M5.2 chapter adds sensor and actuator descriptions, ECU inputs, secondary-air and evaporative-emission systems, guided diagnosis, and an automatic diagnostic cycle.

The variant-specific instructions distinguish the M2.7 and M5.2 test connections and adjustment methods before testing begins. M5.2 also describes communication between the cylinder-bank ECUs and the GTA automatic-transmission ECU through the CAN line.

M5.2 reset requirements: The diagnostic section specifies an SD-1 reset of learned parameters after relevant actuator replacement or mixture adjustment rather than relying on ECU disconnection.

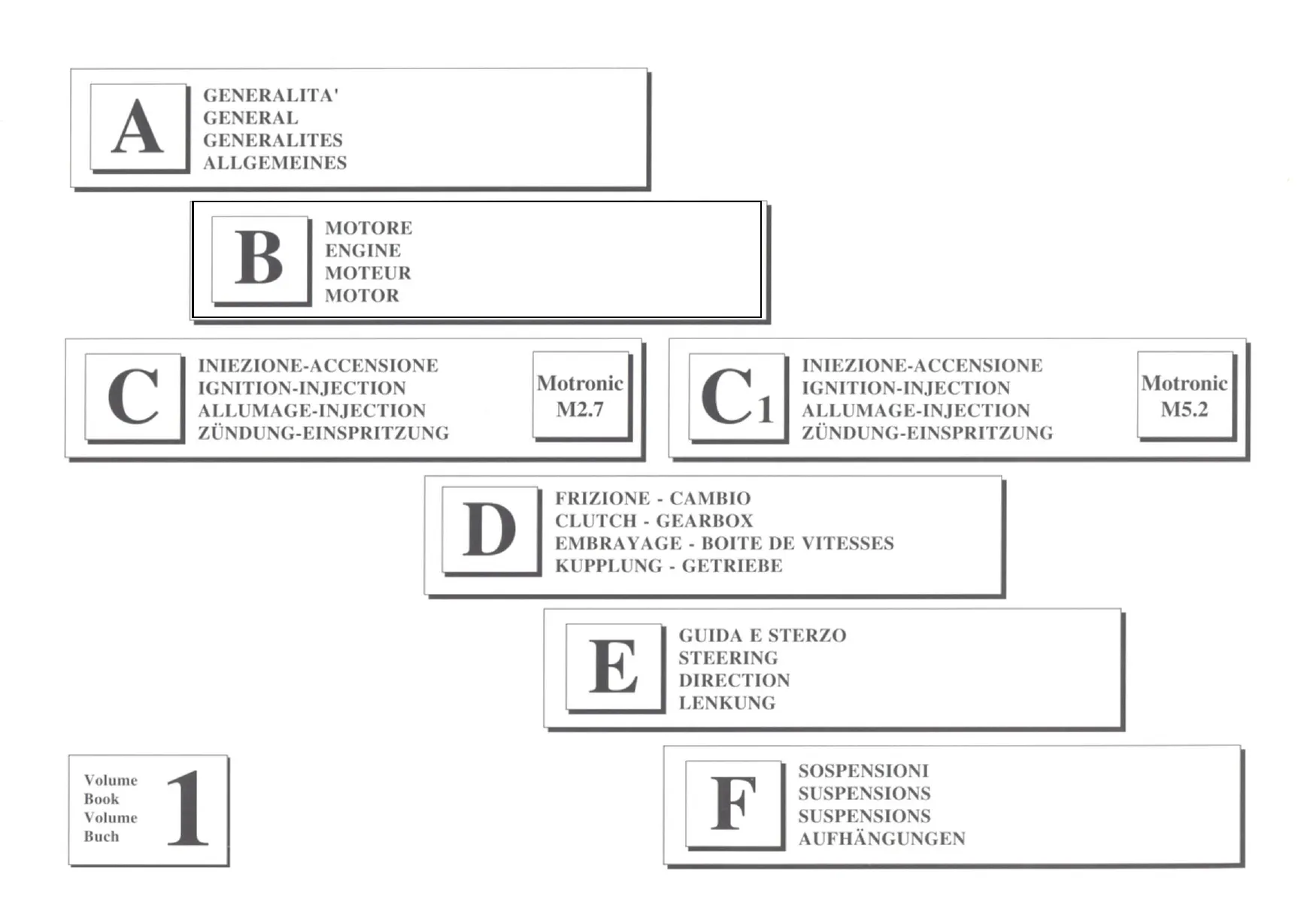

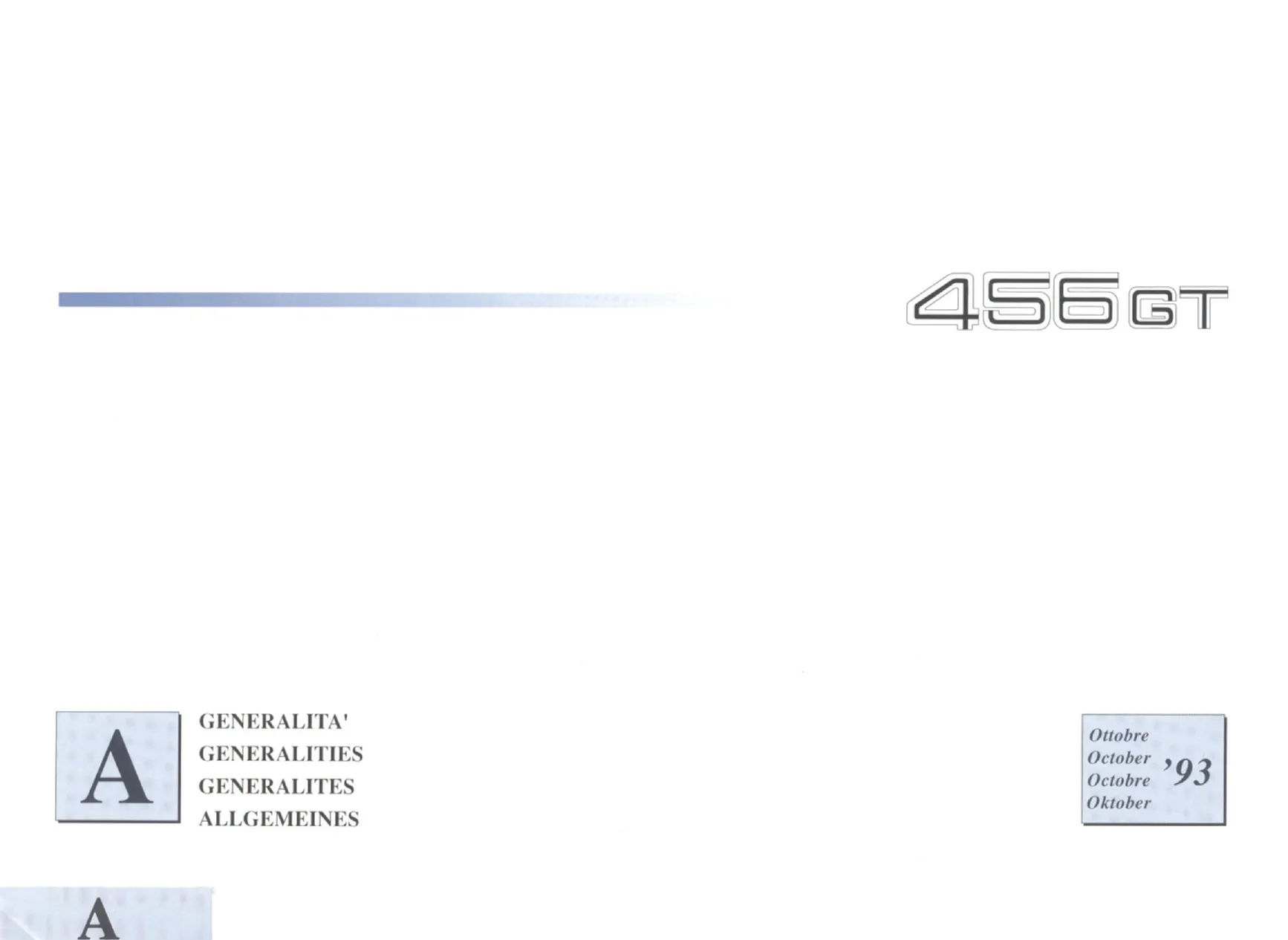

Volume 1 combines several factory revisions: Generalities, October 1993; Engine, December 1993; M2.7, November 1994; Clutch and Gearbox, April 1995; Steering and Suspension, May 1994; and M5.2, June 1996.

Gearbox Setup, Steering and Suspension

Gearbox inspection extends to synchronizer operating loads, gear end float, internal oil-pump service, and shaft and bearing assembly. Pinion-bearing preload and crownwheel contact-pattern checks accompany differential setup; selector-fork positioning and external linkage centering complete the shift-control work.

The Servotronic current-versus-speed chart explains steering assistance. Suspension documentation adds damper characteristic graphs, actuator checks, SD-1 fault diagnosis, self-leveling circuit layouts, and ride-height adjustment.

ABS Diagnosis and Brake Service

Volume 2 pairs the Teves MK IV G failure-code list with hydraulic test charts, interconnector and multimeter checks, and solenoid-valve operation tests. These checks help distinguish sensor, wiring, pressure-supply, and hydraulic-unit faults before components are replaced.

The ABS hydraulic unit is treated as a replacement assembly, not an internally repairable unit. Separate brake procedures cover caliper centering, disc inspection, pad replacement, bleeding, and parking-brake adjustment.

Climate Control and Body Electrics

The climate-control chapter explains compressor-clutch operation, expansion-valve behavior, sensor checks, and heating/cooling performance graphs. Its electrical diagram supports the functional tests for the compressor, pressure switches, and condenser fan.

The window-control chapter connects the wiring diagram with door-lock feedback, glass-position sensing, protection logic, and SD-1 diagnosis. Electrical service material also covers battery condition and current draw, retractable-headlamp operation, and the main fuse and relay board.

Fuel, cooling, steering, clutch-hydraulic, and self-leveling-suspension work involves pressurized systems and specified fluids. Internal engine and timing repair depends on the complete factory sequence, indexing checks, and final verification—not isolated torque or clearance figures.

Examples of Crankshaft and Oil-Pressure Specifications

For the F 116 B engine, the crankshaft inspection data specifies installation end float of 0.100–0.289 mm and a wear limit of 0.30 mm.

The lubrication chapter specifies normal oil pressure of 5.5–6.5 bar at 6,000 rpm with the oil at 100°C (212°F).
