Detailed Technical Manual for Ferrari F40 Supercar (1992) – 115 Pages | Factory Grade

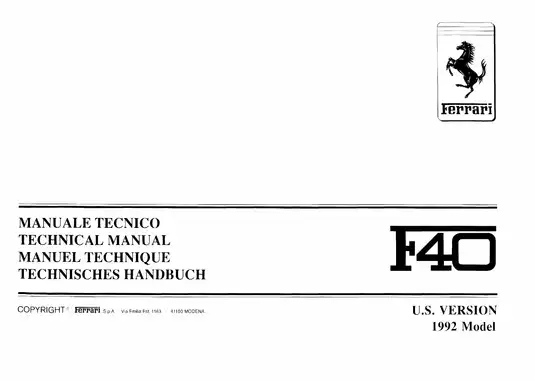

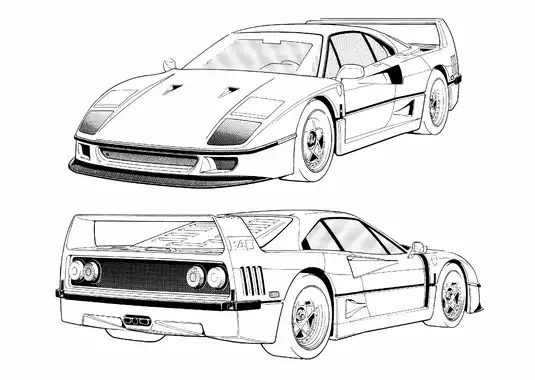

FERRARI F40 U.S. VERSION TECHNICAL MANUAL

Maintaining the legendary F40's mechanical integrity requires adherence to precision factory standards defined during its 1992 production run. Master Ferrari technicians utilize these specific directives to preserve the high-performance capabilities of the F 120 D 040 longitudinal V8 powerplant and its sophisticated twin-turbocharged systems. Specialized oversight for the 90° V8 engine ensures that every horsepower is accounted for while protecting the vehicle's historic and financial value.

Document Logistics & Metadata

• Total Pages: 115 Pages
• Print/LIT Number: cat. 660/91 | cod. 95990128-n
• Publication Date: 1992 Model Year
• File Format: High-Resolution PDF

Expert Asset Protection & ROI

• Standardized Calibration: Eliminate guesswork by using factory-verified torque and pressure values for the dry-sump lubrication and pressurized cooling systems.
• Component Longevity: Adhere to specific 1,200–1,500 mile initial checks and 7,500-mile recurring service intervals to prevent premature wear.
• Valuation Retention: Documented maintenance performed to official factory specifications is critical for the long-term appreciation of this limited-production supercar.
• Operational Safety: Follow strict protocols for high-temperature components, including turbocharger cool-down periods and catalytic converter overheat warnings.

Compatibility & Technical Coverage

• Primary Model: Ferrari F40 (U.S. Version)
• Applicable Years: 1992 Model Year
• System Focus: Full technical oversight for the Weber-Marelli ignition-injection architecture and IHI RHB 53 LW turbocharging units.
• Actionable Variants: Explicitly covers the U.S. model configuration including specific emissions and safety standard revisions (F.M.V. Standard 115).

HIGH-PERFORMANCE CALIBRATION & SYSTEM LOGIC

Technical Benchmarks & Maintenance Data

Assembly Schematics & Visual Quality

• Engine Sectionals: High-resolution longitudinal and horizontal cross-sections of the F 120 D engine family.
• System Blueprints: Detailed layouts for the dry-sump lubrication circuit, cooling flow paths, and pulse-air injection systems.
• Drive Interface: Visual guides for the 5-speed manual transaxle and the lamellar self-locking differential assembly.
• Precision Zoom: Technical illustrations allow for clear identification of sensor locations, including the T.D.C., detonation, and oxygen sensors.

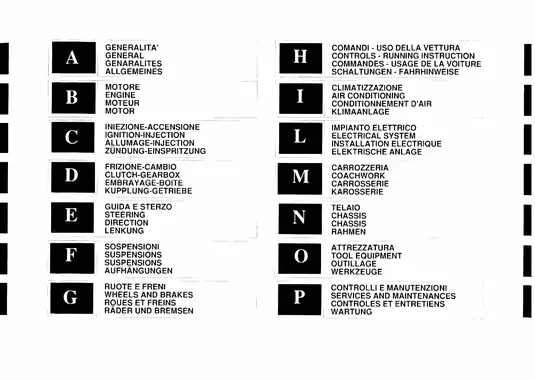

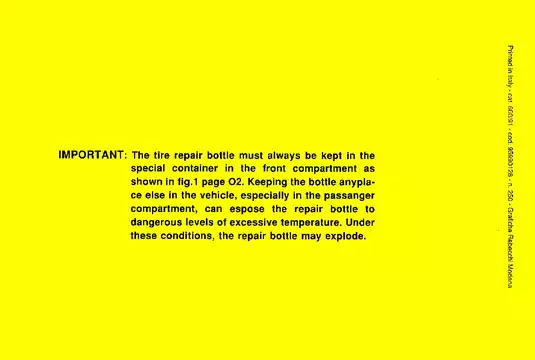

Master Service Index

• Section A: General Identification, Dimensions, and Fluid Capacities.
• Section B: Engine Overhaul, Timing Synchronization, and Lubrication.
• Section C: Weber-Marelli Ignition-Injection & Turbocharging Systems.
• Section D: Twin-Plate Clutch & 5-Speed Gearbox Maintenance.
• Section E/F: Rack and Pinion Steering & Independent Suspension Alignment.
• Section G: Braking System Hydraulics & Light Alloy Wheel Specifications.
• Section H: Controls, Instrumentation, and Running Instructions.
• Section I/L/M: Air Conditioning Logic, Electrical Schematics, and Coachwork.

Component Diagnostics & Logic

• Injection-Ignition Analysis: Microprocessor-controlled Weber-Marelli system logic for fuel metering based on throttle position and RPM.
• Turbocharging Feedback: Overboost protection logic and wastegate electrovalve control to maintain the optimum boost curve.
• Thermal Monitoring: Diagnostic interpretation for "SLOW DOWN" warning lights (Cyl 1-4 / 5-8) triggered by catalyst thermocouples.
• Startup Protocols: Strategic 15-second oil circulation procedure for vehicles stored longer than six months to protect turbocharger bearings.

FAQ

What specific thermal monitoring logic is used to prevent catalyst damage on the F40?

The F40 U.S. Version utilizes a dedicated "SLOW DOWN" warning system governed by catalytic converter thermocouples. If the exhaust temperature exceeds the safe threshold, the Weber-Marelli control unit triggers a flashing or steady light for the affected cylinder bank (1-4 or 5-8). Maintaining the system ensures the 90° V8 engine avoids expensive catalyst meltdown or thermal deformation of the composite rear bodywork.

How does the 1992 U.S. manual address valve train precision for the F 120 D 040 engine?

Ensuring peak volumetric efficiency requires setting cold valve clearances to exactly 0.20–0.25 mm for the intake and 0.35–0.40 mm for the exhaust. Adhering to these mechanical benchmarks prevents valve seat recession and ensures the twin IHI RHB 53 LW turbochargers can maintain the target power output of 478 HP without erratic timing fluctuations.

What are the critical lubrication benchmarks for protecting the twin turbocharger bearings?

Technicians must verify a warm oil pressure of 78–92 psi (5.5–6.5 bar) at 6000 RPM using the specified Agip Sint 2000 10W40 lubricant. Additionally, the manual dictates a 15-second "dry-run" circulation procedure for vehicles that have been stationary for over six months to ensure the turbocharger shaft journals are fully pressurized before the engine fires.

Does this technical documentation cover the specialized 1992 U.S. market emissions equipment?

Yes, the manual explicitly details the unique U.S. Version hardware, including the pulse-air injection system and the carbon canister evaporative circuit required for F.M.V. Standard compliance. It provides the specific diagnostic steps for the Weber-Marelli ignition-injection system, which is calibrated to maintain an idle speed of 1000 ± 50 RPM while meeting North American regulatory standards.

What is the maximum wear tolerance for the F40’s dry twin-plate clutch assembly?

The clutch service data specifies a total friction material thickness limit, where the drive plates must be replaced if they wear down by 1.2–1.3 mm from their original thickness. Monitoring this clearance is vital for preventing slippage during high-torque transitions (424 lb-ft at 4500 RPM) and protecting the integrity of the 5-speed manual transaxle.
