Manual: Yamaha YZF-R1 / YZF-R1S / YZF-R1SC motorcycle Service & Owner's Manuals, covers 2004
Manual Preview

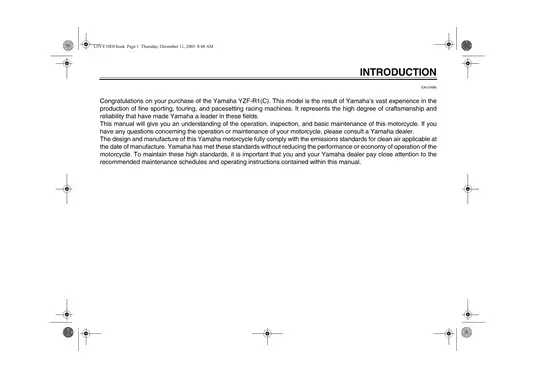

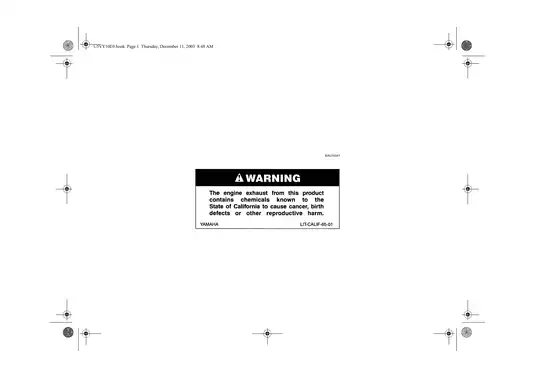

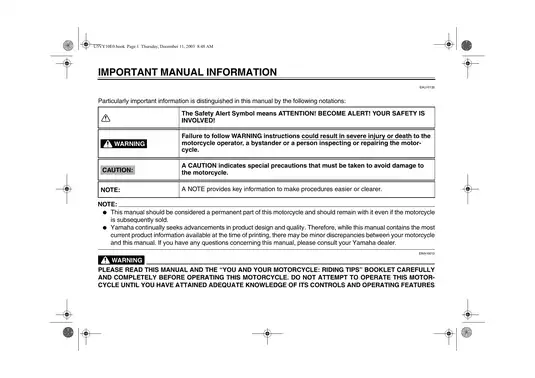

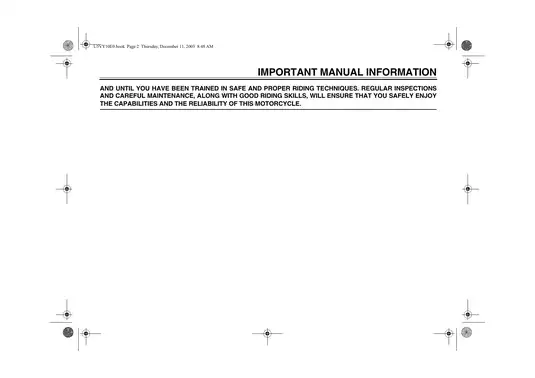

Sample pages from the Manual: Yamaha YZF-R1 / YZF-R1S / YZF-R1SC motorcycle Service & Owner's Manuals, covers 2004 manual
Purchase & Download
Models Covered & Key Technical Specifications
- Yamaha YZF-R1S (2004)
- Yamaha YZF-R1SC (2004)
- Yamaha YZF-R1 (2004)
Professional Workshop Service Manual & Technical Specifications
2004 Yamaha YZF-R1 / YZF-R1S / YZF-R1SC Comprehensive Service & Owner's Collection
Maximize the performance and longevity of your liter-class superbike with this definitive professional-grade manual collection. Specifically compiled for the 2004 production year, this set provides the exact technical data used by Yamaha factory-trained technicians to maintain the legendary YZF-R1 series.
Models Covered in This Manual
This collection is tailored specifically for the 2004 model year, including the following model combinations:
- Yamaha YZF-R1S (2004)
- Yamaha YZF-R1SC (2004)
- Yamaha YZF-R1 (2004)
The "C" designation (YZF-R1SC) identifies the California-specific model, which includes specialized evaporative emission control systems. Whether you are riding the standard R1 or the California variant, this manual provides the specific diagrams and adjustment procedures required for your exact machine.
Essential Identification Data
To ensure you are using the correct data for your specific motorcycle, this manual provides guidance on locating and identifying your vehicle’s unique codes:
- Vehicle Identification Number (VIN): Located on the right side of the steering head pipe.
- Engine Serial Number: Stamped on the crankcase.
- Model Code: 5VY4 (for YZF-R1 / YZF-R1S) and 5VY5 (for YZF-R1SC).
- LIT Number: LIT-11616-17-55 (Service Manual) and LIT-11626-17-55 (Owner's Manual).
What’s Included in This Professional Package
You are not just getting a basic guide; this is a complete technical library consisting of:
- Official Service Manual: The "bible" for deep mechanical repair, covering engine teardowns, transmission overhaul, and complex fuel injection troubleshooting.
- Owner's Manual: Essential for daily operation, dashboard settings, and standard maintenance schedules.
- Illustrated Parts Catalogue: Critical for finding the exact OEM part numbers and viewing "exploded" assembly diagrams to see how components fit together.
Technical Highlights and Features
- Advanced Fuel Injection: Detailed mapping and troubleshooting for the 2004 fuel injection system, replacing the carburetors of previous generations.
- Engine Overhaul: Step-by-step instructions for the 998cc liquid-cooled 20-valve DOHC engine, including precise valve clearance specs and piston ring end gaps.
- Chassis & Suspension: Full tuning guides for the 43mm inverted front forks and the rear shock absorber to optimize your track or street handling.
- Electrical Diagnostics: Comprehensive wiring diagrams for the YZF-R1S/SC, including the ECU, immobilizer system, and digital multi-function meter.
- Cooling System: Procedures for the high-efficiency radiator and water pump to keep your R1 running cool under high-stress conditions.
Detailed Table of Contents
GENERAL INFORMATION
- Motorcycle Identification (VIN and Engine SN)
- Preparation for Removal and Replacement Parts
- Gaskets, Seals, Bearings, and Oil Seals
- Special Tools for Engine and Chassis Service
SPECIFICATIONS
- Detailed Engine, Chassis, and Electrical Specs
- Lubrication Points and Fluid Capacities
- Comprehensive Tightening Torque Tables
PERIODIC INSPECTION AND ADJUSTMENT
- Maintenance Intervals Chart
- Valve Clearance Adjustment
- Throttle Cable Free Play and Spark Plug Inspection
- Engine Oil and Filter Replacement
- Drive Chain Adjustment and Lubrication
- Tire Inspection and Brake Fluid Service
ENGINE OVERHAUL
- Engine Removal, Disassembly, and Inspection
- Cylinder Head, Camshafts, and Valves
- Clutch and Transmission Detailed Repair
- Crankshaft and Piston Installation
COOLING & FUEL SYSTEMS
- Radiator and Water Pump Service
- Fuel Tank, Fuel Pump, and Injector Inspection
- Air Induction System (AIS)
CHASSIS & BRAKES
- Front and Rear Wheel Removal and Bearing Service
- Brake Caliper and Master Cylinder Overhaul
- Front Fork Disassembly and Reassembly
- Rear Shock and Swingarm Maintenance
ELECTRICAL SYSTEM
- Main Wiring Diagrams
- Battery Charging and Starter System Troubleshooting
- Ignition System and Lighting (Headlight/Tail Light)
- Switch Testing and ECU Diagnostics
APPENDICES
- Comprehensive Troubleshooting Charts
- Service Data Summary
- Standard Torque Values for All Fasteners
This manual is the ultimate resource for the DIY mechanic and the professional technician alike. By performing your own maintenance, you ensure the highest quality of work is performed on your Yamaha YZF-R1 while saving significantly on dealership labor costs.
