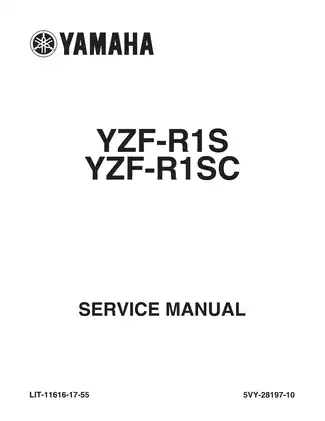

2004–2006 Yamaha YZF-R1S, YZF-R1SC Service Manual (P/N LIT-11616-17-55)

• Coverage is document-specific: the Yamaha factory service manual is titled YZF-R1S/YZF-R1SC and identifies 5VY4 (USA) and 5VY5 (California). The included model-year 2005 Parts Catalogue covers YZFR1T (5VYA/U49) and YZFR1TC (5VYB/UCA) and references the same service-manual P/N.

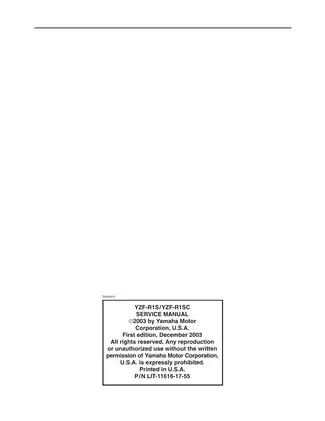

• 506-page PDF set — 457-page Yamaha Service Manual, first edition December 2003, P/N LIT-11616-17-55, plus a 49-page 2005 parts catalog with exploded parts plates and numbered callouts.
• Covers engine removal and installation, camshaft and timing-chain service, cylinder-head and valve work, clutch and starter-clutch repair, crankcase splitting, piston/connecting-rod/crankshaft inspection, and six-speed transmission/shift-drum service.
• Details chassis repair through wheel and brake-disc inspection and static balancing, master-cylinder and caliper overhaul, hydraulic brake bleeding, front-fork disassembly and reassembly, steering-head service, swingarm removal, and drive-chain inspection.
• Provides fuel-injection diagnosis using the ECU self-diagnostic and meter diagnostic modes, fault-code and fail-safe tables, injector and fuel-pump checks, throttle-body synchronization, EXUP testing, and throttle-position/sub-throttle-position sensor adjustment.
• Includes the Cooling System Diagrams, Engine Oil Lubrication Chart, California canister cable-routing views, fuel-injection wiring diagram, Air Induction System Diagrams, and the full YZF-R1S/YZF-R1SC wiring diagram.

Factory Repair Procedures and System Coverage

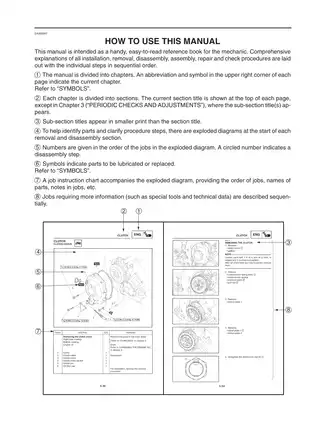

The nine chapters cover General Information, Specifications, Periodic Checks and Adjustments, Chassis, Engine, Cooling System, Fuel Injection System, Electrical System, and Troubleshooting. The layout is built around factory repair work, not routine maintenance alone. Exploded service diagrams and job charts introduce the removal and disassembly sections, while fault tables and troubleshooting charts support diagnosis.

Periodic service sections cover valve-clearance adjustment, throttle-body synchronization, exhaust-gas-volume adjustment, compression and oil-pressure testing, EXUP cable adjustment, coolant service, steering-head checks, suspension settings, battery charging, and brake-system bleeding. California-only material identifies the evaporative-emission canister, rollover valve, and related hose routing.

Engine coverage continues from top-end service into a full lower-end teardown. The manual documents camshafts and timing chain; cylinder head, valves, guides, seats, springs, and lifters; generator and starter clutch; clutch and shift shaft; the combined oil/water pump; crankcase; pistons and connecting rods; crankshaft; and the transmission, shift drum, and shift forks. Inspection limits, bearing color codes, matched-bearing position checks, component-specific torque tables, and multi-stage or angle-tightening procedures are placed with the related repair operations.

Several cautions matter during internal engine work. Uneven camshaft-cap bolt handling can damage the cylinder head, caps, and camshafts, while mixing matched big-end or crankshaft-journal bearings can lead to incorrect clearances and engine damage. Fork repair notes also stress keeping contamination out and protecting the inner tube and seal surfaces.

Chassis sections go well beyond parts removal. Front and rear brake coverage includes pad replacement plus master-cylinder and caliper disassembly, inspection, assembly, installation, and hydraulic bleeding. The front-fork chapter covers internal teardown, seal and bushing service, oil filling, reassembly, and installation. The manual treats the gas-charged rear shock as a sealed assembly: handling, removal, inspection, installation, and disposal are covered, but internal shock rebuilding is not.

Fuel-injection diagnosis uses the motorcycle’s meter and ECU functions. The manual explains stored fault codes, fail-safe behavior, diagnostic-code selection, sensor-output monitoring, and actuator checks for systems such as pressure and temperature sensors, ignition coils, injectors, the EXUP servo, and the sub-throttle servo. Electrical chapters follow ignition, starting cut-off, starter motor, charging, lighting, signaling, cooling-fan, fuel-pump, and self-diagnosis circuits from schematic to component testing and fault isolation. A separate troubleshooting chapter covers starting, idle and high-speed performance, shifting and clutch faults, overheating, braking, fork and handling problems, and lighting or signaling failures.

Specifications, Special Tools, and Parts Reference

The specification chapter consolidates general, engine, chassis, and electrical data; tightening-torque tables; lubrication points; fluid capacities; wear limits; clearances; bearing-selection data; and electrical test specifications. A dedicated special-tool section supplies Yamaha and U.S./Canada tool numbers. Examples include the piston-pin puller 90890-01304/YU-01304, fork spring compressor 90890-01441/YM-01441, fork-seal driver 90890-01442/YM-01442, clutch-holding tool 90890-04086/YM-91042, and fuel-pressure adapter 90890-03176/YM-03176.

The 2005 parts catalog adds model-specific exploded plates for parts identification and repair planning, along with regional model codes and factory color and finish abbreviations. It is a parts-reference companion, not a procedure manual. The included set contains the service manual and 2005 parts catalog only; no 2006 supplement, owner’s manual, or assembly manual is included.

Brake hydraulics, fuel-system work, pressurized cooling components, chassis work that requires the motorcycle to be supported, and the gas-charged rear shock all require suitable tools and a secure workspace. Yamaha produced the service manual for dealer technicians and qualified mechanics, so experienced DIY owners should take on only the repair work supported by their training, tools, and workspace.
