2008 Polaris Ranger 700 UTV Service Manual: 4x4 XP, 4x4 Crew & 6x6 (P/N 9921277)

Polaris factory service manual P/N 9921277, published in 2007 for the 2008 Ranger 700 4x4 XP, 4x4 Crew and 6x6, covers scheduled maintenance, diagnosis and mechanical repair.

PDF Navigation, Search and Included Pages

Text search and circuit detail: Main service text supports PDF search, with embedded chapter and procedure bookmarks and an alphabetical index. Some diagram labels are not searchable; small labels in the large chassis and dash wiring diagrams require zooming.

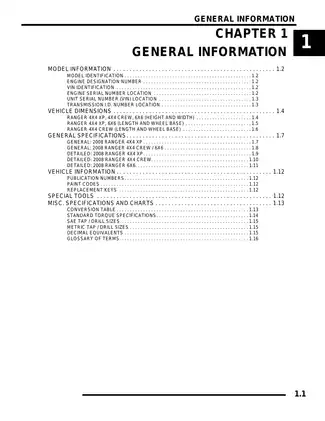

One printable English PDF contains 374 pages, including four opening pages (one blank), seven chapter-end notes pages, a five-page index and seven wiring-diagram pages.

Engine Overhaul and Drivetrain Fault Finding

These selected service topics outline part of the manual’s coverage. Further examples include shift-cable adjustment and electric box-lift actuator diagnosis where equipped.

• Engine repair: Engine removal, cylinder-head disassembly, piston and camshaft inspection, crankcase reassembly, oil-pump priming and cooling-system service.

• Bosch EFI diagnosis: Fuel-pressure testing, injector and sensor checks, TPS testing and initialization, diagnostic blink codes and symptom-based troubleshooting.

• PVT and transmission: Drive-belt inspection, clutch alignment, drive and driven clutch service, transmission removal, internal disassembly and reassembly.

• Final drive: Centralized Hilliard front gearcase diagnosis, propshaft U-joint service, CV joint boot replacement, and separate rear and middle gearcase procedures.

• Steering and suspension: MacPherson strut cartridge replacement, ball-joint service, wheel-bearing replacement, rear A-arm work and 6x6 swing-arm coverage.

• Hydraulic brakes: Caliper disassembly and inspection, pad and disc service, brake bleeding, parking-brake adjustment and configuration-specific rear-caliper procedures.

• Electrical troubleshooting: Wiring diagrams, connector pinouts, instrument-cluster diagnosis, charging-system tests, starter service and circuit-specific troubleshooting flow charts.

Written primarily for certified Polaris Master Service Dealer technicians in a properly equipped shop, this manual assumes knowledge of mechanical theory, tool use and workshop procedures.

Engine Teardown, Lubrication and Cooling

The manual provides factory data for engine disassembly and cylinder-head inspection, including valve-stem dimensions, piston-to-cylinder clearances and camshaft-journal measurements. Exploded views and bolt-tightening patterns support internal repair work, while the Oil Flow Chart helps trace lubrication through the crankcase and engine passages.

Cooling coverage extends to radiator removal, pressure testing, thermostat checks and bleeding. The Periodic Maintenance Chart separates daily checks from scheduled service and identifies severe-use requirements.

Seal-handling notes cover dry installation and warn that servicing the water-pump seal with the gear/stator housing still attached can damage the shaft. Engine reassembly also addresses oil-system priming to prevent internal damage at initial startup.

Because servicing high-pressure fuel systems and lifting heavy drivetrain components carries inherent physical risks, strictly follow all outlined safety precautions to prevent severe injury.

Bosch EFI Tests and Service Limits

Lean running, rich running and erratic-idle troubleshooting are linked to component checks, diagnostic blink codes and the EFI System Break-Out Diagrams. TPS initialization distinguishes zero-offset calibration from the final airflow setting, using tester PU-47082 and regulator 4010264.

Fuel-pump and regulator testing lead to assembly replacement when faulty; these sealed components are not covered as rebuildable units. Internal ECU servicing is also excluded.

Digital Wrench is identified as dealer-only diagnostic software. T-BAP testing requires that software and refers to the separate EFI Diagnostic Software Manual, which is not included.

PVT, Gearcase and Chassis Differences

Step-by-step procedures cover outer CV joint boot replacement, front strut cartridge installation and transmission rebuilding. The transmission troubleshooting checklist helps distinguish linkage or PVT problems from internal gearbox faults before teardown.

PVT maintenance and repair are specified for trained, certified Polaris Master Service Dealer technicians using factory-authorized special tools. Clutch service includes inspection of bushings, rollers, shift weights and sheave surfaces, with alignment and overheating diagnosis.

Centralized Hilliard diagnosis combines coil checks with armature-plate wear inspection. Separate sections address the 4x4 rear differential and the 6x6 middle and rear gearcases. Rear-caliper procedures distinguish Crew applications from XP and 6x6 applications.

Lubricant references cover the front, middle and rear gearcases, alongside wheel-nut, ball-joint and steering fastener torques.

Electrical Tests and Wiring References

If you are tracking down an electrical issue, the manual covers fuse ratings, connector pinouts, stator tests and starter-solenoid checks. The Cooling System Break-Out Diagram, Charging System Testing Flow Chart and Starting System Testing Flow Chart connect circuit measurements with fault isolation.

Chassis wiring sheets are separated by XP, Crew and 6x6 configuration, with a shared dash wiring diagram.

Examples of Engine Torque and Lubricant Data

Engine lubrication data specify approximately 2 U.S. qt (1.9 L) of oil. The engine torque table lists 192 ± 24 in-lb for the crankcase oil-drain bolt.

Cylinder-head data distinguish an initial 35 ± 4 ft-lb setting from a further 90° turn after one minute, with a defined bolt-tightening sequence.

Transmission lubrication data specify 15.2 oz. (450 ml) of Polaris Synthetic AGL, alongside the separate gearcase lubricant requirements.
