Polaris RANGER 500 4X4 EFI 2009 Service Manual (P/N 9921868)

This 284-page Polaris service manual PDF covers the 2009 RANGER 500 4x4 EFI, model codes R09HH50AG and R09HH50AR, with the EH500PLE225 liquid-cooled Fuji single-cylinder engine (the overhaul section also uses EH50PL/EH50PLE). Coverage runs from scheduled service and body access through engine overhaul, Visteon EFI diagnosis, PVT clutch work, transmission and final-drive repair, brakes, suspension, and electrical testing.

• Covers engine removal and in-frame service, cylinder-head and valve-train disassembly, automatic compression-release inspection, piston/cylinder work, crankcase separation, oil-pump and counterbalancer service, cam timing, reassembly, oil-pump priming, and cooling-system bleeding.
• Provides Visteon EFI fault isolation using blink codes, fuel-pressure testing, injector and ignition-coil checks, sensor tests, TPS adjustment, ECU service guidance, and Digital Wrench diagnostic references.
• Details Polaris Variable Transmission (PVT) belt service, alignment/offset/center-distance checks, drive and driven clutch teardown, spider and bushing service, transmission removal and internal overhaul, shift-cable adjustment, and post-repair troubleshooting.

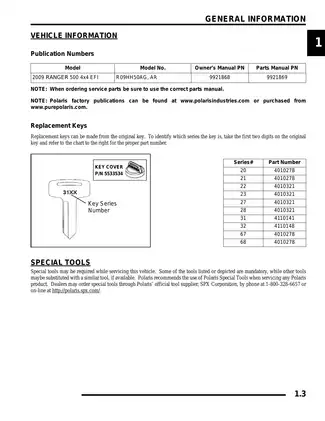

• Includes Centralized Hilliard front-gearcase AWD diagnosis and backlash setup, front and rear drive-shaft/CV-boot repair, propshaft U-joint service, rear differential lock/unlock service, hydraulic brake repair, A-arm and ball-joint work, shock service, and cargo-box/body removal.

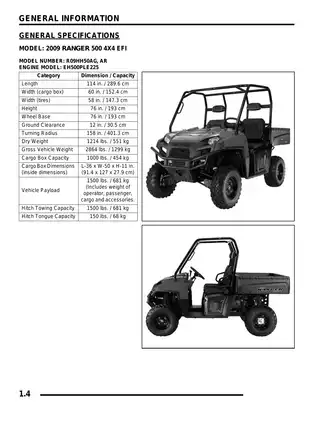

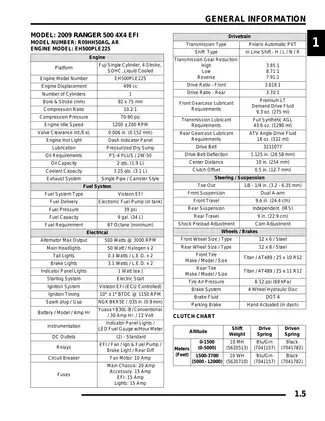

• Supplies component-specific torque tables, wear limits, clearances, fluid and lubrication data, electrical test values, pressure-test specifications, exploded views, diagnostic flowcharts, and four model-specific wiring-diagram sheets.

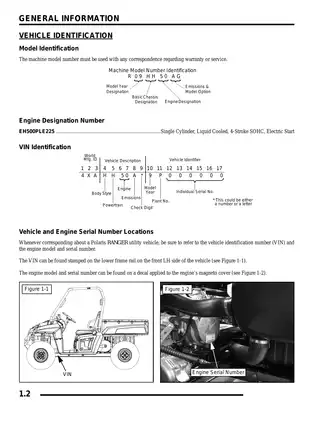

Manual Content Breakdown

The EH500PLE225 engine coverage is unusually detailed. It identifies which components can be serviced with the engine still in the frame and which lower-end repairs require removal. Cylinder-head work includes cam-chain tensioner and rocker inspection, camshaft and automatic compression-release service, valve and guide measurement, valve-seat reconditioning, valve sealing tests, assembly, and final clearance adjustment. The lower-end sections continue through cylinder inspection and honing, piston and ring service, one-way valve and oil-pump work, crankshaft and counterbalancer inspection, bearing replacement, shaft end-play adjustment, crankcase assembly, and camshaft timing.

Cooling and lubrication are treated as repair systems rather than simple maintenance items. The manual includes oil-pressure testing, the EH50PL oil-flow diagram, oil-pump inspection and priming, cooling-system pressure tests, radiator removal, coolant bleeding, and water-pump mechanical-seal replacement. The seal can be replaced with the engine installed when the specified puller and installation tools are used.

The Visteon EFI chapter maps the ECU, fuel pump/regulator, fuel rail, injector, throttle body, CPS, MAP, IAT, IAC, TPS, and engine-temperature sensor. It covers quick-connect fuel lines, initial fuel-system priming, pump and sender tests, injector replacement, sensor checks, TPS testing and adjustment, ignition-coil tests, MIL blink-code retrieval, and troubleshooting for lean, rich, and poor-idle conditions. Digital Wrench and SmartLink are identified as dealer-only diagnostic resources, while the publication still provides manual tests and blink-code routing for shops and experienced owners without that software. Fuel pressure must be relieved before opening the high-pressure system.

Drivetrain coverage extends well beyond fluid changes. The PVT chapter explains clutch operation, overheating diagnosis, belt inspection, clutch alignment, offset and center distance, and internal drive/driven clutch repair. The transmission chapter covers shift-lever and cable work, removal, case disassembly, internal inspection, reassembly, installation, and a checklist for separating linkage faults from internal transmission problems. Final-drive procedures cover bearing carriers, propshafts, U-joints, CV joints and boots, the Centralized Hilliard front gearcase, AWD diagnosis, ring-gear backlash, and the rear differential's lock/unlock mechanism.

The brake and chassis chapters include master-cylinder and pedal removal, hydraulic bleeding and fluid change, parking-brake service, front and rear caliper overhaul, pad and disc inspection, and brake burnishing. Body and suspension coverage includes cargo-box and panel removal, steering assembly views, A-arm replacement, ball-joint and stabilizer-bar service, and shock replacement. Electrical procedures include switch and solenoid checks, cooling-fan bypass diagnosis, charging and starting flowcharts, starter-motor overhaul, and electric box-lift actuator diagnosis if equipped.

A useful scope limit is stated for the rear gearcase: the pinion assembly is not intended to be disassembled, and pinion/ring-gear shimming data is not provided. Damage in that area calls for assembly replacement rather than an unsupported rebuild.

Specification and Reference Data

Reference material includes periodic maintenance charts, lubricant tables, component quick-reference views, torque sequences, inspection limits, shaft and bearing clearances, pressure-test data, electrical test specifications, clutch setup data, alignment information, and fluid capacities.

Named visual references include the EH50PL oil-flow diagram, EH50PL engine and cylinder-head exploded views, camshaft timing illustration, EFI system and fuel-tank/fuel-flow views, Centralized Hilliard front-gearcase view, transmission exploded view, brake-system views, the two-page chassis wiring diagram, the dash wiring diagram, and the breakout wiring diagram.

Representative special-tool callouts include the Fuel Pressure Gauge Kit PU-43506-A with adaptor PV-48656, TPS Tester 2201519, Water Pump Mechanical Seal Puller 2872105, Drive Clutch Spider Removal and Install Tool 2870341, and Axle Boot Clamp Tool PU-48951.

Several assembly cautions are especially important. Cam timing must be set from the single TDC mark, not the advance marks, or serious engine damage can result. The automatic compression-release spring must not be pre-wound one full turn, or the mechanism may not disengage after start-up. During in-frame water-pump seal repair, the puller must remain parallel to the shaft; side-loading can bend the shaft and turn the job into engine removal and crankcase separation.
