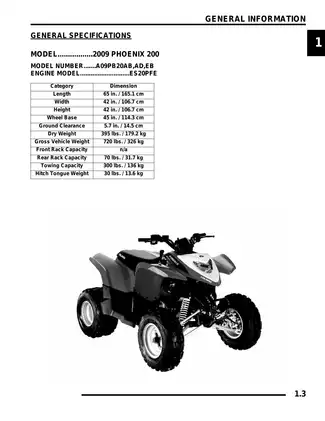

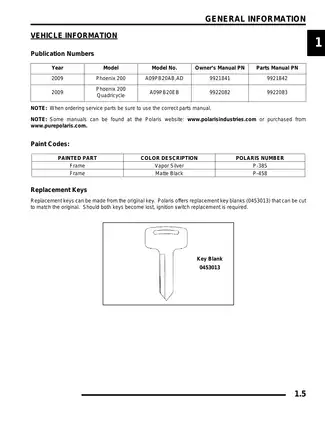

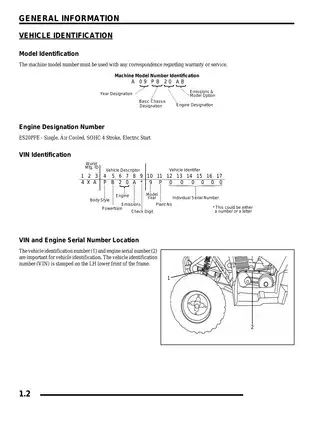

2009 Polaris Phoenix 200 & Quadricycle ATV Service & Repair Manual (P/N 9921840)

The 2009 Polaris Phoenix 200 service and repair manual, P/N 9921840, covers the standard ATV and Phoenix 200 Quadricycle with the ES20PFE engine. A dedicated Quadricycle chapter addresses its different braking system and mechanical speedometer drive.

• Engine repair: Engine removal and installation, cylinder-head and valve service, piston inspection, crankcase disassembly, and camshaft timing procedures.

• Fuel system: Keihin carburetor cleaning, float-height adjustment, needle-and-seat leak testing, and fuel-mixture troubleshooting, with altitude and temperature jetting charts.

• CVT and transmission: Drive and driven clutch service, drive-belt replacement, internal transmission inspection, output-shaft shimming, and shift-detent service.

• Steering and final drive: Steering-knuckle and ball-joint service, A-arm and shock replacement, hub-bearing work, rear axle inspection, and gearcase rebuilding.

• Brake systems: Front hydraulic caliper service and bleeding, standard rear drum-brake repair, and separate Quadricycle rear disc-brake procedures.

• Electrical diagnosis: CDI ignition, Electronic Throttle Control (ETC), stator and charging tests, starter fault-finding charts, and the Phoenix wiring diagram.

This manual suits technicians familiar with ATV engine measurements and electrical testing; Polaris specifies trained, certified Master Service Dealer technicians for CVT maintenance and repair.

Maintenance, Engine Repair, and Camshaft Timing

Daily pre-ride inspections and periodic lubrication charts accompany hour-, calendar-, and mileage-based service schedules. Maintenance procedures cover air-filter servicing, oil and filter changes, valve-clearance adjustment, and transmission and rear gearcase lubrication.

Engine inspection: Cylinder-head warpage checks, valve-seat reconditioning, cylinder honing, piston-ring measurements, and bearing inspection are documented with service limits and component-specific torque data. Engine specifications include the compression ratio, and an Oil Flow Diagram illustrates the lubrication passages.

Camshaft timing is illustrated separately for work with the stator housing removed or installed. The compression-test notes explain why a faulty automatic decompressor can produce abnormally high readings, helping avoid a misleading diagnosis of cylinder condition. Cylinder-leakage testing is also covered.

Flywheel service notes warn that damage to the crankshaft oil-passage plunger can cause loss of oil pressure and severe engine damage. Crankshaft internals are not serviceable, and the oil pump is replaced as an assembly.

Carburetor Service and Fuel-System Diagnosis

The carburetor exploded view and Throttle Opening vs. Fuel Flow chart show how the pilot, needle, and main circuits relate. Cleaning, float-bowl draining, fuel-level testing, and rich-, lean-, and poor-idle troubleshooting are included.

The fuel-mixture adjustment procedure identifies the D-shaped carburetor adjustment screwdriver PA-47361.

CVT, Transmission, and Rear Gearcase

CVT coverage extends to altitude-based clutch-weight charts, sheave inspection, driven-clutch bearing replacement, belt wear limits, and overheating diagnosis.

The driven-clutch section flags loose torque-limiter components during removal and documents their orientation for reassembly; this assembly protects the transmission from damage.

Gear setup: Transmission output-shaft shimming sets pinion depth and provides no backlash adjustment. Rear gearcase assembly has a separate bevel-gear backlash shimming procedure, supported by an exploded view. The transmission section identifies Shaft Collar Tool PA-47309.

Steering, Suspension, and Quadricycle Brakes

Chassis procedures include steering-post assembly, tie-rod inspection and toe alignment, swingarm pivot setup, and rear axle runout checks.

Brake variants: The standard Phoenix uses front hydraulic discs and a cable-operated rear drum. The Quadricycle chapter covers foot-pedal operation of the front and rear hydraulic discs, its mechanical parking brake, rear caliper removal, and caliper-mount plate service. Caliper exploded views accompany the brake repair material.

The Quadricycle speedometer section explains its transmission-driven mechanical gear and cable arrangement. Brake, fuel-system, and spring-loaded clutch work require the manual's specified safety precautions and protective equipment.

Ignition, Charging, and Starter Diagnosis

Electrical coverage includes ignition-coil resistance checks, CDI and pulse-coil output tests using Peak Reading Adapter PV-39991, charging-system break-even testing, and starter-circuit voltage-drop diagnosis. Separate battery sections distinguish sealed low-maintenance and conventional types.

Diagnostic flowcharts cover ignition, charging, and starter circuits. The final wiring sheet includes wire colors, splice connections, connector views, and a chassis wire-termination table.

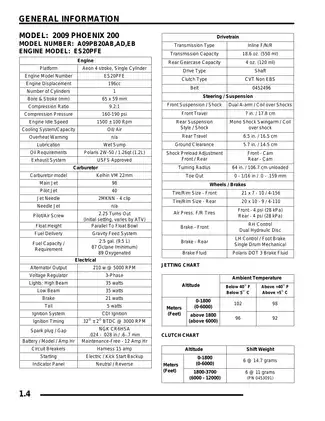

A Preview of Ignition and Alternator Specifications

These electrical values are a small selection of the reference specifications supplied with the manual's diagnostic material.

Ignition timing is listed as 32° ± 2° BTDC at 3000 RPM. The maintenance chapter explains that timing is CDI-controlled and has no adjustment procedure.

Alternator output is specified as 210 watts at 5000 RPM, alongside the lighting-load and voltage-regulator specifications.

PDF Search, Chapter Bookmarks, and Diagram Detail

Search and schematic viewing: Chapter text is searchable, with embedded bookmarks for all ten chapters and the wiring diagram. Labels within the main wiring sheet are not searchable and need zooming for comfortable reading; the RPM-limiter illustration has faint lines and softer lettering.

One printable English PDF contains 205 pages: 204 chapter pages, including eight Notes pages, plus one wide-format wiring diagram. The Quadricycle chapter is included in this same manual.
