Polaris PRO X 440/600/700/800 Snowmobile Service Manual, 2002–2003 (P/N 9918053)

309 Pages • ZIP Download: Printable PDF • 34.07 MB

5.0starstarstarstarstar(1)
$17.35 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Polaris Models Covered & Key Technical Specifications

Models: 440 PRO X Fan, 440 PRO X, 600 PRO X, 700 PRO X, 800 PRO X

Models & Model Codes:

440 PRO X Fan — S03NX4FS; engine EC45PM040; P-85 driven clutch.

440 PRO X — S03NX4CS; TEAM roller driven clutch.

600 PRO X — S03NX6ES; engine S2392-6044PA6E; TEAM roller driven clutch.

700 PRO X — S03NX7CS; engine S2378-7070PA7C; TEAM roller driven clutch.

800 PRO X — S03NX8CS; TEAM roller driven clutch.

Sub-models / Variants: Liquid, Fan Cooled, PRO X Fan

Trade Names: Polaris PRO X, Liberty

Model Years: 2002–2003

Drive system: Type 3 variable-speed belt drive with P-85 drive clutch.


  • Engine displacement: 438 cc to 794 cc

  • Bore size range: 65.5 mm to 85 mm

  • Stroke range: 64 mm to 70 mm

  • Engine engagement speed: 3500–5500 RPM

  • Flywheel torque: 60–90 ft-lbs (83–124 Nm)

Polaris Manual Features & Selected Content Preview

The Polaris High Performance Snowmobile Service Manual (P/N 9918053), copyright 2001, provides factory service information for the 2003 440 PRO X Fan, 440 PRO X, 600 PRO X, 700 PRO X, and 800 PRO X snowmobiles.

Searchable Service Text and Bookmarked Chapters

Text search, navigation, and diagram detail: Main service text is searchable, but many wiring-diagram labels are not. Nine working bookmarks link to the chapter overview and eight sections. Small wiring labels are readable when enlarged; rotating the wiring pages also makes them easier to follow.

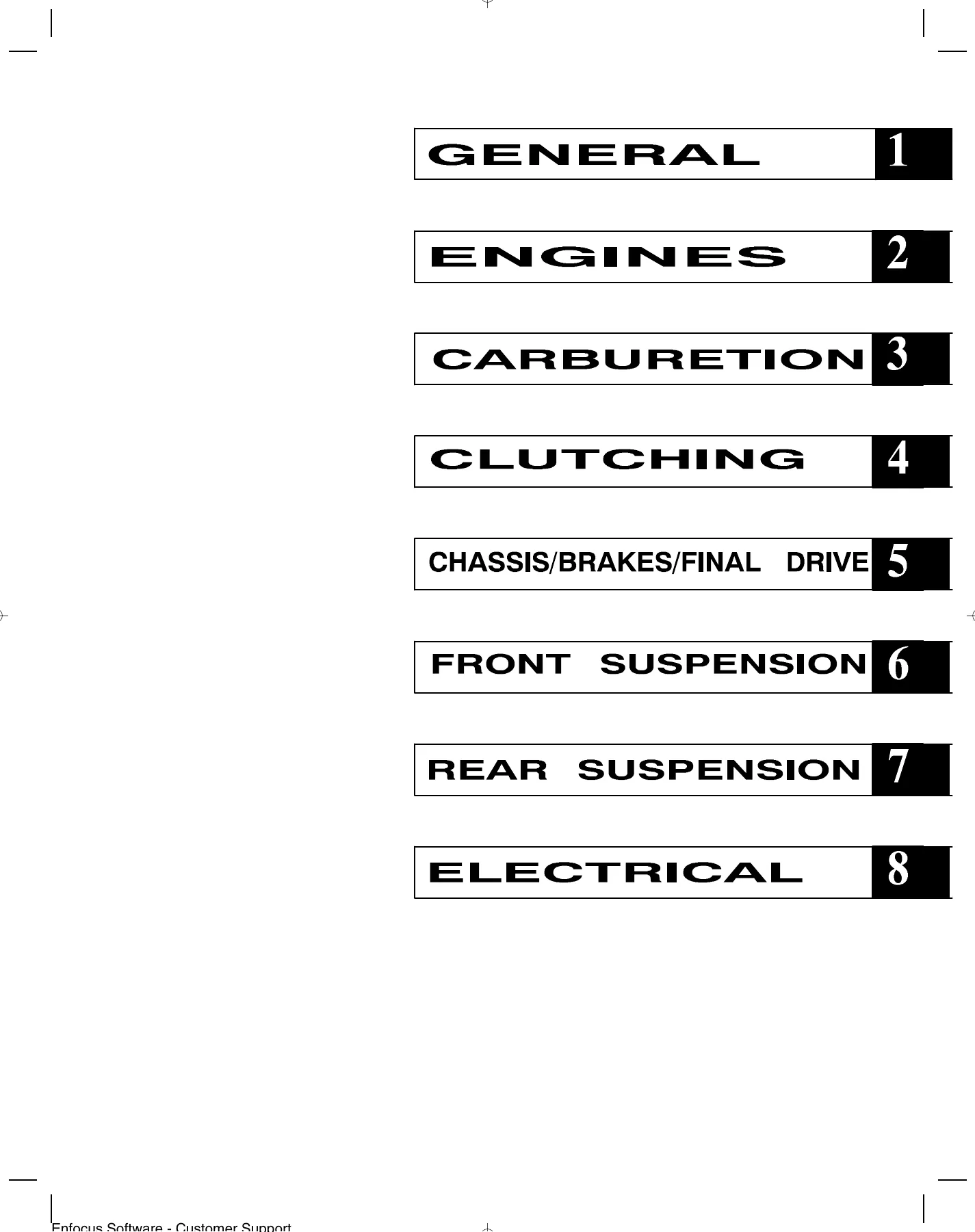

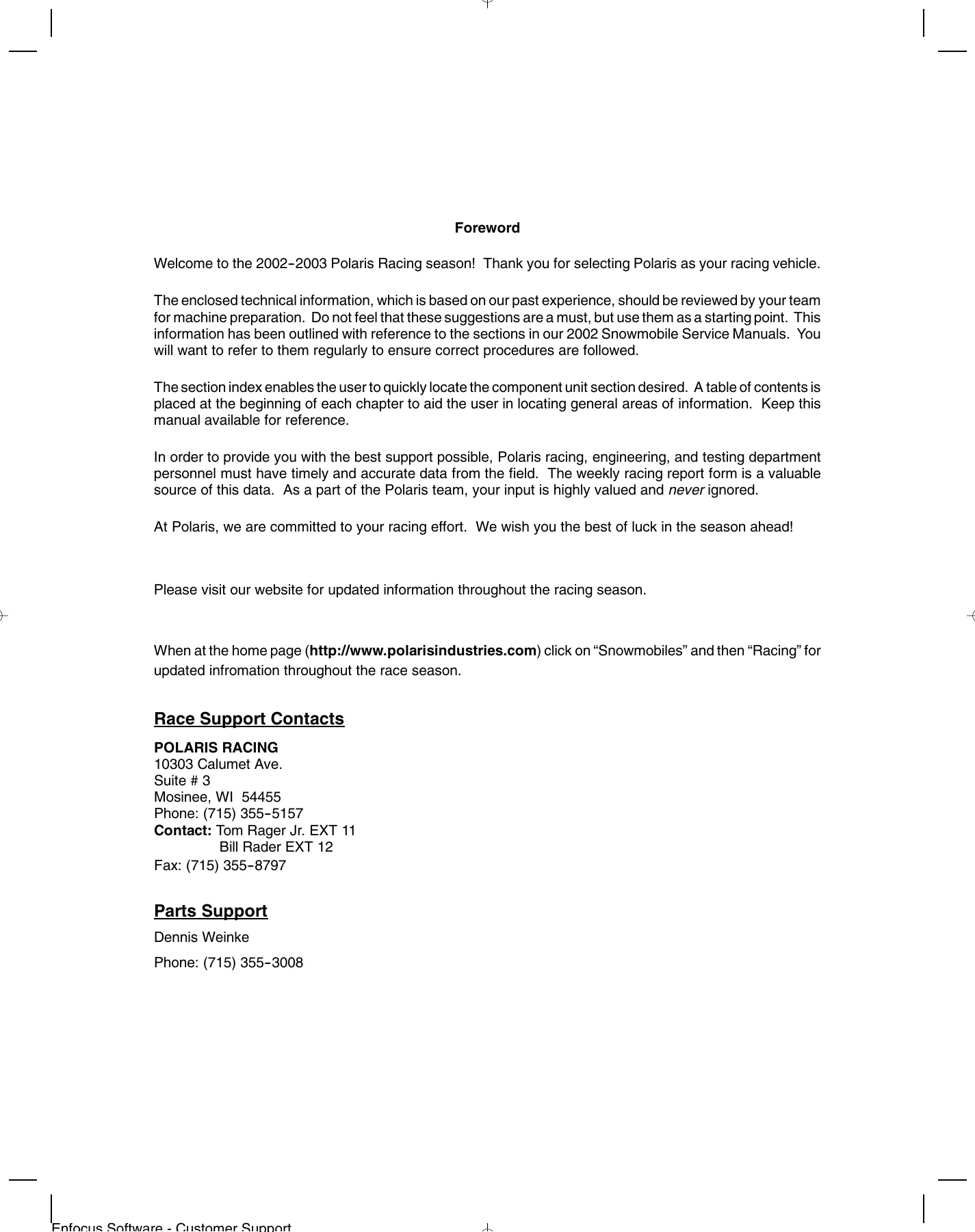

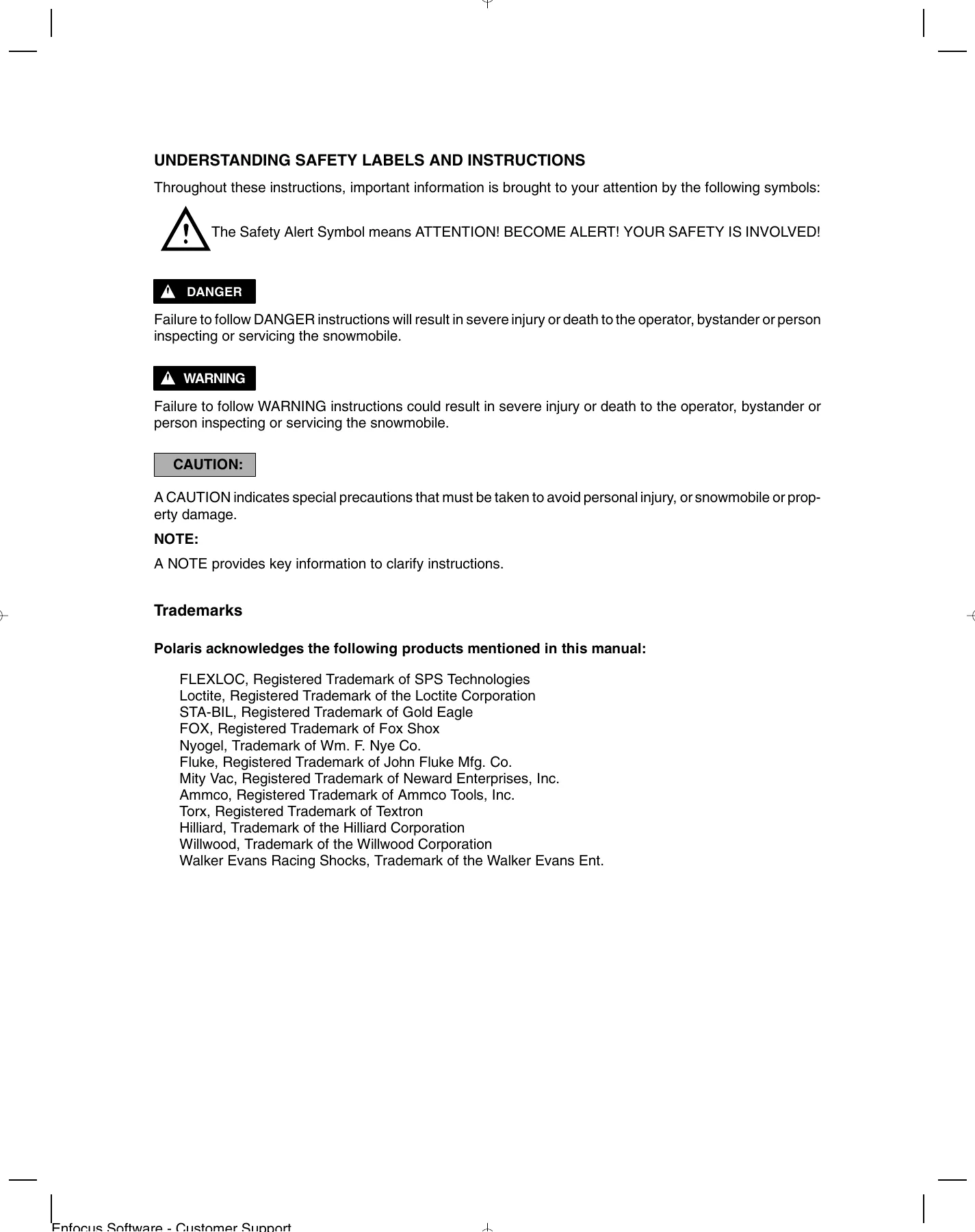

The ZIP download contains one printable PDF with 309 pages: 281 chapter pages, two cover pages, three introductory pages, nine contents pages, four alphabetical-index pages, and ten blank pages.


Engine, Drivetrain, Suspension, and Electrical Coverage

The following selected service topics are a preview, not the complete table of contents. Additional material includes track-clip replacement and traction-stud placement guidance.

  • Engine overhaul: Step-by-step teardown, inspection, and assembly for fan-cooled and liquid-cooled engines, including VES service, crankshaft work, lubrication checks, and cooling-system bleeding.
  • Carburetion and fuel delivery: Mikuni carburetor service, synchronization, choke adjustment, fuel-pump checks, leak testing, troubleshooting, and model-specific jetting charts.
  • Clutch service: P-85 and TEAM clutch inspection and rebuilding, spider indexing, shim selection, belt alignment, offset, and belt-deflection procedures.
  • Brakes and final drive: Hydraulic brake service, master-cylinder rebuilding, brake-pad replacement, chaincase work, shaft removal, and track replacement.
  • Steering and suspension: PRO X alignment geometry, camber, spindle and handlebar centering, toe adjustment, rear-suspension setup, and track-tension procedures.
  • Shock rebuilding: Walker Evans and Ryde FX disassembly, inspection, valving, oil filling, bleeding, gas charging, and internal floating-piston specifications.
  • Electrical diagnosis: CDI ignition, timing checks, regulated and unregulated voltage tests, alternator tests, TPS settings, Speed Control Assurance, Dragon operation, and wiring diagrams.

Polaris prepared this manual for technicians working in a properly equipped shop; it assumes mechanical knowledge, suitable tools, and familiarity with snowmobile service.

Engine Rebuilds and the 440 Trail Conversion

Separate procedures address the fan-cooled 440, liquid-cooled 440/600, and 700/800 Liberty twins. Inspection coverage includes piston and cylinder condition, cylinder-head measurements, crankshaft truing and indexing, and piston-wash and spark-plug interpretation.

VES material includes the 440 solenoid-controlled system. Cooling-system exploded views accompany service and bleeding instructions, while oil-pump checks, tightening sequences, wear limits, break-in guidance, and a premix chart support engine assembly and setup. Crankshaft repair is designated for trained Polaris technicians.

For 2003 440 PRO X Liquid trail use, the manual requires Head Kit P/N 2202188, designed for premium 92-octane non-oxygenated fuel. The stock high-compression head requires 110-octane fuel; using the lower-octane fuel without the conversion can damage the engine.

The head kit requires installation by an authorized Polaris dealer and is not legal for ISR-sanctioned racing. Its clutching and jetting recommendations are part of the conversion requirements.

Mikuni Service and Model-Specific Setup Charts

Exploded views identify components in the TMX34, TM38/TM40, and VM34SS carburetor sections. Fuel-circuit explanations, jet and needle information, disassembly, inspection, assembly, synchronization, and troubleshooting connect component condition with fuel-delivery problems.

Altitude and temperature charts provide model-specific jetting and clutch recommendations alongside gearing information. These references help compare an altered sled’s carburetion and drivetrain setup with the factory baseline.

Clutch Tools, Indexing, and Belt Alignment

P-85 drive and driven clutch material and TEAM roller-clutch exploded views accompany spring and weight identification, spider assembly, roller service, and belt-to-sheave clearance information, including the 800 wide-roller application.

Listed tools include alignment tool P/N 2870426, spider jam-nut driver P/N 2870338, and clutch compression and holding tools. The drive-clutch puller chart distinguishes P/N 2872084 for the 440 PRO X Fan from P/N 2872085 for the liquid-cooled models.

The manual assigns clutch repair to authorized, trained Polaris technicians. Lost spider indexing or misplaced shims can affect clutch balance and operation; impact-wrench use can cause incorrect tightening or crankshaft damage.

Hydraulic Brakes, Track Work, and Gas Shocks

Brake coverage extends to Wilwood master-cylinder disassembly and rebuilding, hydraulic-system service, and pad replacement. Rear-suspension removal, chaincase and shaft work, track replacement, and Hi-Fax inspection and replacement address chassis service beyond routine adjustment.

PRO X rear-suspension exploded views support component identification during removal and assembly. Walker Evans and Ryde FX procedures include shock valving, fill and bleed operations, internal floating-piston positioning, and charging information.

Pressurized shocks require the precautions and eye protection specified in the manual. Incorrect piston or shim-stack orientation and overtightening can damage components or alter shock operation.

Ignition Tests, TPS Checks, and Wiring Diagrams

Ignition-timing exploded views and model-specific wiring diagrams cover the 440 Fan, 440 liquid, and 600/700/800 configurations. Voltage and resistance tests, alternator checks, the 440 exhaust-temperature sender, throttle-position sensor procedures, and Speed Control Assurance troubleshooting support fault isolation.

The Dragon ignition section describes a competition-only feature with no benefit for normal trail riding. It warns that excessive use can cause severe engine damage and that elevated exhaust temperatures can ignite flammable materials.

Selected Carburetor and Drive-Belt Test Specifications

The Mikuni TM38/TM40 needle-and-seat inspection specifies a 5 psi leak test with the carburetor inverted and a one-minute observation period. The needle-and-seat assembly is expected to retain pressure, with replacement criteria provided for leakage or seat damage.

The clutching chapter specifies 1 1/4 in (3.2 cm) of belt deflection with both clutches at rest in full neutral. Its illustration identifies the measurement location.
