2005–2007 Polaris Ranger 500 2x4/4x4 UTV Factory Service Manual (P/N 9920851)

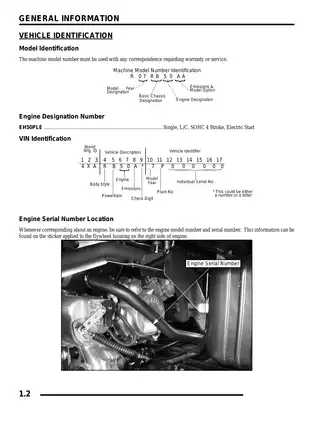

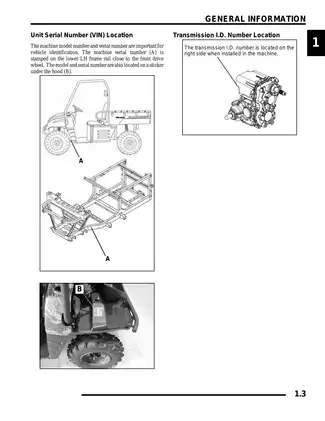

This Polaris factory service manual, P/N 9920851, covers maintenance, diagnostics, and repair for the 2005–2007 Ranger 500 2x4 and 4x4, including carbureted and EFI variants. Its system-based chapters address the EH50PLE engine family, drivetrain, chassis, and electrical equipment.

• Engine and cooling: Cylinder-head and crankcase disassembly, piston and cylinder inspection, valve timing, lubrication-system service, and water-pump mechanical seal replacement.

• Carburetor and EFI diagnosis: Mikuni BST carburetor overhaul, jetting charts, Visteon EFI fuel-pressure testing, sensor checks, throttle-position sensor initialization, and diagnostic blink codes.

• PVT and transmission: Drive and driven clutch service, belt inspection, clutch alignment, and internal transmission gear, shaft, chain, and shift-mechanism procedures.

• Final drive: Hilliard front gearcase service, AWD diagnosis, rear differential procedures, drive-shaft inspection, CV joint boot replacement, and universal-joint service.

• Chassis and brakes: MacPherson strut and independent rear suspension service, steering alignment, brake caliper work, hydraulic bleeding, and parking-brake adjustment.

• Electrical troubleshooting: Power Distribution Module testing, DC/CDI ignition diagnosis, charging and starter tests, EFI circuit breakout diagrams, and model-specific wiring sheets.

Written for technicians with mechanical and electrical service experience, this manual assumes access to the specified special tools and diagnostic equipment. Follow the procedure-specific safety precautions before beginning hands-on work.

Engine Repair and Cooling

The engine chapter distinguishes work possible with the engine installed from procedures requiring removal. Water-pump mechanical seal replacement has an in-frame procedure using a dedicated puller, helping you plan access and tooling before committing to engine removal.

Cylinder, piston, crankshaft, counterbalance, and oil-pump procedures include inspection and assembly data. The EH50PL oil-flow diagram and camshaft timing illustration show lubrication routing and timing relationships.

Compression testing is explained in the context of the automatic decompression system, alongside cylinder leakdown testing. The manual warns that excessive leakdown-test pressure can dislodge crankshaft seals.

Mikuni Carburetor and Visteon EFI Diagnosis

Mikuni BST coverage includes cleaning, float and needle-seat inspection, and temperature- and altitude-related jetting charts. EFI coverage addresses factory fuel-control operation, fuel-pump testing, injector checks, and sensor diagnosis.

Diagnostic access: Blink-code charts and EFI circuit breakout diagrams support fault tracing. Some checks require Polaris Digital Wrench dealer diagnostic equipment; the manual also describes throttle-position sensor testing and initialization.

The EFI fuel pump is serviced with the tank assembly. Altering the factory-set throttle-body idle stop requires replacement of the complete throttle-body assembly.

PVT, Transmission and Gearcase Service

Clutch chapters explain drive and driven clutch inspection, bushing service, belt condition, offset alignment, and PVT troubleshooting charts. The manual specifies authorized Polaris Master Service Dealer technicians and dedicated tools for PVT service.

Transmission coverage includes internal gear, shaft, chain, and shift-fork work. Shift-system troubleshooting helps distinguish linkage problems from faults requiring transmission disassembly.

Final-drive limits: Hilliard front gearcase and rear differential procedures cover distinct assemblies. Rear differential pinion disassembly and ring-and-pinion shimming are outside the documented repair scope; damage to the pinion, its bearings, or the case requires assembly replacement.

CV joint boot and prop-shaft procedures accompany AWD diagnosis. The manual explains why engaging AWD while the rear wheels are spinning can damage drive shafts and the gearcase.

Maintenance, Chassis and Brakes

Maintenance schedules include daily, 25-hour, 50-hour, and 100-hour checks, with adjustments for severe use. Lubrication guidance distinguishes AGL Gearcase Lube for the transmission from Demand Drive Hub Fluid for the front gearcase.

MacPherson strut, independent rear suspension, steering, and toe-alignment procedures accompany body and cargo-box service. Brake coverage includes caliper and pad work, disc inspection, hydraulic bleeding, and parking-brake service.

Electrical Tests and Circuit Diagrams

Electrical chapters separate carbureted-model DC/CDI ignition from EFI systems and their Power Distribution Module arrangements. The PDM block diagram, ignition testing flowchart, and charging-system testing flowchart provide component-specific diagnostic paths.

Starter-motor service and voltage-drop tests address starting faults. Additional procedures cover lighting, cooling-fan circuits, and the optional cargo-box lift actuator.

Valve, Fuel-Pressure and Fastener Specification Preview

Intake and exhaust valve clearance is specified at 0.006 in. with the engine cold and the piston at top dead center on the compression stroke.

The Visteon EFI fuel-pressure test specifies 39 ± 3 PSI during key-on pump activation, providing a defined condition for interpreting the gauge reading.

Crankcase assembly uses a staged tightening sequence with a final specification of 14 ft-lb. The rear hub retaining-nut specification is 110 ft-lb.

Text Search, Bookmarks and Wiring Detail

Search and diagram navigation: The main service text is searchable, while some tables and wiring labels are not searchable text. Embedded bookmarks provide access to chapters and procedures; small wiring-diagram labels require zooming for comfortable reading.

The download contains one printable, English-language PDF with 345 pages. This total includes the cover, chapter guide, four index pages, and seven wiring-diagram sheets.
