Polaris FS/FST 2006–2008 Snowmobile Service Manual (P/N 9921066)

337 Pages • 1 Printable PDF (English) • Download

4.7starstarstarstarstar_half(3)
$18.58 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Polaris Models Covered & Key Technical Specifications

Models: FS Classic, FST Classic, FS Touring, FST Touring, FST Switchback, FST IQ, FST IQ LX, FS IQ Touring, FST IQ Touring, FST IQ Cruiser, FST IQ Switchback, IQ Turbo Dragon, IQ Turbo LX, Turbo Switchback, FS IQ Touring, FST IQ Touring, IQ Cruiser

Models & Model Codes:

FS Classic — S06PD7ES

FST Classic — S06PD7FS, S07PD7FE

FS Touring — S06PT7ES

FST Touring — S06PT7FS

FST Switchback — S06PS7FS, S07PS7FE

FST IQ — S07PP7FS, S07PP7FSA, S07PP7FE

FST IQ LX — S07PD7FS

FS IQ Touring — S07PT7ES, S07PT7EE, S08PT7ES, S08PT7EE

FST IQ Touring — S07PT7FS, S07PT7FE, S08PT7FS, S08PT7FE

FST IQ Cruiser — S07PY7FS, S07PY7FE

FST IQ Switchback — S07PS7FS, S07PS7FE

IQ Turbo Dragon — S08PP7FS, S08PP7FE

IQ Turbo LX — S08PD7FS

Turbo Switchback — S08PR7FS, S08PR7FE

IQ Cruiser — S08PY7FS, S08PY7FE

Sub-models / Variants: Classic, Touring, Switchback, IQ, IQ LX, IQ LX LTD (FST IQ LX LTD: S07PF7FS), IQ Cruiser, IQ Turbo Dragon, IQ Turbo LX, Turbo Switchback

Model Years: 2006–2008 (2006, 2007, 2008)


  • Engine: 749cc, Parallel Twin Cylinder, 8-Valve SOHC, with Counter Balancer

  • FS Engine Model Numbers — Naturally Aspirated: 2006: S3032-7575-PS7E; 2007: S3295-7575-PS7E; 2008: S3473-7575-PU7E

  • FST / Turbo Engine Model Numbers — Intercooled Turbo: 2006: S3033-7575-PS7F; 2007: S3176-7575-PS7F; 2008: S3474-7575-PU7F

  • Drive System: PVT variable-speed belt drive with TEAM driven clutch and PERC 4 reverse chaincase

  • Fuel System: Sequential Fuel Injection

  • Idle RPM: 1450–1550 RPM

  • Fuel Pressure: 43.5 PSI (3.0 bar) base; FST models include Boost pressure

  • Spark Plug Gap: 0.030 in (0.75 mm)

  • Drive Clutch Bolt Torque: 50 ft-lb (68 Nm)

  • Electrical Output: 780 Watts @ 13.5 Vdc

  • Coolant Capacity: 6.0–8.3 liters depending on model

Polaris Manual Features & Selected Content Preview

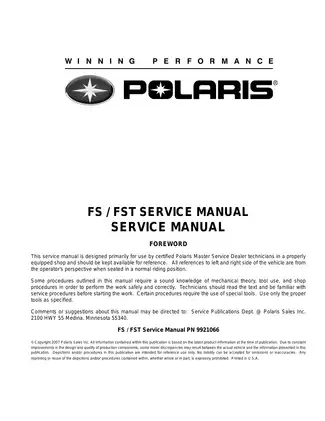

The Polaris FS/FST Service Manual, P/N 9921066, covers the 2006–2008 Classic, Touring, Switchback, and IQ families with naturally aspirated and intercooled turbo engines. The publication table identifies the FST IQ LX LTD, although that version does not receive its own separate Chapter 1 specification sheet.

PDF Search, Bookmarks, and Wiring Detail

Search and diagram navigation: The main text is searchable, and embedded bookmarks provide chapter and subsection navigation. Many illustration labels, including the final wiring diagrams, are not searchable. Small wiring labels on the checked sheets are readable when enlarged; rotating the diagrams also helps with their sideways layout.

One printable English PDF contains 337 pages, including two preliminary pages, four index pages, eight notes pages, and one blank final page.


Engine, EFI, Driveline, and Suspension Service

The following selected coverage highlights outline the main workshop content. Further topics include off-season storage and seat-cover replacement.

  • Specifications and maintenance: Model-specific tables, lubrication schedules, oil and filter changes, valve-lash adjustment, cooling-system bleeding, and track alignment and tension procedures.

  • Engine repair: Step-by-step procedures for engine removal, cylinder-head and valve-train work, crankcase separation, crankshaft and piston service, oil pumps, water pump, and timing-chain installation.

  • Bosch EFI and turbo diagnosis: M7.4.4 specifications, DTC definitions, ECU connector views, fuel-pressure testing, wastegate checks, intercooler inspection, Digital Wrench diagnosis, and controller programming.

  • PVT clutch service: TEAM clutch alignment, belt-wear diagnosis, drive and driven clutch disassembly and assembly, roller inspection, spider indexing, and clutch calibration charts.

  • Final drive and brakes: Chaincase disassembly, reverse components, jackshaft and driveshaft removal, brake bleeding, line replacement, and caliper, pad, and disc procedures.

  • Steering and suspension: Alignment adjustments, IQ and M-10 rear suspension service, Ryde FX and FOX shock rebuilding, valve-stack data, and M-10 ACE component testing.

  • Electrical troubleshooting: Battery and charging tests, relay and safety-switch circuits, PERC 4 reverse controls, MFD circuits, harness routing, and year-specific wiring diagrams.

Written primarily for certified Polaris Master Service Dealer technicians in a properly equipped shop, this manual assumes mechanical knowledge, familiarity with shop procedures, and access to the specified special tools.

Maintenance and Internal Engine Repair

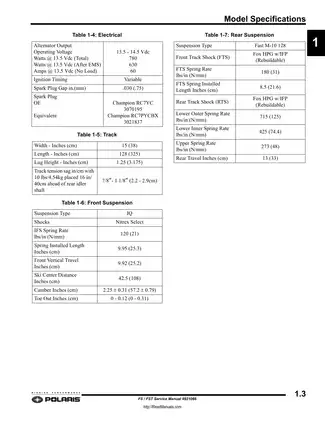

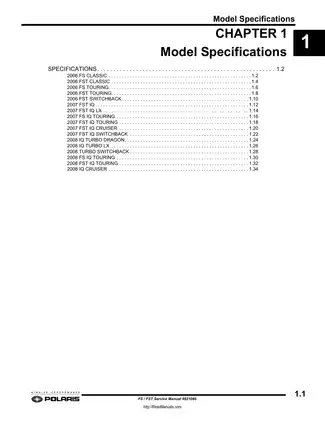

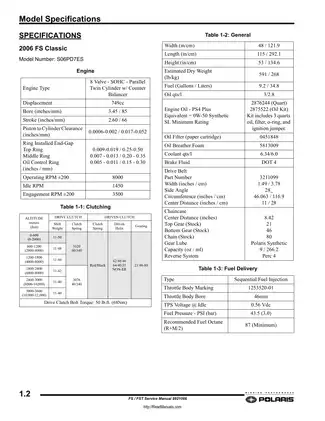

The 133 numbered model-specific tables cover engine data, altitude-based clutching, fuel delivery, electrical systems, gearing, tracks, and suspension setup. Maintenance instructions distinguish routine checks from initial break-in service and later inspection intervals.

Engine access and overhaul: The removal chapter separates work possible with the engine installed from jobs requiring in-chassis suspension or complete removal. Internal repair coverage includes bearing-clearance measurement and selection, component inspection limits, fastener torque patterns, and locating TDC during timing-chain installation.

Exploded views identify the valve train, crankcase, pistons, balance shaft, oil pumps, water pump, timing drive, flywheel, and starter components. The lubrication-system overview and cooling-system routing diagrams show connections between assemblies.

Fuel Delivery, Boost Control, and Digital Wrench

Fuel-system differences: The 2006 fuel pump is not serviceable separately; replacement requires the fuel-tank assembly. The drop-in pump section provides a different removal and installation procedure, along with tank-seal and pressure checks.

Digital Wrench coverage includes live data, current and historic fault codes, guided diagnostics, service reports, ECU calibration reflashing, and fuel-adaptation checks. Service reports help investigate performance complaints that do not set a fault code, while circuit diagrams and ECU pin views support sensor and harness fault isolation.

Turbocharger limits: Inspection is covered, but turbocharger disassembly is specifically not recommended because factory balancing can be disturbed. A defective unit is replaced as an assembly. Altering the factory-set wastegate actuator rod length can cause poor operation or severe engine damage.

PVT, Final Drive, and Brake Work

Clutch inspection data connects belt condition, sheave clearance, offset, spring selection, and helix calibration with drive-system diagnosis. Standard and lightweight TEAM driven clutches require different alignment tools.

The chaincase exploded view identifies the shift fork, hub carriers, reverse gearing, seals, and tensioner components. Brake coverage explains the master-cylinder compensation port and reservoir venting alongside bleeding and component replacement procedures.

The PVT section warns that using an impact wrench on the clutch bolt or puller can damage the clutch or crankshaft.

Suspension Setup and Electrical Fault Tracing

Suspension information covers ride height, weight transfer, coupling, limiter straps, and M-10 Full Range Adjuster settings. Shock rebuilding sections distinguish Ryde FX Air 2.0, remote-reservoir and mono-tube designs, plus FOX PS-5 procedures, with IFP depths, nitrogen specifications, and valve-shim arrangements.

Electrical diagrams include the PERC 4 forward/reverse controller circuit and M-10 ACE suspension schematics. The final wiring section contains 23 diagram sheets for chassis, engine, hood, system, and ACE circuits as applicable to each year.

Special Tools and Shop Precautions

Named equipment includes Digital Wrench software PU-47063, communication cable PU-47151, and ignition jumper PS-48463. The manual’s update and reflash procedures call for authorized Polaris dealer or distributor access.

Timing-chain tools PW-46985, PW-47079, and PW-47108 are identified, along with TEAM alignment tools PS-46998 and PS-47477, and shock gas-fill tool PS-45259.

Follow the manual’s fuel-system precautions, use eye protection during clutch service, securely support the machine for track operation, and treat nitrogen-charged shocks as pressure vessels.

Selected Valve-Clearance and Bearing-Fit Data

Cold-engine exhaust-valve clearance is specified at 0.15–0.22 mm for naturally aspirated engines and 0.18–0.25 mm for turbo engines. These separate limits accompany the valve-lash inspection and shim-selection information.

Crankshaft main-bearing oil clearance is specified at 0.05–0.06 mm. The bearing replacement guide relates measured clearance to color-coded replacement shells and explains the associated Plastigauge inspection.
