2008 Polaris EDGE & Widetrak Snowmobile Service & Repair Manual (P/N 9921481)

The 2008 Polaris EDGE / Widetrak Service Manual, P/N 9921481 (copyright 2007), covers the 340, 340 Transport, Supersport, 550 LX, Trail Touring Deluxe, Trail RMK, and Widetrak LX snowmobiles.

• Engine repair: Cylinder, crankcase, piston, and crankshaft disassembly and assembly, with inspection limits, engine-mount details, and torque patterns.

• Fuel and lubrication: Mikuni VM carburetor inspection, float-arm adjustment, needle-and-seat leak testing, fuel-pump checks, and oil-pump adjustment and bleeding.

• Final drive and brakes: Chaincase service, Widetrak gearcase overhaul, driveshaft and jackshaft work, hydraulic brake bleeding, and pad and disc replacement.

• PVT clutches: Belt-wear diagnosis, clutch alignment and offset adjustment, drive-clutch rebuilding, spider indexing, and TEAM LWT and Widetrak driven-clutch service.

• Steering and suspension: Camber and toe adjustment, rear suspension coupling, ride-height setup, Ryde FX compression adjustment, and model-specific assembly views.

• Electrical diagnosis: Starter-motor testing, stator and ignition-coil checks, no-spark troubleshooting, PERC reverse operation, and model-specific wiring diagrams.

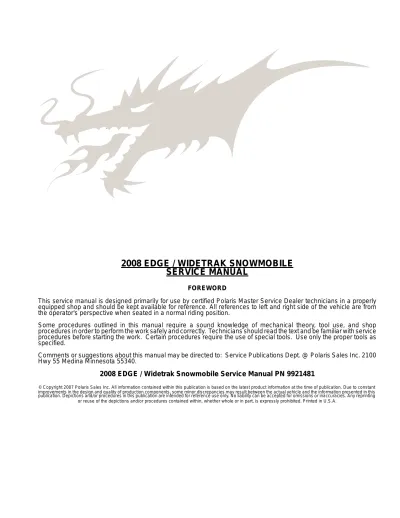

This manual was written primarily for certified Polaris Master Service Dealer technicians in a properly equipped shop, with mechanical knowledge and special tools required for some procedures.

Engine Inspection and Cooling-System Service

Separate sections address the fan-cooled engines and the Widetrak liquid-cooled engine. Inspection coverage includes cylinder taper and out-of-round, bearing fit, piston-ring gap, crankshaft indexing, and crankshaft truing. The tool references include crankshaft alignment kit 2870569 and piston-pin puller 2870386.

Widetrak cooling: Surge-tank hose connections, pressure-cap operation, water-pump belt tension, and cooling-system bleeding are documented. The water-pump impeller, seals, and shaft are not serviceable; the belt, pulley, O-ring, cover castings, and cover gasket are replaceable.

Recoil-starter coverage includes rope replacement, pulley inspection, and spring installation.

Mikuni Fuel-System Diagnosis

The Throttle Opening and Fuel Flow chart connects running symptoms to the carburetor circuits active at different throttle openings. This helps distinguish a pilot-circuit problem from a main-jet issue before selecting replacement jets.

Altitude and ambient-temperature jetting charts accompany the model specifications. Piston-wash and spark-plug reading illustrations support mixture assessment. The fuel chapter adds enrichment-plunger checks, fuel-tank venting, inlet needle-and-seat testing, and fuel-pump diaphragm testing.

Final Drive, Gearcase, and Hydraulic Brakes

Widetrak gearcase procedures cover the input, low/reverse, and output shafts, engagement dogs, and shift drum. Power-flow illustrations distinguish low, high, and reverse operation. Chaincase and shaft assembly views show bearing, seal-sleeve, and O-ring arrangements.

Brake coverage explains the master-cylinder compensating port and includes DOT 4 fluid replacement, brake-line and brake-light-switch replacement, and caliper service, with lever-reserve and component torque specifications.

Clutch Calibration and Repair Precautions

The PVT section distinguishes TEAM driven clutches from the Widetrak roller-driven design. Alignment-tool references separate standard TEAM tool PS-46998 from lightweight TEAM tool PS-47477.

Opening a TEAM driven clutch while it is in reverse can damage the clutch and the L wrench. TEAM installations require jackshaft float to avoid bearing side-loading, while the Widetrak roller-driven clutch uses a different washer arrangement and does not float.

Follow the manual's safety procedures around the rotating track, spring-loaded clutches, and hydraulic brakes.

Suspension Setup and Chassis Work

Front-end references distinguish EDGE 42.5, EDGE 41, and Widetrak arrangements. Rear suspension coverage includes limiter straps, torsion springs, shock-rod orientation, front-rear and rear-rear scissor stops, and the Widetrak ski-pressure adjuster.

Exploded views identify EDGE 121, EDGE 136, EDGE RMK, and Widetrak rail and torque-arm assemblies. Chassis procedures address hood and instrument removal, bumpers, seats, seat covers, the console, and lighting assemblies.

Starting, Ignition, and Reverse-System Checks

Electrical troubleshooting includes dynamic starter-circuit tests, field-coil and armature checks, oil-level sender tests, charging-output specifications, and no-spark and incorrect-timing tables. PERC coverage explains forward/reverse operation and altitude settings.

Diagram references include the Electric Start – Gen II / EDGE system schematic and separate 2008 340 / 550 Models and 2008 Widetrak wiring diagrams, with wire-color codes and connector details.

A Preview of Engine Inspection Limits

These are two examples from the engine inspection data in the manual.

The cylinder-head inspection specifies a warp limit of 0.003 in (0.08 mm). Crankshaft runout must not exceed 0.0025 in (0.07 mm) at the designated PTO and MAG inspection points with the shaft supported on V-blocks.

PDF Search, Bookmarks, and Diagram Detail

Search and diagram access: Body text is searchable, but wiring-diagram labels are not searchable. Embedded bookmarks cover the service chapters; the wiring-section bookmarks have invalid destinations. Small wiring labels are readable when enlarged, with page rotation helpful for the sideways diagrams.

Delivered as one printable 186-page PDF in English. The total already includes three introductory pages, three Notes pages, and a three-page index.
