1985–1995 Polaris Star, SS, Indy Trail, 400, 600, 650, 500 SP, Classic, RXL, Sport GT, SuperTrak, Wide Trak, XLT, Storm, XCR models Factory Service Manual (P/N 9912121)

Polaris's August 1994 Snowmobile Master Repair Manual Vol. 2, P/N 9912121, is supplied here as a 595-page PDF set covering 1985-1995 machines. The model tables pair chassis numbers with engine designations and decode the serial-number prefixes used to identify each model year. Coverage spans Star, StarTrak, StarLite, Sprint, SS, LongTrak/WideTrak, and the Indy Sport, Trail, Lite, 400, 440, 500, 600, 650, Classic, XLT, XCR, RXL, and Storm families, including many ES, EFI, SKS, SP, PT, GT, Deluxe, Touring, and XTRA configurations. The manual states that safe, satisfactory service requires knowledge of mechanical theory, tool use, and shop procedures, making it best suited to trained technicians and experienced mechanics rather than as an entry-level repair guide.

• Engine repair coverage includes PS single-cylinder, PM and PL twin-cylinder, PL three-cylinder, reed-valve, and monoblock disassembly and reassembly, plus crankshaft truing, crankcase bearing fit, cylinder honing, piston identification, recoil starter rope/spring replacement, cooling-system service, and oil-pump bleeding and adjustment.
• Carburetion and fuel-system work covers year-specific jetting data, altitude/temperature compensation, VM30SS/VM34SS/VM38SS service, throttle synchronization, choke and float-level adjustment, fuel-pump operation, exploded views, and problem diagnosis.
• Torque-O-Matic, brake, and final-drive procedures address P-85 and P-90 clutch service, belt adjustment and clutch alignment, spider indexing, hydraulic master-cylinder and H1-H5 caliper overhaul, brake bleeding, M1 brake repair, four drive-system types, Series 300 transmission overhaul, and reverse-kit service.
• Body, steering, track, and suspension sections document tank and seat removal, ABS/RIM/fiberglass repair, nosepan replacement, conventional and IFS steering, XTRA camber and ski alignment, track and drive-shaft removal, WideTrak reassembly, suspension setup, and Fox/IFP shock repair.
• Electrical diagnosis covers regulated and unregulated lighting, headlights, seat harnesses, ignition switches for battery and non-battery machines, speed-control assurance switches, temperature warning circuits, and handlebar/thumb warmers.

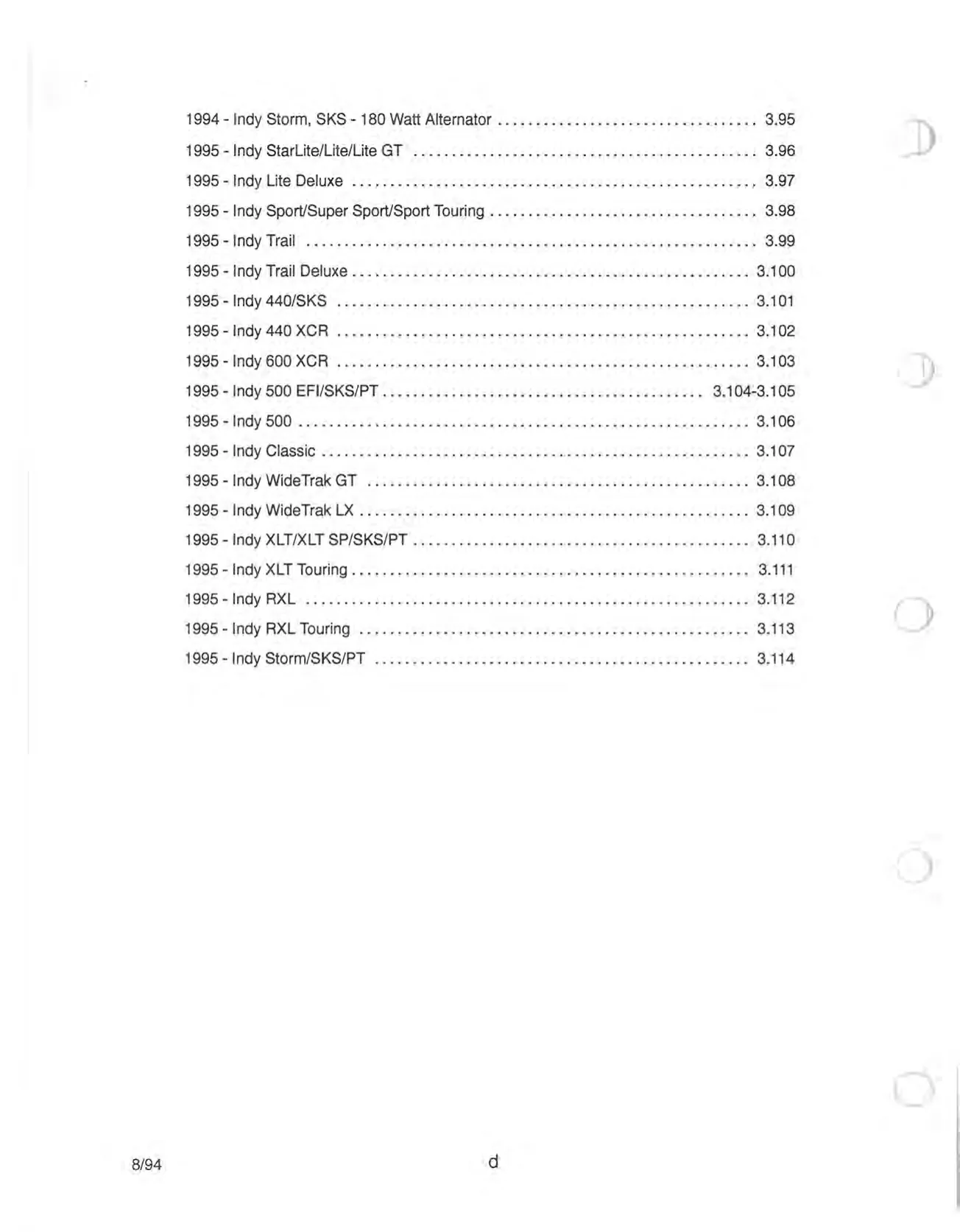

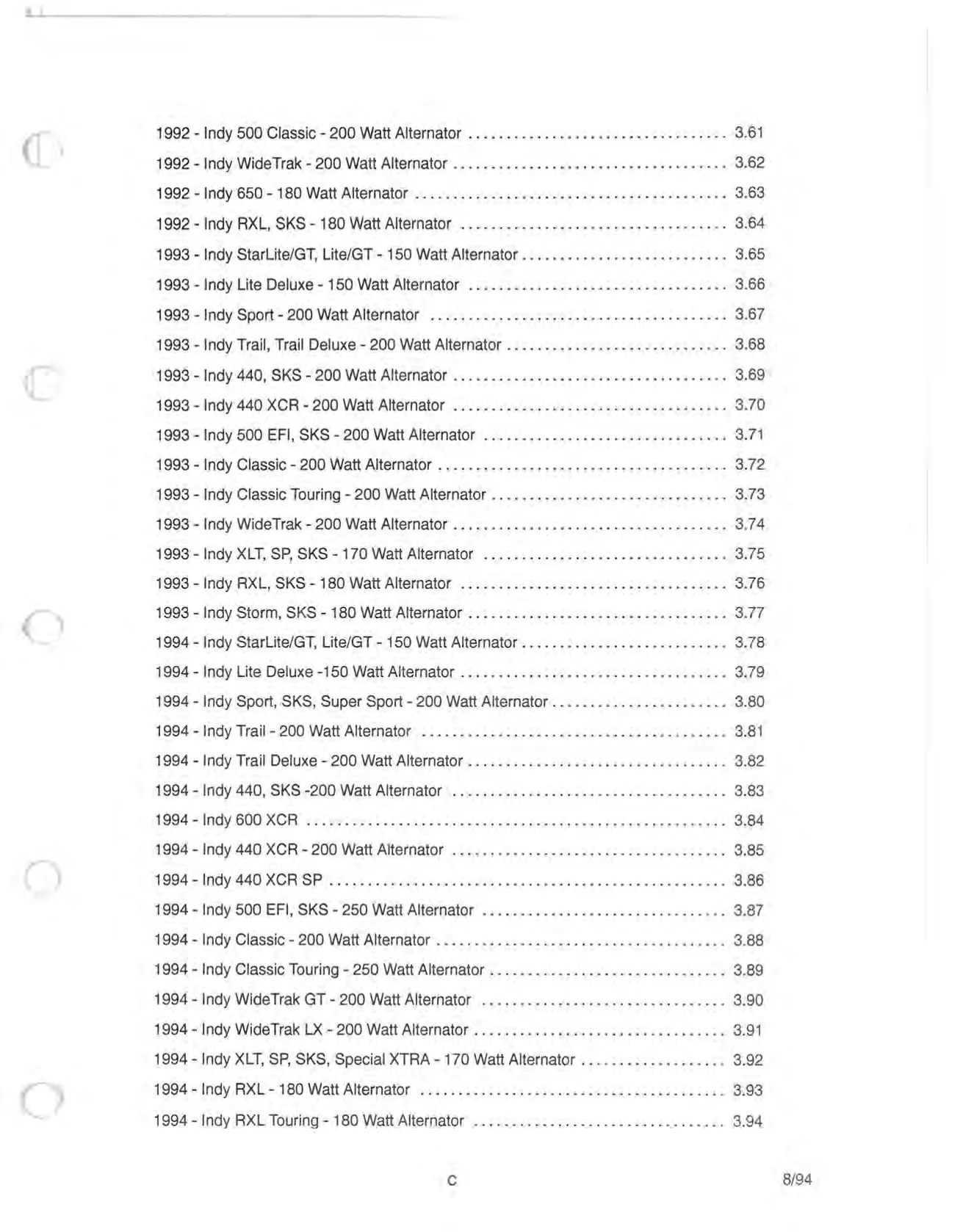

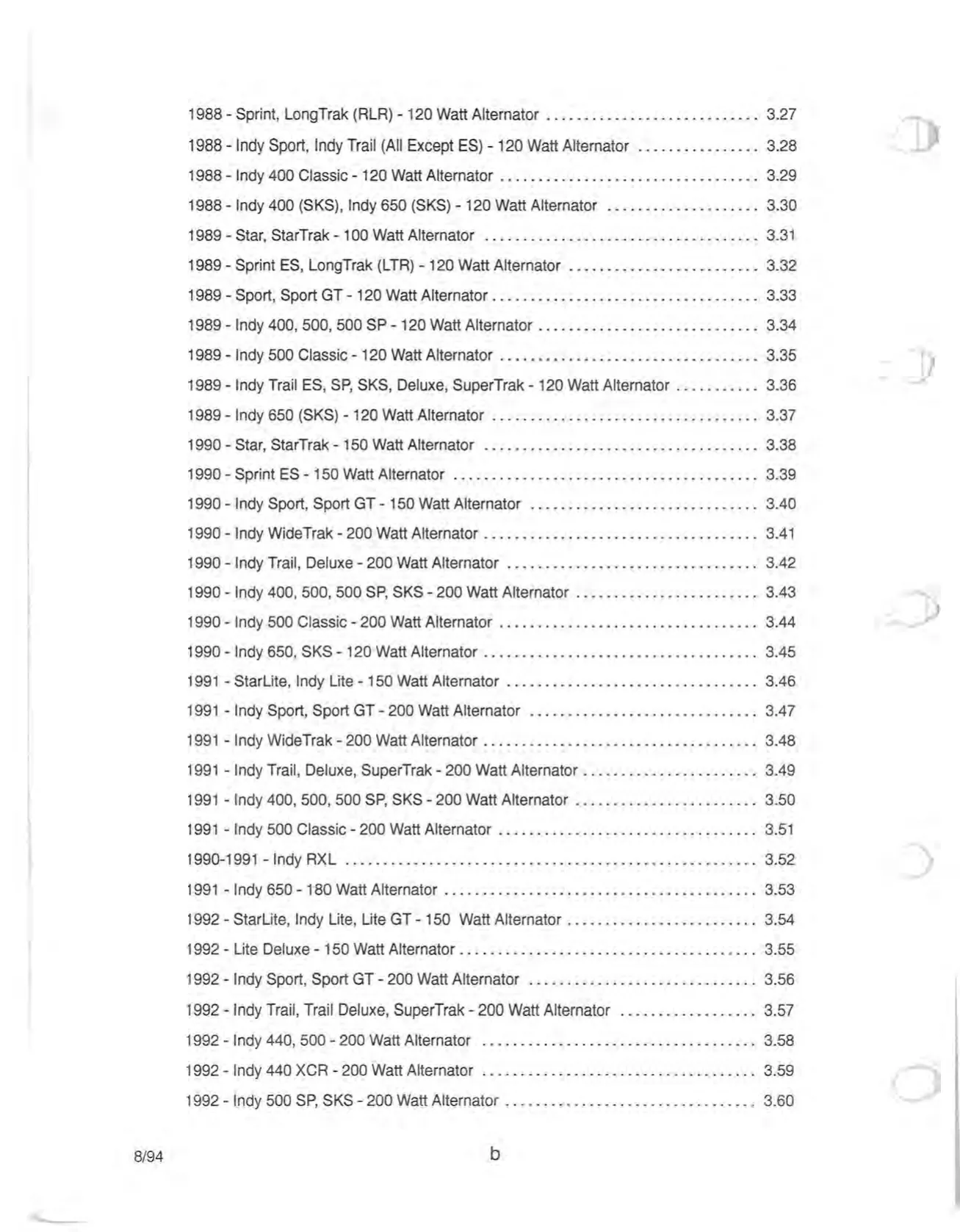

• More than 100 model/year-specific wiring schematics map alternator, lighting, electric-start, battery, EFI, sensor, switch, and accessory circuits from the 1985 Star and Indy models through the 1995 XLT, RXL, 500 EFI, and Storm variants.

Factory Data and Diagnostic Depth

Year-by-year tables supply engine, carburetor, clutch, belt, brake, gearing, drive-sprocket, track, suspension, spring, and shock-valving applications. Related sections carry component torque tables, wear and clearance specifications, electrical test values, jetting charts, troubleshooting information, and final adjustment data. Body repair content reaches beyond routine maintenance, with seat-cover replacement, taillight harness routing, plastic and fiberglass repair, model-specific nosepan installation, paint codes, and steering geometry checks.

Representative diagrams include the 1990-1991 Indy RXL and 1995 500 EFI/SKS/PT wiring schematics, VM-series carburetor and 650 three-cylinder fuel-pump exploded views, Type M2/M3 brake exploded views, Type 3 drive-system overhaul illustrations, and the XTRA suspension exploded view with related shock and spring charts.

Special Tools and Repair Cautions

The tools chapter identifies factory equipment by application and part number, including the Select Monitor for RXL-EFI diagnostics (P/N 2870969), Crankshaft Alignment Kit (P/N 2870569), Uni-Syn gauge (P/N 2870509), Jackshaft Installation Tool (P/N 2870974), and Drive Clutch Holding Fixture (P/N 2870547).

The manual warns that mixing C-clip and spiral-style piston retainers or wrist pins can cause severe cylinder damage. It also requires the specified jackshaft tool on 1991-and-later Indy models to protect the chaincase upper oil seal, and cautions that an impact wrench on the drive clutch can disturb spider torque and damage the crankshaft.

Fuel-system work, drive-clutch service, brake hydraulics, and nitrogen-charged Fox shock work involve fire, stored-energy, or pressure hazards. Follow the manual's warnings and specified tooling; Polaris limits Torque-O-Matic clutch disassembly and repair to authorized, factory-trained technicians.

Supplied PDF Scope

The set contains Chapters 1-3 and 5-10. A standalone Chapter 4 ignition-system section is not included; ignition-related material in these files consists of switch tests, model-specific wiring schematics, engine disassembly references, tool listings, and associated specifications.

595 PDF pages total - Models and Specifications: 52 pages; Body and Steering: 34; Body Electrical: 120; Engines: 76; Carburetion: 69; Torque-O-Matic Drive: 52; Brakes/Final Drive: 64; Suspensions: 90; Tools and Publications: 38.
