Polaris Ranger RZR XP 900 UTV Service Manual, 2011 (P/N 9923144)
376 Pages • Printable PDF • 337.00 MB • Download
Polaris Models Covered & Key Technical Specifications
Models & Model Codes: Ranger RZR XP 900 (R11JH87AA, R11JH87AD; engine 1204098 / ES0870LE011)
Model Year: 2011
Serial Numbers: Engine S/N 00516 and Prior / S/N 00517 to Current (second-ring installed-gap specifications)
-
Engine Displacement: 875 cc
-
Engine Type: 4-Stroke DOHC Twin Cylinder, Liquid Cooled
-
Fuel System: Bosch M17 EFI
-
Transmission: Polaris Automatic PVT
-
Coolant Capacity: 4.9 qts. (4.6 L)
-
Engine Oil Capacity: 3.5 qts. (3.3 L)
-
Spark Plug Gap: 0.03 in. (0.75 mm)
-
Wheel Hub Nut Torque: 80 ft. lbs. (108 Nm)
Polaris Manual Features & Selected Content Preview

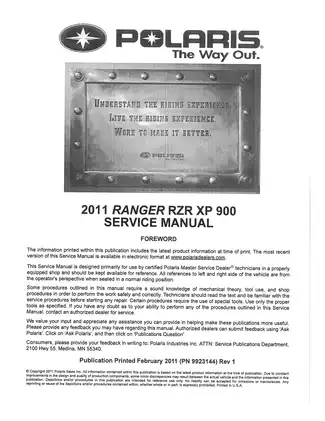

The factory Polaris service manual for the 2011 Ranger RZR XP 900, P/N 9923144, was printed in February 2011 as Rev 1. It covers maintenance, diagnosis and repair for model codes R11JH87AA and R11JH87AD.
PDF Search, Bookmarks and Diagram Detail
Text search and wiring detail: PDF text search is not available. Two embedded bookmarks lead to the cover and Chapter 6, rather than individual chapters throughout the manual. Small wiring-diagram labels require zooming.
Missing pages: Printed pages 3.2–3.3 are absent, including the engine special-tool and lubrication overview listed in the contents.

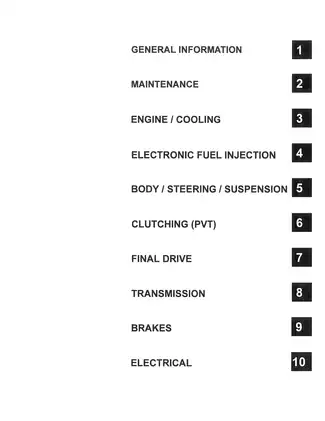

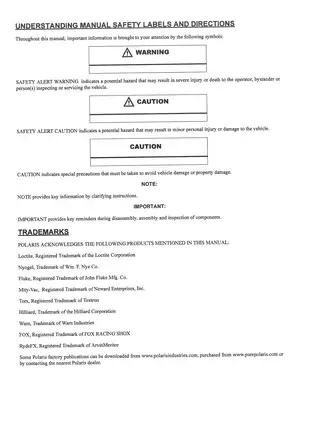

One printable, English-language 376-page PDF, including two covers, three front-matter pages, three unnumbered blank pages, five chapter notes pages and a six-page index section.
Engine, EFI and Chassis Service Coverage
These selected contents show part of the workshop coverage. Additional topics include shift-cable adjustment and headlight aiming.
-
Maintenance: Periodic service schedules, pre-ride inspections, lubrication, oil and filter changes, intake service, spark-arrestor cleaning and valve-clearance inspection.
-
Engine and cooling: Step-by-step engine removal and installation, internal disassembly and assembly, bearing selection, valve-seat reconditioning, camshaft timing, pressure testing and water-pump service.
-
Bosch M17 EFI: ECU, MAQS, CPS, IAC, ECT sensor, dual throttle body, fuel-injector, pump, sender and ignition-coil diagnosis, with Digital Wrench procedures.
-
PVT and driveline: Belt and clutch repair, overheating diagnosis, transmission teardown, snorkel-gear backlash setup, Centralized Hilliard front-gearcase service, and CV-joint or boot replacement.
-
Chassis and suspension: Body and cargo-box removal, non-EPS steering, A-arms, ball joints, radius rods, trailing arms, spherical bearings, stabilizer bar and FOX 2.0 Piggyback shock rebuilding.
-
Brakes: Master-cylinder service, hydraulic fault finding, brake bleeding, front and rear caliper overhaul, disc inspection and brake burnishing.
-
Diagnostic reference: Torque tables, lubricant and fluid data, wear limits, clearance and backlash specifications, electrical test values, exploded views and charging- and starting-system test flowcharts.
Polaris designed this reference primarily for certified Polaris Master Service Dealer technicians in a properly equipped shop. Experienced owners need sound mechanical knowledge and the specified measuring and service tools; PVT repair is expressly assigned to trained MSD technicians.
Engine Inspection and Cooling Repair
For engine 1204098 / ES0870LE011, the chapter covers cylinder-head inspection, camshaft and bore checks, valve sealing, piston-ring and cylinder measurement. Connecting-rod classification, crankshaft journal checks and balance-shaft inspection lead into crankcase preparation and assembly.
The bearing-selection charts match marked crankshaft, balance-shaft, rod and crankcase classes to bearing inserts, supporting parts selection before lower-end reassembly.
Cylinder and piston service requires crankcase disassembly. The manual distinguishes this work from top-end components that can be serviced with the engine in the chassis. Second-ring installed-gap specifications change at engine S/N 00517.
Cooling coverage includes radiator and thermostat replacement, pressure-cap testing, pump seal service and system bleeding. Misalignment of the water-pump drive tab and crankcase slot can severely damage the pump and engine; new pump O-rings are specified after removal.
The Engine Oil Flow Chart and camshaft timing views support lubrication and timing work.
Fuel Injection and Electrical Diagnosis
Instrument-cluster DTC retrieval connects to the factory Digital Wrench workflow, including software identification, updates, communication faults, feature mapping, ECU replacement and authorized calibration reflashing. Digital Wrench is dealer-only software; interface hardware, software and service tools are referenced, not supplied with the PDF.
The MAQS and dual throttle body are non-serviceable; a faulty MAQS calls for replacement of the throttle-body assembly. Fuel-injector and fuel-pump testing and replacement are documented separately.
Electrical sections cover instrument-cluster pinouts, switches, the vehicle-speed sensor, AWD coil diagnosis, lighting, fan-control bypass testing, fuses and relays. Charging-output tests, battery evaluation, starter voltage-drop testing and solenoid bench checks help trace faults through the affected circuit.
System wiring breakouts cover AWD, vehicle speed, cooling fan, charging, chassis power, EFI, key-on power, lighting and starter interlock.
Clutch, Transmission and Suspension Detail
PVT procedures inspect the clutch spider, rollers, pins, thrust washers, shift weights, needle bearing and sheave bushings, and describe driven-clutch compression. The transmission chapter covers gear, shaft and bearing inspection, output-shaft backlash, reassembly, troubleshooting and an exploded view.
Propshaft, support-bearing and U-joint procedures accompany the Centralized Hilliard Exploded View and AWD diagnosis.
Referenced tooling includes Cylinder Holding & Camshaft Timing Plate PU-50563, Digital Wrench kit PU-47063-A, Spider Jam Nut Socket PU-50578, Driven Clutch Compression Tool PU-50518 and Transmission Nut Socket PU-50566.
FOX shock procedures address the internal floating piston, bleeding, nitrogen charging, seal and wear-component inspection, and reassembly. Fuel pressure, rotating PVT components, nitrogen-charged shocks, brake hydraulics and engine removal require the safeguards and shop equipment specified by Polaris.
Non-EPS Steering Scope
The steering exploded view and steering-wheel/shaft removal procedures cover non-EPS machines. Polaris warns that using the illustrated steering-wheel removal method on an EPS model can permanently damage the EPS unit and trigger a power-steering fault.
Optional EPS appears in fuse, relay and warning-indicator information; that does not extend the non-EPS mechanical procedure to EPS machines.
Oil-Pressure and Valve-Clearance Preview
With Polaris PS-4 Plus oil at operating temperature, the engine oil-pressure test specifies minimum readings of 10 PSI at 1200 RPM and 40 PSI at 7000 RPM.
For cold-engine valve inspection, intake clearance is 0.005–0.007 in. (0.125–0.175 mm), while exhaust clearance is 0.011–0.013 in. (0.275–0.325 mm). Intake and exhaust shim-selection matrices accompany the adjustment procedures.
