Yamaha PW50(R) 2002 Owner’s Service Manual (P/N 5PG-28199-82)

This Yamaha Owner’s Service Manual (P/N 5PG-28199-82) covers operation, maintenance, and the documented repair procedures for the 2002 Yamaha PW50(R).

PDF Access, Languages and Page Count

Search, bookmarks and diagram detail: The main manual pages do not support text search. Embedded bookmarks lead to the cover and contents pages rather than the individual chapters. Small wiring labels are best read with zoom, which makes the checked wire-color codes and connector markings legible.

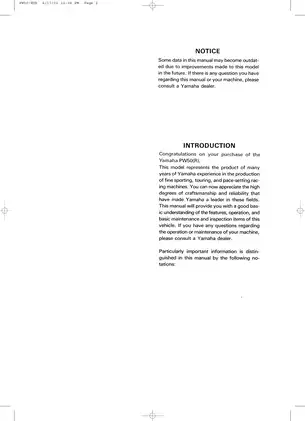

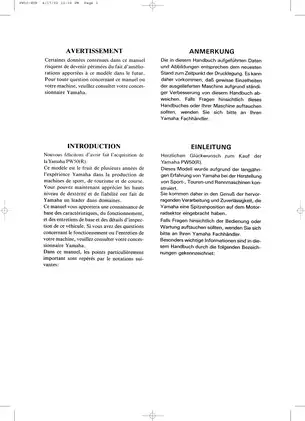

English, French, and German are combined in one printable 161-page PDF. The total includes both covers, 20 introductory and contents pages, and five memo pages.

Two-Stroke Repairs and Rider Controls

The following selected topics outline the coverage; other subjects include cleaning and long-term storage preparation.

• Rider controls: Pre-operation checks, kick starter operation, ignition control switch and fuel cock functions, plus speed limiter and power reduction plate guidance.

• Top-end repair: Cylinder head, cylinder, and piston removal; decarbonizing; bore and piston-ring inspections; and connecting-rod checks.

• Carburetor service: Removal, passage cleaning, float and float-valve inspection, jet-needle adjustment, and pilot air screw and idle-speed adjustment.

• Autolube system: Oil-pump bleeding, pump-cable adjustment, and pump-stroke measurement and adjustment, with illustrations of the relevant components.

• Clutch service: Engine removal for clutch access, primary drive gear and clutch carrier disassembly, and shoe-lining and spring inspections.

• Wheels and steering: Front and rear wheel removal and installation, drum-brake inspections, tire and tube repair, and steering-head inspection and adjustment.

• Ignition diagnosis: Wiring diagram, troubleshooting charts, ignition control switch continuity checks, spark testing, and ignition-coil and CDI-magneto resistance tests.

Suited to parents handling routine checks and owners experienced with mechanical service; internal engine and ignition work calls for measuring tools and the specified test equipment.

Carburetion and Autolube Adjustment

The Mikuni VM12SC section explains how the pilot jet, throttle slide, jet needle, and main jet affect different throttle openings. It also explains that exhaust, ignition, or compression problems can resemble carburetion faults, helping owners assess related systems before changing jetting.

Step-by-step instructions cover air-filter cleaning and oiling. The manual warns that operation without the filter element can accelerate engine wear and cause overheating.

Oil-pump cable alignment is linked to throttle-cable adjustment. The special-tool list identifies dial gauge 90890-03097, or YU-3097 for Canada, for measuring pump stroke.

Top-End Inspection and Clutch Access

Cylinder-bore and piston-diameter measurements provide the factory baseline for assessing top-end wear. The section also covers cylinder-head resurfacing, piston-ring fit, piston-pin bearings, and connecting-rod clearances; crankshaft repair beyond the listed checks is referred to a Yamaha dealer.

The piston-pin notes warn that hammering a stuck pin can damage the connecting rod, piston, and bearing.

The clutch exploded view identifies the primary drive gear, dampers, washers, spacers, and clutch carrier components. Inspection data distinguish shoe-lining wear from spring deterioration.

Middle and final gear lubrication is referred to a separate service manual; that publication is not included.

Wheel, Brake and Steering Checks

Front and rear wheel assembly drawings show fastening and lubrication points, including Europe-specific details. Brake-shoe measurements, drum inspection, tire and tube checks, and rim-runout inspection support assessment of the wheel assemblies.

Steering-head disassembly and wheel-bearing replacement are referred to a Yamaha dealer, distinct from the inspection and adjustment work described here.

Ignition Fault Isolation and Cable Routing

Separate diagnostic charts address weak or absent spark and an engine that starts but will not pick up speed. The wiring diagram, switch-continuity table, and coil test illustrations connect symptoms with specific electrical checks before replacement components are selected.

Cable Routing drawings identify the CDI magneto lead, control-unit connectors, and throttle and oil-pump cable paths. The maintenance and lubrication schedule chart provides a separate reference for recurring service planning.

Selected Top-End and Carburetor Specifications

The top-end section lists a standard piston clearance of 0.034–0.047 mm, tied to cylinder-bore and piston-diameter measurements.

For the Mikuni VM12SC, the pilot air screw baseline is 1-3/8 turns out from lightly seated. The idle-adjustment section also addresses warm-engine hesitation and throttle response.

Always consult the complete documentation and follow its precautions for hot exhaust parts, moving components, and brake checks before returning the machine to a young rider.
