Harley-Davidson XLH 883/1200 Sportster 1993–1994 Service Manual (French)

French-language Harley-Davidson factory service manual for 1993 XLH 883, XLH 883 Hugger, XLH 883 Deluxe, and XLH 1200 models, covering maintenance, fault diagnosis, and major repair work on the Evolution V2 engine and related systems.

Printable PDF and Wiring Diagram Detail

Search, navigation, and diagram labels: PDF text search is not available, and there are no embedded bookmarks. Small wiring-diagram labels require zooming. The manual text is in French, with English labels in some electrical diagrams.

One printable PDF contains 305 pages, including nine blank pages, six notes pages, and one repeated chassis page.

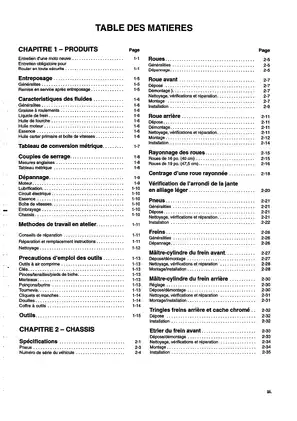

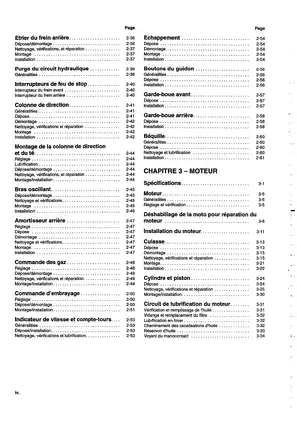

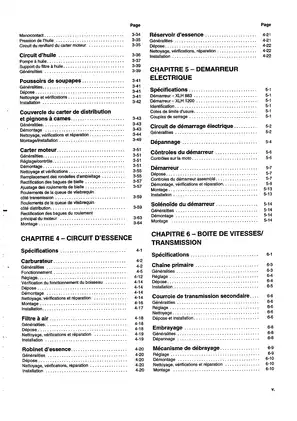

Engine Overhaul, Chassis Service, and Electrical Diagnosis

These selected workshop topics outline the repair coverage. Other material includes storage and return-to-service guidance.

• Engine repair: Engine removal and installation, compression and cylinder-leakage testing, cylinder-head repair, piston and cylinder inspection, and crankshaft and main-bearing work.

• Lubrication and cam drive: Oil-pressure testing, oil-pump overhaul, hydraulic tappet inspection, cam-gear identification, bushing replacement, and timing-mark alignment.

• Fuel system: Carburetor troubleshooting, vacuum-slide checks, adjustment and overhaul, plus air-cleaner, fuel-valve, and fuel-tank service.

• Primary drive and transmission: Primary-chain and secondary-belt adjustment, clutch repair, gearbox disassembly, shift-fork and drum inspection, and transmission-bearing replacement.

• Wheels, suspension, and brakes: Cast and spoked wheel service, wheel lacing and centering, hydraulic brake repair and bleeding, fork service, and steering-head work.

• Starting and electrical systems: Starter and solenoid testing, ignition diagnosis, VOES checks, alternator and regulator tests, battery service, and self-canceling turn-signal troubleshooting.

• Workshop references: Exploded assembly drawings, diagnostic charts, section views, torque and fluid tables, wear limits, bearing-selection data, and USA/HDI wiring schematics.

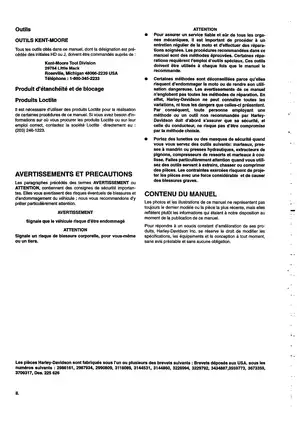

The introduction explains basic maintenance and repair for the reader, while the major repair techniques are written for professional Harley-Davidson mechanics and call for specialized workshop tools.

Engine Inspection and Internal Repair

Separate 883 and 1200 specification columns distinguish new-part measurements from wear limits. Cylinder-head procedures cover rocker boxes, valves, guides, springs, seat reconditioning and lapping, and final assembly. Cylinder and piston sections add bore, ring, wrist-pin, and connecting-rod bushing inspection.

Step-by-step procedures extend through crankcase separation, crankpin roller selection, bearing-race sizing, flywheel truing, and crankcase reassembly. The lubrication sections trace oil-feed and return flow and cover pump teardown, rotor inspection, filter-support service, and pressure-switch diagnosis.

Cam identification: The manual identifies 1D rear-exhaust, 2D rear-intake, 3D front-intake, and 4D front-exhaust cams for the 1993 models. Color and diameter tables support cam and pinion gear selection; related procedures cover cam-bushing measurement and alignment.

The piston section warns that reused piston-pin circlips can weaken, break, or come loose and damage the engine.

Carburetor, Clutch, and Gearbox Work

Carburetor coverage explains the starting, idle/low-speed, midrange, main-metering, and accelerator-pump circuits. Repair material includes float and jet inspection, enrichener service, throttle-cable adjustment, complete disassembly, and reassembly.

Drivetrain sections cover the clutch-release mechanism, clutch-pack inspection, primary-drive removal, mainshaft and countershaft work, main-drive gear and sprocket service, and gearbox installation with final clutch adjustment. Shift-fork identification and gear-engagement drawings accompany the internal transmission procedures.

Wheel, Brake, and Suspension Details

Wheel procedures distinguish cast and laced assemblies, with spoke patterns, rim-runout checks, hub-bearing spacing, tire inspection, and wheel alignment. Brake material covers both master cylinders and calipers, brake-light switches, troubleshooting, and operational checks.

Fork-tube and damper procedures sit alongside steering-head bearing adjustment and replacement, swingarm bearing repair, and rear-shock inspection. Controls, fenders, and side-stand service are also covered. The front master-cylinder section explains how incorrect pushrod and link-pin alignment can jam the brake lever.

Electrical Fault Isolation

No-spark flowcharts, ignition continuity and resistance tests, timing checks, and pickup/rotor procedures support ignition diagnosis. Starter material includes control-circuit checks, pull-in and hold-in winding tests, armature inspection, and solenoid service.

Separate battery, stator, and regulator tests help isolate charging faults before components are replaced. Lighting, horn, neutral-indicator, circuit-breaker, and self-canceling turn-signal sections add component-specific checks. The ignition module, ignition coil, and regulator are diagnosed and replaced as complete units.

Illustrations and Factory Tools

Representative references include the front-brake master-cylinder exploded view, spoke-lacing and rim-centering diagrams, carburetor fuel-and-air circuit sections, the engine lubrication-flow diagram, and five-speed gear-engagement drawings. Full 1993 XLH All Models USA and 1993 XLH (HDI) All Models wiring schematics are included.

The tool section identifies equipment by factory number, including the HD-35500B digital multimeter, HD-35667 cylinder-leakage tester, HD-35381 belt-tension gauge, HD-38515A clutch-spring compressor, and HD-96921-52A oil-pressure gauge.

Safety note: The procedures involve fuel, brake hydraulics, compressed springs, rotating assemblies, and live electrical testing. Work within your skill level and have structural or safety-critical repair work checked by a qualified motorcycle technician.

Selected Oil-Pressure and Piston-Ring Specifications

For both engines at normal operating temperature, the oil-pressure table specifies 7–12 psi at 1,000 rpm and 10–17 psi at 2,500 rpm, measured at the pressure-switch fitting.

For new top and second piston rings, the end-gap specification is 0.010–0.023 in. for the 883 engine and 0.007–0.020 in. for the 1200 engine.
