Polaris 2003 Trail RMK, 600/700/800 RMK & 700/800 SKS Snowmobile Service Manual (P/N 9918051)

378 Pages • 1 Printable PDF (English) • Download

4.5starstarstarstarstar_half(2)
$17.66 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Polaris Models Covered & Key Technical Specifications

Trail RMK, 600 RMK, 700 SKS, 700 RMK, 800 SKS, 800 RMK, 700 EDGE RMK, 800 EDGE RMK, 800 EDGE Vertical Escape RMK


Models & Model Codes:

Trail RMK — S03SR5BS (engine EC55PM025)

600 RMK / 600 EDGE RMK — S03NK6ES (engine S2212-6044-PA6E)

700 SKS — S03NS7CS, S03NS7CSA (engine S2316-7070-PA7C)

700 RMK / 700 EDGE RMK — S03NK7CS, S03NK7CSA, S03NL7CS, S03NL7CSA (engine S2313-7070-PA7C)

800 SKS — S03NS8CS, S03NS8CSA (engine S2315-8070-PA8C)

800 RMK / 800 EDGE RMK — S03NK8CS, S03NK8CSA, S03NL8CS, S03NL8CSA, S03NM8CS (engine S2314-8070-PA8C)

800 EDGE Vertical Escape RMK — S03NN8CS (engine S2314-8070-PA8C)

Model Years: 2003

VIN Identification: Character 4: S = Gen II, N = EDGE; character 5: R = RMK, S = SKS.


  • Engine: Fan Cooled Reed Assist Twin (544cc) and Liquid Cooled Case Reed Twin (593cc, 701cc, 794cc)

  • Drivetrain: PVT belt drive with P-85 drive clutch; 600 RMK: Roller Reverse driven clutch with Polaris Electric Reverse; reverse is optional on the other listed models.

  • Flywheel Torque: 60–65 ft. lbs. (83–90 Nm) or 90 ft. lbs. (124 Nm) depending on model

  • Coolant Capacity: 4.78–4.9 quarts (4.5–4.63L) on liquid-cooled models

  • Chaincase Oil Capacity: 9–11 fl. oz. (266–325 mL)

  • Spark Plug Gap: 0.025"–0.028" (0.64–0.7mm)

  • Ignition Timing: Trail RMK: 27° BTDC @ 3500 RPM; 600 RMK: 24° BTDC @ 3500 RPM; 700 SKS: 20° BTDC @ 2000 RPM; 700 EDGE RMK: 18° BTDC @ 3250 RPM; 800 SKS: 28° BTDC @ 2000 RPM; 800 EDGE RMK / Vertical Escape RMK: 29° BTDC @ 3250 RPM. Specifications apply at room temperature (20°C/68°F), with the TPS unplugged on TPS-equipped models.

Polaris Manual Features & Selected Content Preview

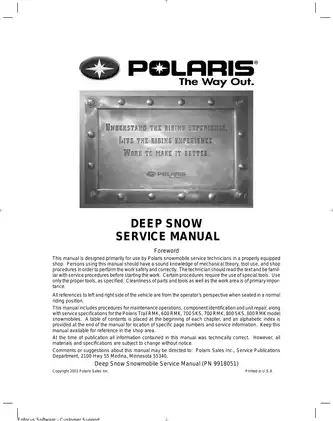

The 2003 Polaris Deep Snow Service Manual, P/N 9918051 (copyright 2001), covers Trail RMK, 600/700/800 RMK, and 700/800 SKS snowmobiles, including EDGE RMK and 800 RMK Vertical Escape variants.

Searchable Text, Bookmarks, and Wiring Detail

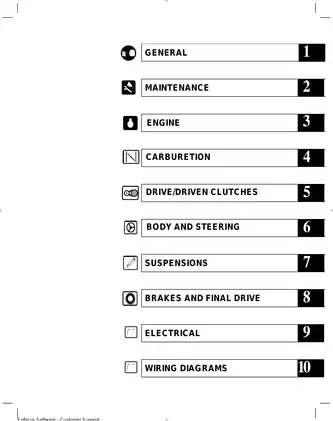

Finding service information: Search the main text and use embedded bookmarks to jump to the chapter overview and all ten chapters. The schematic labels are outside the searchable text. Zoom in to read small connector numbers and wire-color codes.

One printable English-language PDF contains 378 pages total, including the front and back covers, three introductory pages, the four-page alphabetical index, five notes pages, and 20 blank pages.


Engine, Clutch, Chassis, and Electrical Service

These selected service topics show the manual’s repair and diagnostic coverage. Other topics include recoil starter service and HYVO chain and sprocket identification.

  • Engine repair: Engine removal and installation, Fuji fan-cooled and Liberty liquid-cooled engine disassembly, internal inspection, reassembly, and V.E.S. service.
  • Fuel and lubrication: Mikuni VM and TM carburetor overhaul, throttle synchronization, fuel-pump testing, oil-pump bleeding, and pump adjustment.
  • Clutch service: P-85 rebuilding, spider indexing, belt-deflection and clutch-alignment checks, plus Polaris Electric Reverse and TEAM roller-clutch procedures.
  • Steering and suspension: Independent front suspension (IFS) alignment, spindle-bushing replacement, XTRA Lite and EDGE RMK setup, and Ryde FX shock rebuilding.
  • Brakes and final drive: Hayes master-cylinder service, hydraulic caliper repair, brake bleeding, chaincase-bearing replacement, jackshaft service, and track installation.
  • Electrical diagnosis: Ignition, charging, starter, and throttle position sensor (TPS) tests, plus Vertical Escape D.E.T. troubleshooting, model-specific wiring diagrams, and electrical test specifications.

Polaris wrote this manual primarily for snowmobile service technicians in properly equipped shops. The procedures assume a working knowledge of mechanical theory, tools, and shop practices.

Engine Inspection and Cooling

Separate procedures cover the Fuji 550 fan-cooled twin and Liberty liquid-cooled engines. The engine chapter includes piston and cylinder measurements, honing, crankcase-bearing inspection, connecting-rod checks, crankshaft truing and indexing, and component torque tables with tightening patterns.

Cooling diagrams distinguish the 700/800 RMK/SKS layouts, including rear heat-exchanger details for longer tracks, from the 600 RMK and 800 RMK Vertical Escape layout. Procedures cover water-pump seal replacement, pump-belt inspection, and cooling-system bleeding.

Routine maintenance covers air-filter service, lubrication points, and off-season storage. The general-information chapter includes standard bolt torques, unit conversions, a service glossary, and a VIN identification key.

Mikuni Carburetors and Fuel Troubleshooting

The Mikuni TM 38/TM 40 exploded view identifies the rack components for inspection and reassembly. The VM carburetor has an adjustable float level. The TM rack’s float level is fixed by its molded design.

Altitude and temperature jetting charts accompany choke adjustment and throttle synchronization. Troubleshooting by throttle opening helps narrow a drivability complaint to the pilot circuit, needle or main-jet circuit, or fuel supply before the carburetors are disassembled.

P-85 Drive Clutch and Reverse Systems

The P-85 exploded view supports roller inspection, button shimming, and belt-to-sheave clearance checks. Belt-width specifications, offset checks, and torque-stop adjustment help diagnose belt wear. The manual details electric-reverse belt removal and TEAM roller-clutch helix and roller inspection.

Polaris reserves drive-clutch service for trained, authorized dealers using factory service tools. Using an air impact wrench to install or remove the drive clutch can loosen the spider and damage the crankshaft.

Suspension, Hydraulic Brakes, and Chaincase

XTRA Lite and EDGE RMK illustrations show the rear suspension assemblies and mounting points. Setup covers track tension, ski alignment, spring preload, and Vertical Escape shock compression and rebound. Ryde FX service includes shock-specific valving and internal floating piston (IFP) depth references.

The brake chapter includes Hayes master-cylinder cartridge replacement and hydraulic caliper disassembly and reassembly. Final-drive procedures cover driveshaft removal, jackshaft bearings, and mechanical reverse.

No-Spark Diagnosis and Vertical Escape D.E.T.

The no-spark flowchart uses stator resistance checks and wiring diagrams to help trace an ignition fault to the kill circuit, stator, or CDI-related components. The electrical chapter also covers ignition-coil and lighting-circuit checks and TPS testing and adjustment with test kit P/N 2201519.

For the 800 RMK Vertical Escape, the D.E.T. flash-signal table distinguishes detonation, a faulty sensor, and high coolant temperature. The manual explains the limits of detonation protection when ambient or CDI temperatures are elevated.

Examples of Engine Torque and Fuel Capacity

The engine torque table lists 18–22 ft-lb (25–30 Nm) for the 700 and 800 Liberty cylinder-head bolts. For the Fuji 550 fan-cooled engine, the assembly section specifies 16.6–18 ft-lb (22–25 Nm) for the 8 mm crankcase bolts and refers to the tightening sequence.

The 800 SKS specification sheet lists an 11.8-gallon (44.7-liter) fuel tank alongside its oil and coolant capacities.
