2007 Polaris Ranger 500 UTV Service & Repair Manual
344 Pages • Printable PDF • 21.70 MB • Download
Polaris Models Covered & Key Technical Specifications
Models: Ranger 2x4, Ranger 4x4 Carb, Ranger 4x4 EFI

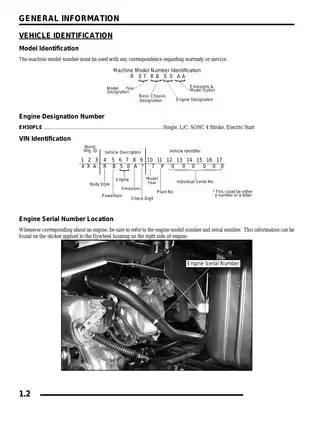

Sub-models / Variants: 2x4 (R07RB50AA; engine EH500PLE168), 4x4 Carb (R07RH50AA; engine EH500PLE168), 4x4 EFI (R07RH50AF, R07RH50AR, R07RH50AT; engine EH500PLE223)
Model Year: 2007
-
Engine displacement: 499 cc
-
Engine type: Fuji Single Cylinder, 4-Stroke, SOHC, Liquid Cooled
-
Fuel system: Mikuni BST 34mm CV Carburetor (Carb models), Visteon Electronic Fuel Injection (EFI models)
-
Compression ratio: 10.2:1
-
Engine idle speed: 1200 +/- 200 RPM
-
Transmission type: Polaris Automatic PVT (High, Low, Rev)
-
Dry weight: 1105 lbs (2x4) to 1185 lbs (4x4 variants)
-
Drive system: 2WD (2x4) or 4WD (4x4 variants)
-
Ground clearance: 11.5 in (29 cm)

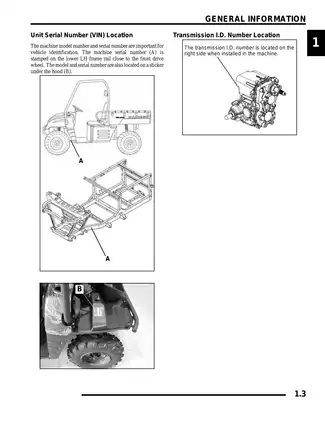

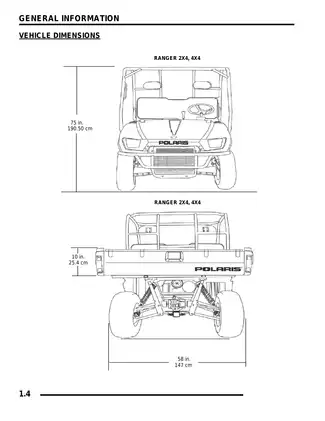

Polaris Manual Features & Selected Content Preview
Polaris service and repair manual for the 2007 Ranger 500 2x4, 4x4 Carb, and 4x4 EFI models, covering the EH50PLE engine family and the R07RB/R07RH configurations. The material spans ten major sections covering maintenance, internal engine repair, fuel systems, chassis components, and electrical troubleshooting.
Service Text Search and Wiring Diagram Detail
Finding procedures and circuits: Service text supports PDF searches, with embedded bookmarks for chapters, subsections, the index, and wiring diagrams. Small labels in the appended wiring sheets require zooming; their internal lettering is not searchable.

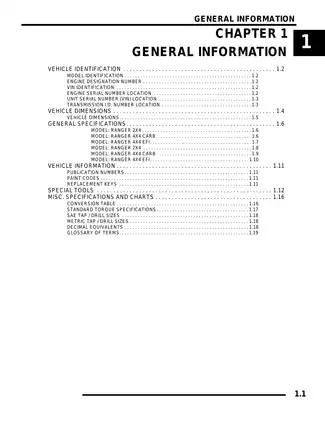

One printable English PDF contains 344 pages, including one opening chapter-overview page, four index pages, and seven wiring-diagram sheets.
Engine Overhaul, Fuel Diagnosis, and Driveline Repair
Beyond these selected topics, the manual also covers battery activation and diagnosis of the electric box-lift actuator on equipped vehicles.
-
Engine repair: Step-by-step procedures for engine removal, cylinder-head service, piston and crankshaft inspection, crankcase assembly, camshaft timing, and valve adjustment.
-
Carburetor service: Mikuni CV carburetor disassembly, cleaning, float inspection, needle-and-seat leakage testing, fuel-level checks, and mixture adjustment.
-
EFI diagnosis: Visteon system operation, fuel-pressure testing, injector and sensor checks, Throttle Position Sensor replacement and initialization, and diagnostic blink codes.
-
PVT and transmission: Drive and driven clutch service, belt inspection, alignment checks, shift-linkage adjustment, and transmission disassembly and reassembly.
-
Final drive: Centralized Hilliard AWD diagnosis and gearcase repair, propshaft U-joint service, CV joint and boot replacement, and rear differential service.
-
Chassis and brakes: MacPherson strut and Independent Rear Suspension service, ball-joint replacement, hydraulic brake bleeding, caliper repair, and parking-brake adjustment.
-
Electrical troubleshooting: Power Distribution Module tests, ignition and charging diagnosis, starter-motor overhaul, wiring diagrams, and circuit breakout diagrams.
Suited to mechanics familiar with internal engine work and electrical testing; Polaris specifies trained, certified service personnel and factory-authorized tools for PVT repairs and recommends MSD-certified technicians for steering repairs.
Engine, Lubrication, and Cooling Service
Engine service data includes wear limits, clearances, component torque specifications, variant-specific spark-plug gaps, and the multistage cylinder-head bolt tightening procedure. The EH50PL Oil Flow Diagram supports the lubrication-system explanation, oil-pressure testing, and oil-pump priming procedures.
The manual distinguishes components accessible with the engine installed from work requiring engine removal. Water-pump mechanical seal replacement is described with puller P/N 2872105; the associated warning explains that careless tool use can bend the shaft, requiring engine removal and crankcase separation.
Cooling coverage includes system pressure testing, radiator removal, thermostat checks, and separate EFI and non-EFI electrical references.
Carburetor and EFI Service Differences
Altitude jetting charts support carburetor setup for operating conditions. For EFI work, the manual provides manual component tests and identifies dealer-only Digital Wrench diagnostic software PU-47063 and TPS tester 2201519.
The EFI pump and tank are treated as a replacement assembly, rather than an individually replaceable fuel pump. The TPS section also warns that changing the factory throttle-body idle stop requires replacement of the complete throttle-body assembly.
Fuel-system work requires the pressure and ignition-source precautions described in the manual.
Clutches, Transmission, and Differential Repair
Clutch charts identify altitude-specific weights and springs, while the service sections extend to sheaves, bushings, rollers, and clutch alignment. Transmission procedures illustrate the 4x4 unit and explicitly apply the same disassembly approach to the similar 2x4 transmission, with separate exploded views.
Centralized Hilliard coverage includes coil testing, armature inspection, and backlash-pad adjustment. Rear differential repair is also covered, but its pinion assembly is not intended for disassembly; damage to its gear, bearings, or case calls for assembly replacement.
Brake Inspection and Electrical Fault Isolation
Brake procedures extend beyond pad replacement to master-cylinder replacement, caliper inspection, disc measurements, and parking-brake service.
For daily shop work, the wiring diagrams and electrical breakout diagrams connect component tests with circuit tracing before replacement parts are selected. Separate EFI and non-EFI PDM references, the Ignition System Testing Flow Chart, and the Starter System Test Flow Chart support fault isolation across different configurations.
Examples of Compression, Valve, and Lubrication Data
The maintenance section lists measured compression of about 60–90 PSI, noting that the automatic decompressor makes readings dependent on cranking speed. Intake and exhaust valve clearance is specified at 0.006 in. (0.15 mm), checked with the engine cold at compression-stroke TDC.
Lubrication references distinguish an approximate transmission capacity at change of 15.2 oz. (450 ml) from a rear gearcase capacity of 18 oz. (532 ml).
