Polaris 340 EDGE TOURING, TRAIL TOURING, TRAIL TOURING DELUXE, 600 EDGE TOURING, 800 EDGE TOURING, WIDETRAK LX Snowmobile Service Manual - Factory-Grade Service & Diagnostics 2005

4.5starstarstarstarstar_half(4)
visibility Preview Available
Polaris Polaris 340 EDGE TOURING, TRAIL TOURING, TRAIL TOURING DELUXE, 600 EDGE TOURING, 800 EDGE TOURING, WIDETRAK LX Snowmobile Service Manual - Factory-Grade Service & Diagnostics 2005 manual page preview - page 1 of 300

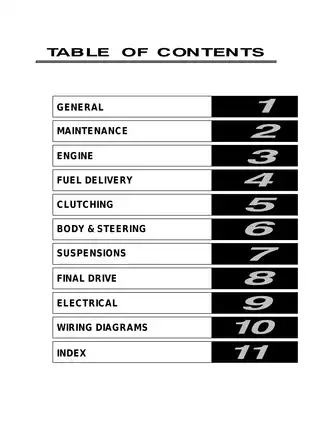

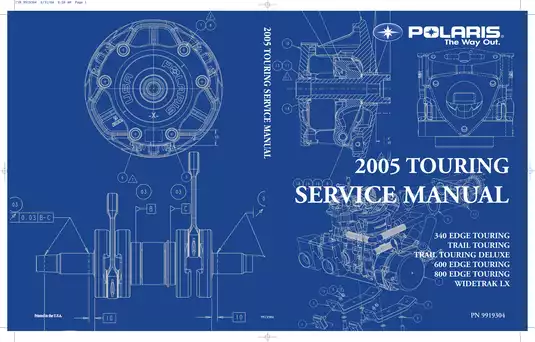

Sample pages from the Polaris 340 EDGE TOURING, TRAIL TOURING, TRAIL TOURING DELUXE, 600 EDGE TOURING, 800 EDGE TOURING, WIDETRAK LX Snowmobile Service Manual - Factory-Grade Service & Diagnostics 2005 manual

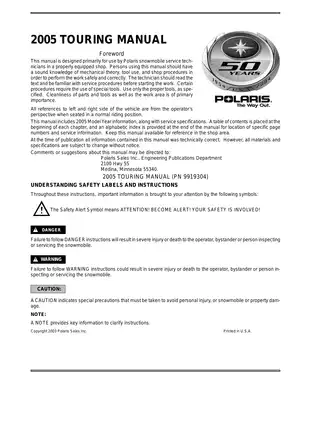

Polaris Polaris 340 EDGE TOURING, TRAIL TOURING, TRAIL TOURING DELUXE, 600 EDGE TOURING, 800 EDGE TOURING, WIDETRAK LX Snowmobile Service Manual - Factory-Grade Service & Diagnostics 2005 manual preview page 1 - thumbnail

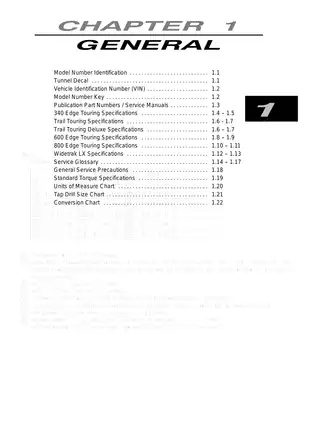

Polaris Polaris 340 EDGE TOURING, TRAIL TOURING, TRAIL TOURING DELUXE, 600 EDGE TOURING, 800 EDGE TOURING, WIDETRAK LX Snowmobile Service Manual - Factory-Grade Service & Diagnostics 2005 manual preview page 3 - thumbnail

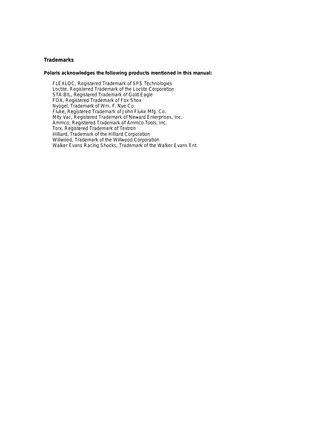

Polaris Polaris 340 EDGE TOURING, TRAIL TOURING, TRAIL TOURING DELUXE, 600 EDGE TOURING, 800 EDGE TOURING, WIDETRAK LX Snowmobile Service Manual - Factory-Grade Service & Diagnostics 2005 manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$17.29 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
1 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Polaris Models Covered & Key Technical Specifications

Models: 340 Edge Touring, Trail Touring, Trail Touring Deluxe, 600 Edge Touring, 800 Edge Touring, Widetrak LX
Sub-models / Variants: 340 Edge Touring (2005), Trail Touring (2005), Trail Touring Deluxe (2005), 600 Edge Touring (2005), 800 Edge Touring (2005), Widetrak LX (2005)
Build Years: 2005
Serial Numbers: S05NT3A(S,E), S05NU5B(S,E), S05NT5B(S,E), S05NT6E(E,S)(A,B), S05NT8CS(E), S05SU4BS(E)
Technical Data:

  • Engine Types: 340 (Fuji Fan-Cooled), 544 (Fuji Fan-Cooled), 599 (Liberty Liquid), 794 (Liberty Liquid), 488 (Fuji Fan-Cooled)
  • Carburetion Types: Mikuni VM30SS, VM34, TM38, TM40, VM34SS
  • Transmission / Reverse: P-85 Drive Clutch, Team Roller Reverse, Electronic or Mechanical Reverse
  • Track Lengths: 136" (Edge variants), 156" (Widetrak LX)
  • Electrical Output: 200–280 watts depending on model
  • Standard Spark Plug: NGK BR8ES, BR9ES, or Champion RN57YCC / RN3C
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
32183 / Donna Crawford
File Size:
31.81 MB
File Type:
PDF
Language:
English
Pages:
300
Printable:
Yes
Category:
Snowmobile
Last updated / verified
Jan 1, 2026

Polaris Manual Features & Content Preview

2005 Polaris Touring & Widetrak LX Snowmobile Technical Coverage

  • Built for owners and workshops servicing the 2005 Polaris 340 Edge Touring, Trail Touring, Trail Touring Deluxe, 600 Edge Touring, 800 Edge Touring, and Widetrak LX snowmobiles
  • Official OEM publication P/N 9919304, published 2003
  • Contains 56 individual component exploded-view diagrams and 18 detailed torque specification tables
  • File delivered as a direct download the moment payment clears
  • Indexed PDF search covers every chapter and appendix
  • Stored against your account so you can retrieve it after a hard-drive loss
  • No DRM restrictions on the print function
  • This specific document provides the exact factory-grade service data and diagnostic parameters established by Polaris for the 2005 season across all listed models

Engine and Maintenance Walkthrough

This 300-page manual documents the 2005 Polaris Touring and Widetrak LX snowmobile family, providing maintenance and repair specifications for engines ranging from the 340cc fan-cooled Fuji to the 800cc Liberty liquid-cooled twin. The documentation is organized into eleven core chapters covering the engine internals, fuel delivery systems, clutching, steering and body panels, suspension configurations, final drive, and electrical systems. Detailed service procedures for recoil assembly, oil pump bleeding, cooling system management, and exhaust valve maintenance are provided for specific engine models. Expert insight into the 600 and 800 Liberty engine variants, including stator disassembly and reassembly, is provided throughout the manual's engine-service section.

Specification Highlights and Technical Reference

Technical depth includes comprehensive torque values for cylinder heads, crankcases, and engine mounts to ensure assembly accuracy. The manual contains detailed carburetion settings for Mikuni VM and TM series carburetors, including jetting charts based on altitude and ambient temperature. Fluid capacity charts provide volume references for fuel tanks, oil tanks, and chaincase reservoirs. Maintenance schedules outline service intervals for brake inspection, belt maintenance, suspension lubrication, and track tensioning to help preserve mechanical longevity across the 2005 lineup.

Reference only — always consult a certified technician before performing service on this equipment.

An official 300-page Polaris OEM service manual covering the 2005 340 Edge Touring, Trail Touring, 600 Edge Touring, 800 Edge Touring, and Widetrak LX, documenting engine, chassis, electrical, and fuel-injection specifications for the entire model year build.

Document Reference: PN 9919304, Copyright 2003

Manual FAQ, Purchase & Download Details

Are component breakdown diagrams or exploded views included for the snowmobile systems? keyboard_arrow_down

Manual includes various illustrations and exploded views throughout the chapters to help visualize component layout and assembly.

Does the manual provide electrical reference values and wiring diagrams for the 2005 models? keyboard_arrow_down

Chapter 9 and Chapter 10 contain detailed electrical information, including wiring diagrams and relevant technical values for the electrical systems. These sections serve as a comprehensive reference for the electrical configurations found in the manual.

Can I find specification tables that list tightening specs and other engine clearance references in this document? keyboard_arrow_down

General Information chapter provides extensive specification tables for each covered snowmobile model. These tables list various technical data categories, including tightening specifications, bore and stroke measurements, and clearance ranges. You can refer to these pages to locate the specific data points relevant to your engine type.
