Polaris Ranger 500 2x4 / 4x4 EFI (2008) UTV Service Manual (P/N 9921267)
355 Pages • 1 Printable PDF (English) • Download
Polaris Models Covered & Key Technical Specifications
Models: Ranger 500 2x4, Ranger 500 4x4 EFI
Sub-models / Variants: 2x4 (R08RB50AA, engine EH500PLE169), 4x4 EFI (R08RH50AF, R08RH50AR, R08RH50AT, engine EH500PLE224)
Model Year: 2008
-
Engine: Fuji Single Cylinder, 4-Stroke, SOHC, Liquid Cooled, 499 cc (EH50PLE)
-
Engine Idle Speed: 1200 ± 200 RPM
-
Compression Pressure: 70-90 psi (general specifications) / 60-90 psi (cranking test, varies with cranking speed)
-
Transmission: Polaris Automatic PVT (2x4 gearbox: rear output / 4x4 EFI gearbox: front and rear outputs)
-
Fuel Capacity: 9 gal. (34 L)
-
Alternator Output: 250 watts @ 5000 RPM (2x4) / 500 watts @ 3000 RPM (4x4 EFI)
-
Front Suspension: MacPherson Strut
-
Rear Suspension: Independent Rear Suspension
-
Shift Type: In-Line Shift H/L/N/R
Polaris Manual Features & Selected Content Preview
Polaris’s 2008 Ranger 500 service manual, P/N 9921267 (copyright 2007), covers the 2x4 (R08RB50AA) and 4x4 EFI (R08RH50AF, R08RH50AR, R08RH50AT). It documents maintenance, diagnostics, and repair for both versions of the EH50PLE engine platform.
PDF Search and Wiring Sheets

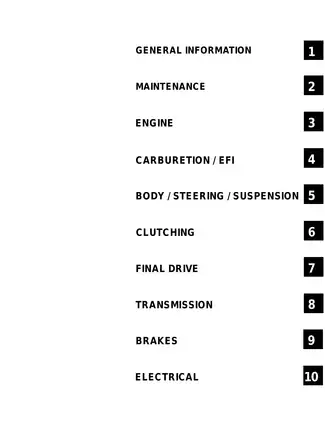

Bookmarks and diagram detail: The main text is searchable, with bookmarks for chapters, individual procedures, the index, and the wiring appendix. Search covers the wiring-sheet titles and sheet numbers. Rotate and zoom in on the sheets to read small connector labels, pin numbers, and wire codes.
Download one printable English PDF with 355 pages. The total includes three opening pages, one unnumbered blank page, 342 chapter pages (including eight notes pages and one header-only page), a four-page index, and five wiring sheets.
Engine, Drivetrain, and Electrical Service
This selection of service procedures covers the main repair areas. The manual also covers cab frame removal and diagnosis of the electric cargo box lift actuator, if equipped.
-
Periodic maintenance: Severe-use service schedules, lubricant selection, valve clearance adjustment, and inspections of the cooling system, transmission, and gearcases.
-
Engine repair: Step-by-step procedures for engine disassembly and reassembly, including cylinder head inspection, camshaft timing, and water pump mechanical seal replacement.
-
Fuel systems: Carburetor cleaning and adjustment on the 2x4, plus EFI fuel pressure testing, sensor diagnosis, and throttle position sensor (TPS) initialization on the 4x4 EFI.
-
PVT and transmission: Drive and driven clutch service, clutch alignment, belt inspection, and internal transmission disassembly, inspection, and reassembly.
-
Final drive: Centralized Hilliard front gearcase diagnosis and front CV joint and boot replacement on the 4x4 EFI, plus rear differential service, axle inspection, and rear CV joint and boot replacement.
-
Chassis and brakes: Steering alignment, MacPherson strut and independent rear suspension service, caliper repair, brake bleeding, and parking brake adjustment.
-
Electrical diagnosis: Power Distribution Module (PDM) isolation tests and DC/CDI ignition checks on the 2x4, plus charging and starting tests and model-specific wiring diagrams.
Written primarily for certified Polaris Master Service Dealer technicians, the manual assumes knowledge of mechanical theory, tool use, and shop procedures, along with access to a properly equipped shop.
Engine Overhaul and Water Pump Service
The overhaul section covers engine removal and installation, cylinder honing, valve seat reconditioning, and crankcase assembly, with wear limits and fastener torque sequences. The EH50PL oil flow diagram and oil pressure test support dry-sump lubrication diagnosis.
The specified puller allows mechanical water pump seal replacement with the engine installed and the crankcase intact. Side-loading can bend the pump shaft, and replacing the shaft requires engine removal and crankcase separation.
Mikuni Carburetion and Visteon EFI
The 2x4’s Mikuni BST 34 mm CV carburetor section covers float height adjustment and needle-and-seat leakage testing, with a high-altitude jetting chart. Polaris specifies a complete carburetor for jet needle or piston slide replacement because of the tamper-resistant diaphragm cover.
The Visteon EFI section pairs a blink code chart with sensor and harness tests to help isolate faults. Testing the manifold air pressure (MAP) sensor requires Polaris’s dealer-only Digital Wrench software.
The EFI pump and tank are replaced as an assembly. Moving the factory-set idle stop requires throttle body replacement. The EFI service notes cover fuel pressure relief and electrical isolation during service.
PVT Clutches, Transmission, and Final Drive
The Polaris Variable Transmission (PVT) clutch chart lists shift weights by elevation. The clutch chapter covers spider and bushing service, and separate transmission exploded views show the 2x4 and 4x4 gearbox layouts.
Front gearcase service includes all-wheel-drive engagement checks and backlash pad adjustment. For rear differential lock diagnosis, the electrical chapter distinguishes the 2x4 PDM circuit from the 4x4 EFI relay circuit.
Rear pinion damage calls for assembly replacement. The rear gearcase procedure omits pinion and ring gear shimming.
Steering, Suspension, and Brake Repairs
The front strut section covers cartridge and ball joint replacement. Rear suspension procedures cover A-arm bushing inspection and replacement, along with shock spring preload adjustment.
The brake chapter gives pad and disc wear limits and covers front and rear caliper service, master cylinder replacement, and parking brake pad shimming.
Electrical Fault Tracing
The 2x4 section gives ignition timing and thermistor test values. Separate cooling-system diagrams show PDM fan control on the 2x4 and ECU fan control on the 4x4 EFI.
The starting-system flowchart helps trace a no-crank fault through the battery, solenoid, and starter wiring. The chassis and dash wiring sheets are labeled R08RB50AA for the 2x4 and R08RH50AF for the 4x4 EFI.
Valve Clearance and Fluid Capacity Examples
Both models specify 0.006 in. (0.152 mm) for intake and exhaust valve clearance, with the engine cold and the piston at top dead center on the compression stroke.
The engine oil-and-filter change calls for 2 quarts (1.9 L), with a final dipstick check. For the 4x4 EFI, the transmission chapter specifies 15.2 oz. (450 mL) of Polaris AGL gearcase lubricant. The front gearcase maintenance section lists 5.0 oz. (150 mL) for the same model.
