HP DesignJet 4000 & 4000ps Service Manual (2005–2011)
356 Pages • ZIP Download: Printable PDF • 18.54 MB
Hewlett Packard Models Covered & Key Technical Specifications
Models & Model Codes: DesignJet 4000 (Q1273A), DesignJet 4000ps (Q1274A)
Sub-models / Variants: 4000 series
Model Years: 2005–2011 (2005, 2006, 2007, 2008, 2009, 2010, 2011)
- Ink cartridge capacity: 225 ml (supplied color) / 400 ml (supplied black, optional color)
Hewlett Packard Manual Features & Selected Content Preview

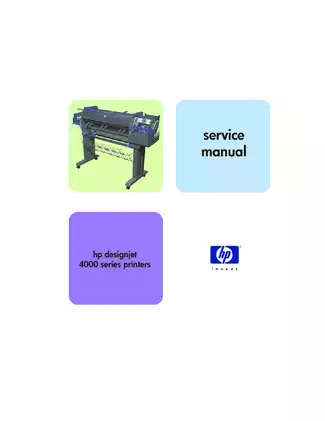

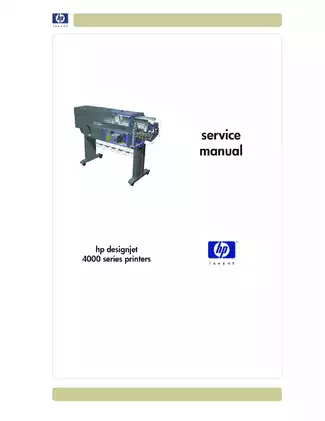

This first edition of HP’s DesignJet 4000 series printer service manual, published in December 2004, covers the DesignJet 4000 (Q1273A) and 4000ps (Q1274A) only. HP’s separate User and Quick Reference Guides cover day-to-day operation.
PDF Bookmarks and Text Search

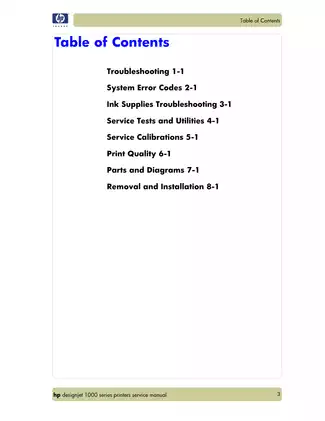

Navigation and search: Embedded bookmarks jump to all eight chapters and many individual procedures. Some contents entries and flowcharts are searchable. Most of the body text is best reached through the bookmarks or by browsing the pages.

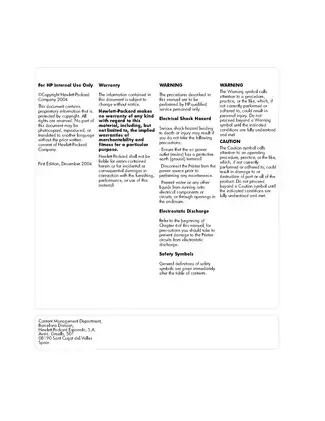

The ZIP download contains one printable PDF with 356 pages, including six front-matter pages, two back-matter pages, and three otherwise blank chapter-end pages.
Printer Diagnostics, Calibration, and Component Service
This selection of service topics covers common diagnostic and repair work. The manual also addresses media-loading faults and printhead strikes on coated paper.
- System errors: 84 entries with fault descriptions and corrective actions, including logged-only code 98:02. Lookup tables distinguish continuable faults from those that stop operation.
- Built-in tests: 14 service-test areas cover the scan axis, media drive, carriage, sensors, ink delivery, service station, aerosol and vacuum fans, air pump, electronics, and installed I/O interfaces.
- Service utilities: Nine routines include tube priming, serial-number entry, life-counter resets, diagnostic printing, carriage positioning for cutter replacement, and Carriage Setup.
- Service calibrations: Seven procedures cover the scan axis, service station, paper advance, drop detector, line sensor, platen blue line, and vacuum.
- Print-quality diagnosis: Diagnostic plots and banding flowcharts help trace defects to alignment, paper advance, or individual printheads and nozzles.
- Component replacement: Illustrated removal and installation cover the service station, ink-supply tubes, ink supply station, air pressurization assembly, carriage, belt, axis motors, paper path, and rollfeed.
- Parts identification: HP part-number tables and 14 exploded figures cover assemblies such as the electronics module, carriage, scan axis, drive roller and media-axis motor, paper path, and media entry.

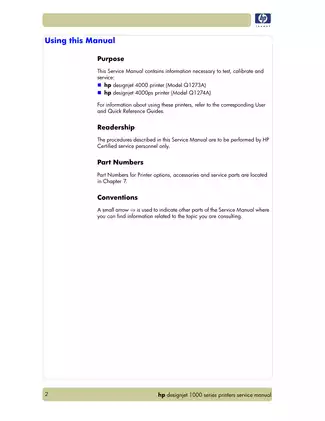

HP specifies this manual for HP-certified service personnel working on the printer’s mechanical and electronic assemblies.
Startup Faults and Ink-System Diagnosis
The startup sequence traces file-system and operating-system initialization, I/O and front-panel startup, engine and parser startup, and mechanical initialization. The power-up buzzer table, rear power-switch LEDs, and voltage-status LEDs on the Interconnect and PrintMech PCAs help narrow down where startup stops.
The Electronics Module Test covers the Main PCA formatter, printer configuration, Gamut PCI PCA, power supply, PrintMech, Interconnect PCA, and communication with the carriage and ink supply station. It checks the stored Standard or Productivity configuration against the printer’s model number. The EIO card and hard drive are outside this test’s scope.
The ink-supply chapter explains cartridge, printhead, and printhead-cleaner status messages, printhead error codes, and the use of the Carriage Interconnect Wiper when printheads are repeatedly rejected. Running the relevant service test before ordering a part can help confirm which assembly has failed.
Print Defects and Post-Repair Checks
The Image Quality User Plot separates alignment, paper-advance, and printhead faults. The separate Nozzle Print Test shows individual nozzle output. The print-quality chapter also covers dark-light zone banding, paper expansion and paper advance (PEPA), PANTONE and general color accuracy, image clipping, vertical line straightness, bubbles, black-printhead decap, ink contamination, and satellites in black lines.
The disassembly chapter follows the order in which parts come off the printer and lists the required long Torx driver and small flat-blade screwdriver. It covers replacement of the Main, Gamut PCI, Interconnect, and PrintMech PCAs, the hard drive, and the power supply. Component procedures flag required tests, resets, and calibrations, including cases where an assembly was removed to reach another part.
The manual warns that the service-station fasteners can damage the encoder strip during removal. It specifies separate repair cycles for the hard drive and the ink-supply tubes with trailing cable. Replacing both together can leave default serial data in nonvolatile memory and trigger the need for the Error 71:19 recovery utility.
Electrical illustrations include board locations and LED callouts, with diagnostic tables and front-panel test screens. Full wiring and board-level circuit schematics are outside this edition’s scope. Hardware service requires AC power isolation and ESD precautions. Powered calibration requires clearance around the moving carriage.
Examples of Diagnostic and Calibration Data
The PrintMech PCA’s LED reference identifies VPOWER2 as a fused 42 V supply and VAUX as a fused 12 V supply from the power supply unit.
For Paper Advance Calibration, the manual specifies HP Productivity Gloss Media 36 inches wide and at least 45 inches long when using a cut sheet in place of the calibration kit media.
