2014 Polaris 600 & 800 Switchback Snowmobile Owner's Manual - Pro-R & Adventure Models (P/N 9924269)

The 2014 Polaris 600 and 800 Switchback owner's manual, P/N 9924269, Rev 01 (copyright 2013), covers the base Switchback and Pro-R models, the 600 Switchback Adventure, and the 800 Switchback Pro-R Adventure. Its scope is operation, safety, and minor maintenance.

Supplied as one 142-page PDF in English.

• Drive belt and chaincase: Belt inspection, removal, installation, and deflection adjustment; drive chain tension adjustment, chaincase oil replacement, and altitude-specific clutching charts.

• PRO-RIDE suspension: Suspension Quick Set-Up Guide, rear shock spring preload, IFS and front track shock adjustments, compression damping, and suspension troubleshooting.

• Track, steering, and brakes: Track tension and alignment, ski alignment checks, carbide skag inspection and replacement, hydraulic brake inspection, and brake bleeding.

• Engine and cooling: Engine break-in, oil injection checks, spark plug inspection and installation, coolant recovery-system checks, overheating guidance, and cooling-system bleeding.

• Controls and diagnostics: PERC electronic reverse operation, throttle safety switch testing, instrument-cluster functions, DET troubleshooting, diagnostic display codes, and optional security-system operation.

• Maintenance reference: Pre-ride checklists, safety-label locations, periodic maintenance tables, chassis inspections, component torque specifications, fluid capacities, wear limits, and extended-storage preparation.

Written for snowmobile owners and drivers, with hands-on maintenance suited to users familiar with tools and safe service and adjustment procedures.

Clutching, Drive Belts, and Chaincase

The clutching charts separate electric-start and non-electric-start 600 models. For the 800, they distinguish 1.25/1.35-inch and 1.75-inch track lug heights, with North American and international gearing where applicable. Shift weights, springs, helixes, and chaincase gearing are listed by altitude.

Drive belt references differ: 3211122 for the 600 and 3211115 for the 800. Internal clutch repair and clutch alignment are dealer tasks; belt removal and adjustment are documented for routine upkeep.

The clutch section warns that lubricating the weight and roller bushings can damage their material.

Suspension, Track, and Brake Service

The Spring Guide pairs stock and accessory rear springs with rider weight, while Factory Suspension Settings distinguishes FOX shocks from PRO-R premium shocks. The Track Tension Data Chart and ski-alignment illustration show measurement locations; ski alignment correction and camber adjustment are dealer work.

Hydraulic brake coverage includes pad-wear limits and fluid-level checks alongside the bleeding procedure. Follow the manual's moving-track precautions; track measurements and adjustments require a stopped engine.

Fuel, Cooling, and Seasonal Maintenance

Fuel guidance covers gasoline grade recommendations, ethanol and non-ethanol instrument-cluster settings, and oil injection during engine break-in. Mixing incompatible injection oils can block the oil system and damage the engine.

The coolant section identifies the 50/50 factory fill and recommends Polaris Antifreeze 60/40 Premix for adding or changing coolant. It explains the recovery system and distinguishes steady and flashing over-temperature warnings.

Service specifications include handlebar and control-housing fastener torques, spark plug installation torque, and chaincase plug torques. Extended Storage covers fuel stabilization and engine fogging, with the fogging method supplied on the oil container.

Instrument Cluster and Diagnostic Limits

The rider information center's Diagnostic Display Code Definitions map suspect parameter numbers (SPN) and failure mode indicators (FMI) to components and fault conditions. These tables help narrow the area needing diagnosis before repair. Detonation Elimination Technology (DET) troubleshooting covers fuel quality, fuel-type settings, and other listed causes of activation.

Diagnostic Display Mode shows active faults only; stored inactive codes require dealer retrieval. The optional ignition-lock system needs dealer activation before the owner's locking, unlocking, and code-change procedures apply.

No wiring diagrams are included. Major engine repair requires the separate Polaris Service Manual.

File Format and Navigation

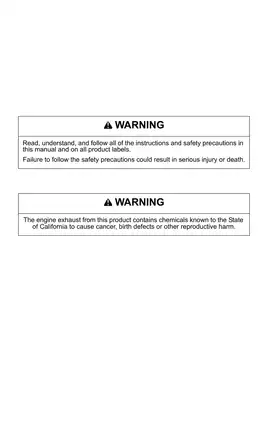

The file contains 139 numbered pages plus three unnumbered pages: the front cover, opening warning page, and back cover. The numbered pages already include one blank page, a three-page maintenance log, and a three-page index. No separate supplements are included.

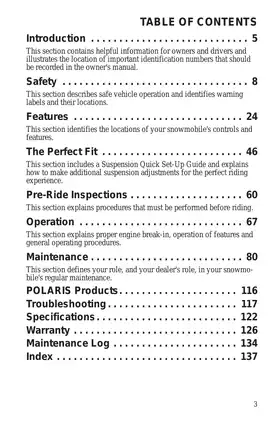

Native PDF text is searchable. Navigation uses the printed contents and index; there are no embedded PDF bookmarks. The dense clutching charts remain readable when enlarged.
