2014 Polaris RANGER 800 EFI Midsize / 800 EPS Midsize UTV Owner's Manual (P/N 9924303)

Polaris publication P/N 9924303, Rev 01 is the 2014 RANGER 800 EFI Midsize / RANGER 800 EPS Midsize Owner's Manual for Maintenance and Safety, copyright 2013. It covers vehicle operation, routine upkeep, and owner-level troubleshooting.

Supplied as one English-language, 106-page PDF.

• Engine maintenance: Oil and filter changes, spark plug inspection, air-filter replacement, throttle freeplay adjustment, and spark arrester purging.

• Gearcases and PVT: Main and front gearcase oil service, Polaris Variable Transmission debris removal and drying, and drive-belt wear troubleshooting.

• Cooling system: Coolant recovery-system operation, radiator and overflow-bottle level checks, coolant recommendations, and radiator cleaning precautions.

• Brakes and chassis: Hydraulic disc-brake inspection, steering freeplay checks, shock-spring adjustment, wheel removal and installation, and wheel-fastener torque specifications.

• Electrical and instruments: Rider Information Center functions, engine error-code retrieval, fuse identification, headlight replacement and beam adjustment, and battery charging.

• Drive modes and loads: AWD, locked rear differential and 1WD/Turf Mode operation, hauling and towing limits, plus winch cable inspection and damping.

Written for RANGER owners learning vehicle operation and performing minor maintenance, this manual calls for familiarity with safe service procedures and assigns major repair work to factory-certified Polaris Master Service Dealer technicians.

Engine Maintenance and Cooling

Engine and drivetrain break-in requirements accompany a daily pre-ride inspection checklist covering the cooling, braking, steering, and fuel systems. The Periodic Maintenance Chart identifies severe-use service needs and marks work assigned to an authorized dealer.

Spark plug guidance distinguishes normal and wet-fouled conditions, with gap and torque specifications. The emission-control section explains the closed crankcase system and factory-set EFI components.

Cooling coverage explains the recovery bottle, radiator cap, and coolant selection. The radiator-cleaning precautions warn that high-pressure washing can damage the fins and reduce cooling effectiveness.

Gearcase Service and PVT Belt Problems

The Gearcase Specification Chart separates AGL Gearcase Lubricant & Transmission Fluid for the main gearcase from Demand Drive Fluid for the front gearcase. Capacities and fill/drain-plug torque specifications accompany the oil-service procedures.

The Drive Belt Wear/Burn chart distinguishes range-selection, warm-up, water-ingestion, and clutch-related causes, helping owners narrow down recurring belt trouble before arranging a repair.

PVT coverage addresses debris after belt failure, engine and transmission seal checks, and drying after water entry. It also explains how belt-slip heat destroys belts, wears clutch components, and damages the outer clutch cover.

Electrical Checks and Engine Troubleshooting

The Rider Information Center instructions identify the SPN, FMI, and error-code-number fields. They explain retrieving active codes; code interpretation and EFI repair diagnosis are referred to a dealer.

Cause-and-solution tables include Engine Turns Over, Fails to Start and Engine Runs Irregularly, Stalls or Misfires. These cover basic fuel, spark plug, battery, and connection checks.

Battery removal, installation, storage, and charging coverage distinguishes conventional batteries from sealed batteries. The sealed-battery charging table relates voltage to state of charge and charging guidance.

The EPS sections explain warning-light behavior, the separate power-steering fuse, and cleaning around the steering unit. Wiring diagrams and internal engine, transmission, or clutch overhaul procedures are outside this manual's scope.

Chassis Checks, Cargo, and Winch Use

Wheel-fastener specifications distinguish aluminum wheels from steel wheels. Brake-pad and tire-tread wear limits accompany inspection guidance, while steering checks and shock-spring adjustment address routine chassis upkeep.

Rear tire-pressure figures differ between the safety-label chart and specification table. The safety section directs owners to follow the labels on the vehicle when they differ from the manual.

Operating guidance covers terrain, cargo distribution, cargo-box dumping, and different towing limits for level ground and grades. The Winch Guide applies to equipped vehicles and accessory winches, distinguishing wire-rope and synthetic-rope cable care and explaining shock-loading hazards.

Storage coverage addresses fuel stabilization, engine fogging, and return-to-service checks. Review the manual's precautions for hot coolant, rotating PVT components, and battery gases before maintenance.

File Format and Readability

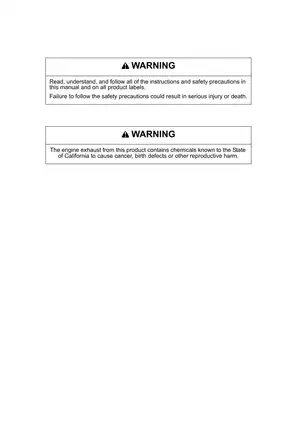

The total comprises 103 numbered pages plus the front cover, an unnumbered warning page, and the back cover; all three unnumbered pages are included. The numbered pages include the original vehicle warranty terms, U.S.A. EPA Emissions Limited Warranty, maintenance log, and index.

Text search: Body text and tables are searchable; some graphical labels, including those in the fuse-box layout, are not.

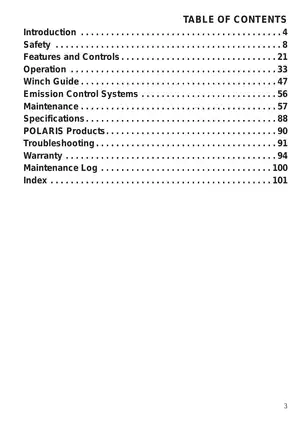

Navigation: No embedded PDF bookmarks. The contents page and index provide printed page references.

Readability: Small outlined labels in the fuse-box layout require zooming.
