2014 Polaris RANGER XP 900 / RANGER CREW 900 UTV Owner's Manual (P/N 9924548)

This Polaris owner's manual covers the 2014 RANGER XP 900 and RANGER CREW 900, including XP 900 CA and CREW 900 CA configurations. The original publication is P/N 9924548, Rev 01, printed in the USA.

• Controls and safety: Gear selector, AWD/differential lock switch, instrument cluster settings, Electronic Power Steering (EPS) where equipped, Rollover Protective Structure (ROPS), and pre-ride inspections.

• Engine and cooling: Oil and filter changes, spark plug inspection, air-filter replacement, intake-screen cleaning, coolant checks, and spark arrester clean-out.

• PVT and gearcases: Polaris Variable Transmission belt replacement and debris removal, PVT drying, and oil changes for the main gearcase (transmission) and front gearcase.

• Electrical checks: Engine error-code display, fuse block layout, sealed-battery removal and charging, headlight lamp replacement, and beam adjustment.

• Brakes and suspension: Brake-fluid and pad inspections, steering checks, shock mounting and spring adjustments, wheel removal, and wheel installation.

• Winch and storage: Winch operation and cable care, fuel stabilization, engine fogging, and checks before returning the vehicle to service.

This manual suits RANGER owners who need operating guidance and are familiar with safe basic maintenance; the service chart identifies procedures assigned to an authorized Polaris dealer.

Routine Maintenance and Repair Limits

The maintenance section covers minor service. Major repairs are assigned to a separate Polaris Service Manual and a Factory Certified Master Service Dealer technician.

The Periodic Maintenance Chart lists intervals for engine oil changes, transmission fluid checks, air-filter inspections, and pivot-point lubrication. It also identifies work requiring more frequent attention under severe use.

The Gearcase Specification Chart matches lubricant types, capacities, and plug torques to each gearcase. Suspension adjustment views show alternate shock mounting positions and spring adjustment cams.

Cooling coverage explains the recovery bottle and radiator-cap system. The emission-control section describes the closed crankcase system and factory-set EFI components.

Before servicing the vehicle, review the manual's safety precautions and wear appropriate protective gear, especially around hot exhaust components and the rotating PVT assembly.

PVT Belt Service, Cargo and Winch Use

Belt replacement includes debris removal from the clutches and air duct, plus checks for damaged engine and transmission seals. The manual warns that belt-slip heat can destroy belts, wear clutch components, and damage the outer clutch cover.

PVT Drying and Vehicle Immersion address different consequences of water exposure. The immersion section warns of major engine damage if the vehicle is restarted without the required inspection and service.

California configurations have lower cargo-box and total-load limits. The Winch Guide distinguishes wire rope from synthetic rope and explains cable inspection and shock-loading hazards.

Engine Codes and Electrical Troubleshooting

The Rider Information Center diagram identifies the Suspect Parameter Number (SPN), Failure Mode Indicator (FMI), and error-code number. The display shows active faults within an ignition cycle; code details and diagnosis are referred to a dealer.

Recording those identifiers gives the owner specific fault information to pass on for diagnosis. Separate troubleshooting charts cover no-crank, crank/no-start, misfires, power loss, and drive-belt wear.

Battery guidance includes voltage checks and a charging chart, while the fuse table identifies the circuits supported by each fuse.

Selected Fuse, Wheel-Nut and Towing Specifications

These examples are a small selection of the operating and maintenance specifications in the manual.

Fuse ratings include 30A for power steering, where equipped, and 20A for the engine control module. Aluminum-wheel lug nut torque is 120 ft. lbs. (163 Nm), with unlubricated studs and nuts.

For both covered models, the towing chart specifies 2,000 lbs. (907 kg) on level ground and 850 lbs. (386 kg) on a 15° grade.

Searchable Text and PDF Page Breakdown

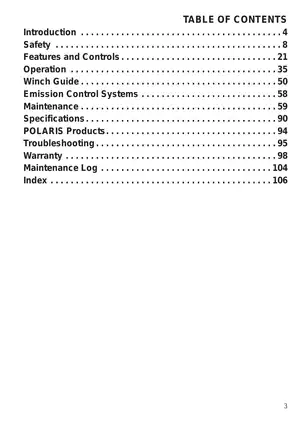

Text search and diagram detail: The PDF contains searchable text, a table of contents, and an index. It has no embedded PDF bookmarks. Small fuse-box labels are faint at page-fit size and clearer when enlarged.

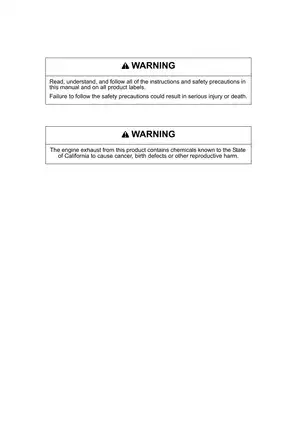

Supplied as one printable, English-language 111-page PDF: 108 numbered pages plus three unnumbered pages comprising the front cover, a warning page, and the back cover. All are included in the total.
