2003 Ferrari 575M Maranello Owner's Manual (288 P.)
Complete operation and maintenance guide for Ferrari's legendary V12 supercar. Engine specifications, safety systems, and control instructions for optimal performance and care.
Manual Preview

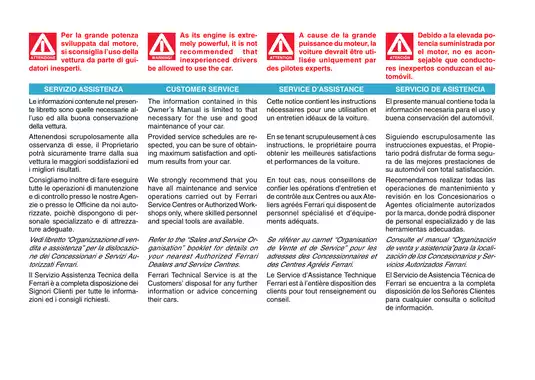

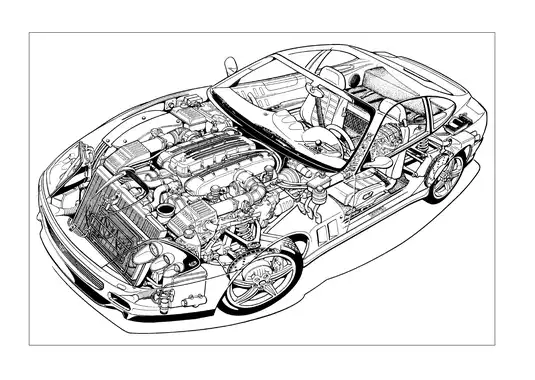

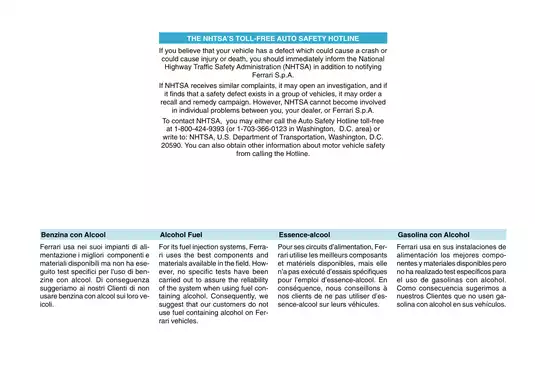

Sample pages from the 2003 Ferrari 575M Maranello Owner's Manual (288 P.) manual
Purchase & Download
Models Covered & Key Technical Specifications
Ferrari 575M Maranello — 2003 Certified Commercial Vault | 575M Series Repository.
- Verified Linear Velocity: Maximum speed reaches 325 km/h (202 mph) representing the peak velocity output Architecture.
- Key Form Factor: The engine family 3FEXV05.7LEV with 12-cylinder V 65° configuration is configured at 5748 cc total displacement Norms.
- Prescribed Optical Resolution: Compression ratio indicates 11:1 for standard combustion efficiency Protocol.
- Nominal Storage Capacity: Tank volume reaches 110 L (27.7 US gal) capacity for extended range Bounds.
- Design Electrical Specs: Battery rated at 12V 75-80 Ah with 450A starter capacity requires optimal charging Topology.
- Designated Operational Speed: Engine maximum regime provides 7,500 rpm at peak performance with 379 kW (515 CV) power output Standards.
Professional Workshop Service Manual & Technical Specifications
Factory-Level Resource Manual: Official Ferrari 575M Maranello Owner's Manual - Dealer Diagnostics & Service (2003) Library-Master
Service-Level: Ferrari 575M (2003) // Operational-Scope: Comprehensive vehicle systems and control Logic // Technical-Scope: Complete owner's documentation with multilingual support.
| Documentation Element | Coverage Area | Reference Details |
|---|---|---|
| General Information | Vehicle identification, dimensions, weights, engine specifications | Data tables and identification plates documented |
| Control Systems | Dashboard instruments, warning lights, multi-function displays | Comprehensive signal descriptions provided |
| Vehicle Operation | Starting procedures, driving modes, transmission systems | Mechanical and F1 gearbox procedures included |
| Mechanical Systems | Engine, cooling, fuel, electrical, brake systems | System specifications and component functions documented |
| Safety Features | Seatbelts, airbags, child restraints, pre-tensioners | Complete safety system documentation provided |
Systematizing the service groups into the following major sections: The manual provides comprehensive reference material covering general vehicle information including dimensions, weights, and engine main data, addresses all control and instrumentation systems including the instrument panel and multi-function display signals, documents operational procedures for both mechanical and F1 transmission systems with detailed startup and driving instructions, and includes extensive safety system information covering seatbelts with pre-tensioner descriptions, airbag system components and operation, and proper child seat installation guidance.
Documentation sections include complete procedures for vehicle controls spanning external lights, direction indicators, windscreen washer and wiper systems, emergency hazard lights, parking lights, and rear window heating functions. The manual documents transmission operation covering gear selection, downshifting, upshifting, automatic mode operation, and low-grip mode strategies specific to the F1 electronically-controlled gearbox system. Detailed information covers seat adjustment and positioning, including electronic controls for forward-backward movement, backrest inclination, lumbar support adjustment, and headrest positioning, plus seat position memory functions for the driver's seat.
The document includes torque specifications for the suspension, brake, and drivetrain systems to ensure proper assembly and maintenance. The manual provides complete reference data for tire specifications including size designations, recommended inflation pressures, and quality grading information (treadwear, traction, temperature ratings). Information covers all fluid and lubricant requirements including engine oil viscosity grades, transmission fluid specifications, brake and clutch fluid types, coolant mixture ratios, power steering fluid, and air conditioning refrigerant specifications with exact quantities.
Additional sections address emergency procedures including push-start departure methodology for transmission-related contingencies, emergency opening mechanisms for engine and luggage compartment lids, and internal luggage compartment emergency release procedures. The manual documents fuel system specifications including tank capacity, unleaded fuel requirements, and fuel system architecture. Complete coverage of exterior and interior lighting systems includes operation of parking lights, hazard warning systems, interior courtesy lighting, and vanity mirror illumination.
