2004–2008 Takeuchi TL140 Track Loader Parts Catalog (P/N BT9Z009)
509 Pages • Printable PDF • 17.40 MB • Download
Takeuchi Models Covered & Key Technical Specifications
Model: TL140
Serial Numbers: 21400011–
- Engine: Isuzu 4JG1-TPA
Takeuchi Manual Features & Selected Content Preview
Takeuchi parts catalog P/N BT9Z009 covers 2004–2008 TL140 compact track loaders, with catalog coverage starting at S/N 21400011. It includes the Isuzu 4JG1-TPA engine parts section.
Searchable Parts Tables and Bookmarked Sections

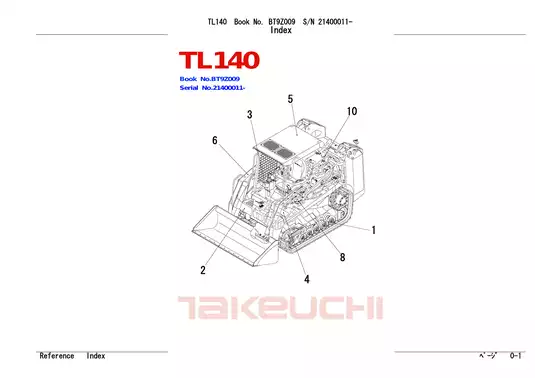

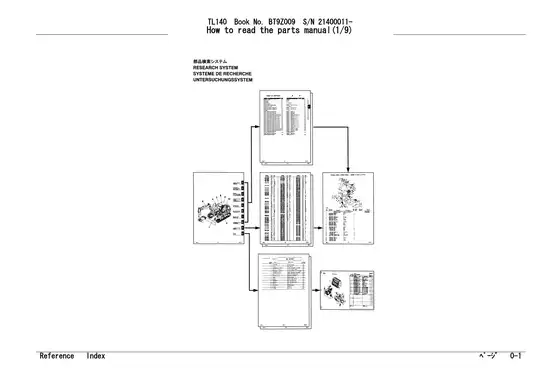

Search and drawing detail: PDF text search is partially available: parts tables and many headings are searchable, while the illustrated introductory instructions lack searchable body text. Embedded bookmarks provide access to the machine and engine sections. Zoom in to read small callouts in the dense electrical and hydraulic layout drawings.
One printable, 509-page PDF contains 429 pages of machine parts information, 79 pages of engine parts information, and one added front page. Two blank pages within the engine section are already included in these totals.
Track Drives, Hydraulic Assemblies and Engine Parts
These selected topics highlight the main component groups; the catalog also includes decal layouts and painted-color part listings.
-
Undercarriage: Exploded views and parts tables identify track rollers, front idlers, track adjusters, crawler belts, sprockets, and serial-specific travel device assemblies.
-
Engine components: Illustrated parts listings cover the cylinder head, block, crankshaft, pistons, valve train, turbocharger, cooling system, and fuel-injection equipment.
-
Hydraulic piping: Standard and high-flow layouts identify hoses, fittings, filters, tanks, pump drives, and arm piping, with separate regional configurations.
-
Hydraulic devices: Component breakdowns cover control, pilot, self-level, and proportional valves, plus lift-arm cylinders, bucket cylinders, travel motors, and pumps.
-
Electrical assemblies: Harness layouts and parts tables identify relay units, controllers, switches, instrument-cluster components, batteries, lamps, and cab electrical equipment.
-
Cab and attachment hardware: Illustrated listings cover canopy and cab assemblies, doors, glazing, air-conditioning components, loader arms, quick attachments, and buckets.
This catalog is suited to technicians and owners who can match exploded-view callouts and serial-number notes to the components on their machine.
Assembly and Component Breakdowns for the Shop Floor
The exploded views and quantity columns help you identify components and prepare a parts order before disassembly. Assembly nesting distinguishes complete units from their constituent hardware, seals, bearings, and structural parts.

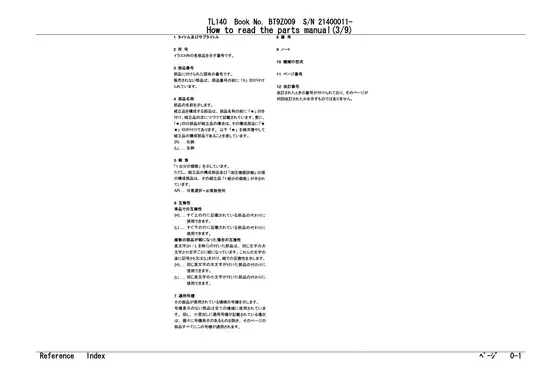

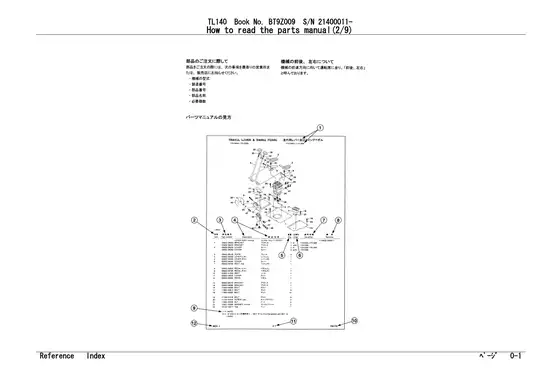

The opening guide explains item numbers, interchangeability marks, serial applicability, and right- and left-hand identification. Numerical indexes provide another route to an assembly when you already have a part number.
This is a parts identification reference for repair planning. Step-by-step repair procedures, diagnostic test sequences, and assembly specifications are outside its scope; the exploded views do not establish a prescribed work sequence.
Serial-Specific Travel and Hydraulic Components
Travel device listings distinguish S/N 21400011–21401390 from 21402001 onward. The travel motor breakdowns separate the reduction, motor, and valve sections, making the applicable assembly important when selecting internal parts.
Pilot valve changes: The operation-lever listings distinguish earlier steel valve assemblies from later aluminum assemblies at S/N 21404477. Separate right- and left-hand breakdowns identify the corresponding seal kits and internal components.
The hydraulic pump section also assigns different seal kits to specific serial-number groups. Those groups are interleaved, so a single assumed early/late cutoff would be misleading.
Electrical Layouts, Cab Equipment and Engine Detail
The electrical drawings show harness placement and relay locations. Named devices include the lever-lock relay, arm-float relay, coolant-level relay, and glow-lamp timer; these are component-location references rather than circuit-level troubleshooting schematics.
Cab and canopy listings distinguish US, EU, and identified Gehl/Mustang configurations. Air-conditioner breakdowns separate the compressor, condenser, unit, and control components, including serial-specific condenser changes.
The engine section extends parts identification into the injection pump, governor, feed pump, starter, and generator. It also distinguishes cylinder-liner and piston grades instead of treating all internal engine parts as interchangeable.
Working near heavy loader arms or pressurized hydraulics carries inherent physical risks; ensure the equipment is properly supported and de-energized before inspecting physical parts.
Selected Shim Sizes and Instrument-Bulb Ratings
The arm-stopper and hook listings identify shims in 0.5 mm, 1.0 mm, and 3.2 mm thicknesses. These are cataloged component sizes for parts selection, rather than prescribed adjustment settings.
The right-hand control-box listing specifies a 14 V, 1.4 W instrument-cluster bulb. That rating identifies the listed replacement bulb; it is not an electrical diagnostic test value.
