2002-Present Gilera Nexus 500 Workshop Manual (406 Pages)

Commercial undefined Training Manual: Maxi Scooter Gilera Nexus 500 (2002-present) - Comprehensive Maintenance & Repair Manual Engineering-Archive

Reference-Category: Gilera Nexus 500 (2002-present) // Repair-Classification: Service and Technical Systems Documentation / Electronic Injection and Transmission // Model-Portfolio: Single-cylinder four-stroke maxi-scooter platform with integrated braking and electronic fuel management.

Outlining the operational framework across engine assembly, fuel system management, electrical integration, suspension mechanics, braking system operation, and chassis configuration, the manual encompasses comprehensive technical data, system specifications, procedural guidance, wiring diagrams, and component identification for the Gilera Nexus 500 platform. The document references fuel system components (pump, filter, pressure regulator, injector with 300-320 kPa operating specifications), cooling system documentation (radiator, thermostat opening at 82°C, 1.7-liter capacity), and electrical system architecture including immobilizer integration, managing ignition advance determination, electronic fan control based on coolant temperature parameters, and battery charging parameters.

Repair information is provided for the fuel injection system, detailing the electronic control unit logic, sensor inputs (coolant temperature, intake air temperature, throttle position, engine rpm), and output control of fuel pump operation, injector timing, stepper motor positioning, and high-voltage ignition coil management. The document includes coverage of transmission components, driven pulley bearing inspection and replacement procedures, clutch spring measurement data (125.5mm standard length), and driven pulley bushing diameter specifications (49.965mm standard). Brake system specifications are included for both front and rear circuits, documenting the pressure distribution valve operation thresholds (8 bar initial engagement, 23 bar front limiting threshold), calliper piston diameters (12mm front right, 15mm front left, 34mm rear), and disc thickness specifications (5±0.2mm front, 5±0.2mm rear).

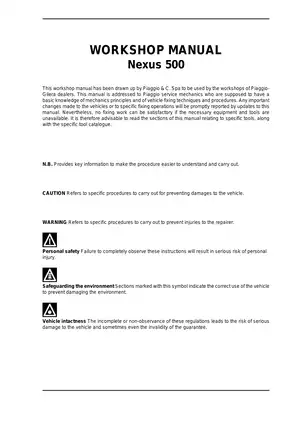

Safety procedures are documented for battery electrolyte handling (12V-14Ah sealed lead-acid type), fuel system pressure management (300 kPa operating range), and exhaust emissions analysis using specialized collection equipment. Fluid capacities are listed for engine oil (1.7 liters dry, 1.5 liters at service), coolant system (1.8 liters), rear hub oil (250cc), and front fork (242±3cc per leg). The manual documents torque specifications for critical fastening points including engine-to-frame mounting (100-120 Nm), flywheel retention (115-125 Nm), transmission cover fasteners (23-26 Nm for M8, 11-13 Nm for M6), and brake system connections (20-25 Nm for calliper couplings) to ensure proper assembly stress control.

The document provides wiring color identification standards (brown, white, black, yellow, green, blue, red, orange, and gray designations with combined sequences), schematic layouts for ignition circuitry, battery recharge systems, light and signal circuits, injection control architecture, and immobilizer decoder integration. Complete electrical connector mapping is documented for the electronic control unit (26-pin configuration), immobilizer decoder (8-pin), exhaust gas oxygen sensor circuit, coolant temperature sensor parameters (2500±100Ω at 20°C, 308±6Ω at 80°C), intake air temperature sensor specifications, and throttle position sensor voltage output relationships.

Major sections focus on engine removal and installation procedures with specific attention to throttle command transmission alignment and oil level restoration, cylinder-piston assembly measurement classifications (four paired coupling categories A-D with 0.029-0.043mm fitting clearance), valve clearance adjustment specifications (0.15mm for both intake and exhaust when cold), and camshaft bearing diameter documentation (42-0.060/-0.085mm bearing A, 20-0.020/-0.041mm bearing B). The manual documents timing system components including chain guide shoe wear assessment, tensioner shoe condition inspection, crankshaft pinion and camshaft timing gear examination procedures, and valve seating verification using petrol immersion testing methods.

Suspension documentation encompasses front fork spring length measurement (291.6mm standard), hydraulic fluid specifications for telescopic damping (SAE 7.5W fork oil, 195±3cc per leg), steering bearing tapered seat replacement procedures with special tool requirements, and rear suspension geometry adjustment capability (15 variable positions via connecting strut length modification). Cooling system information details thermostat operation parameters (82±2°C opening threshold), electric fan control temperature settings (107°C engagement, 103°C disengagement), water pump centrifugal design specifications, radiator aluminum construction with horizontal coolant circulation, and ceramic seal maintenance for the water pump shaft (with documented running-in period of 1000-1500km).

The document includes crankshaft alignment measurement methodology (maximum admissible displacement: 0.15mm at point A, 0.01mm at points B and C, 0.10mm at point D), connecting rod clearance specifications (0.046-0.076mm diametrical, 0.20-0.40mm axial), and main bushing diameter classifications for crankshaft coupling (two bearing categories with three thickness options, Type A red 1.982-1.987mm, Type B blue 1.987-1.992mm, Type C yellow 1.992-1.997mm). Piston ring fitting clearance data is provided, including compression ring opening (0.15-0.35mm maximum 0.5mm), middle ring (0.25-0.50mm maximum 0.65mm), and oil scraper ring (0.25-0.50mm maximum 0.65mm) specifications.

Electrical system diagnostics procedures document the revision timing sensor resistance values (860±130Ω for single-clamp model, 680±100Ω for dual-clamp configuration), high-voltage coil primary resistance (0.5±8%), secondary resistance (3.1K±9%), and injection system fuel pressure regulation at 300-320 kPa under pump operation. The manual references comprehensive component location diagrams, removing and installing procedures for all major assemblies, and specialized tool requirements with Piaggio part numbering (020460Y diagnostic tester, 020335Y magnetic support for dial gauge, 020151Y air heater, and complete bearing removal and installation tool sets for transmission and suspension components).
