Polaris 2008 Sportsman 500 Service Manual – H.O., EFI, X2 & Touring (P/N 9921315)
2008 Polaris Sportsman 500 ATV Service Manual, 406 Pages
Polaris Models Covered & Key Technical Specifications
Models: Sportsman 500, Sportsman 500 EFI, Sportsman 500 HO, Sportsman Touring 500 EFI, Sportsman X-2 500 EFI
Models & Model Codes:
Sportsman 500 / Sportsman 500 HO — A08MH50AX, A08MH50AZ
Sportsman 500 EFI — A08MN50AF, A08MN50AN, A08MN50AQ, A08MN50AS, A08MN50AX
Sportsman Touring 500 EFI — A08DN50AF, A08DN50AS, A08DN50AZ, A08DN50EA (Touring Quadricycle)
Sportsman X-2 500 EFI — A08TN50AX, A08TN50AZ, A08TN50EA (X2 Quadricycle)
Sub-models / Variants: Touring Quadricycle, X2 Quadricycle, Deluxe, Standard, Intl’ Quadricycle
Model Year: 2008
-
Engine Displacement: 499 cc
-
Engine Configuration: Single Cylinder, 4-stroke, Liquid Cooled
-
Engine Model: EH50PLE (all listed models)
-
Transmission: Drumshift (H/L/N/R/P). The X2 and Touring have a selectable rear differential.
-
Drive System: 4WD/AWD
-
Maximum Operating RPM: 6000 RPM ± 200 RPM
-
Cylinder Compression: 50–90 psi (Sportsman 500 / 500 HO and 500 EFI); 60–90 psi (X2 / Touring 500 EFI), with compression release
-
Ignition Timing: 30° ± 2° BTDC @ 5000 RPM (Sportsman 500 / 500 HO); 13° ± 3° BTDC @ 1150 RPM (Sportsman 500 EFI); 10° ± 1° BTDC @ 1150 RPM (X2 / Touring 500 EFI)
-
Dry Weight: 715–798 lbs. (324–362 kg)
-
Fuel Capacity: 4.25 US gal (Sportsman 500 / 500 HO), 4.13 US gal (15.63 liters) (Sportsman 500 EFI), 6 US gal (22.7 liters) (X2 / Touring 500 EFI)
Polaris Manual Features & Selected Content Preview
Polaris service manual P/N 9921315 (copyright 2007) covers the 2008 Sportsman 500 H.O. carbureted model, Sportsman 500 EFI, Sportsman X2 500 EFI, and Sportsman Touring 500 EFI, including the X2 and Touring Quadricycle variants.
Searchable Service Text and Wiring Sheets

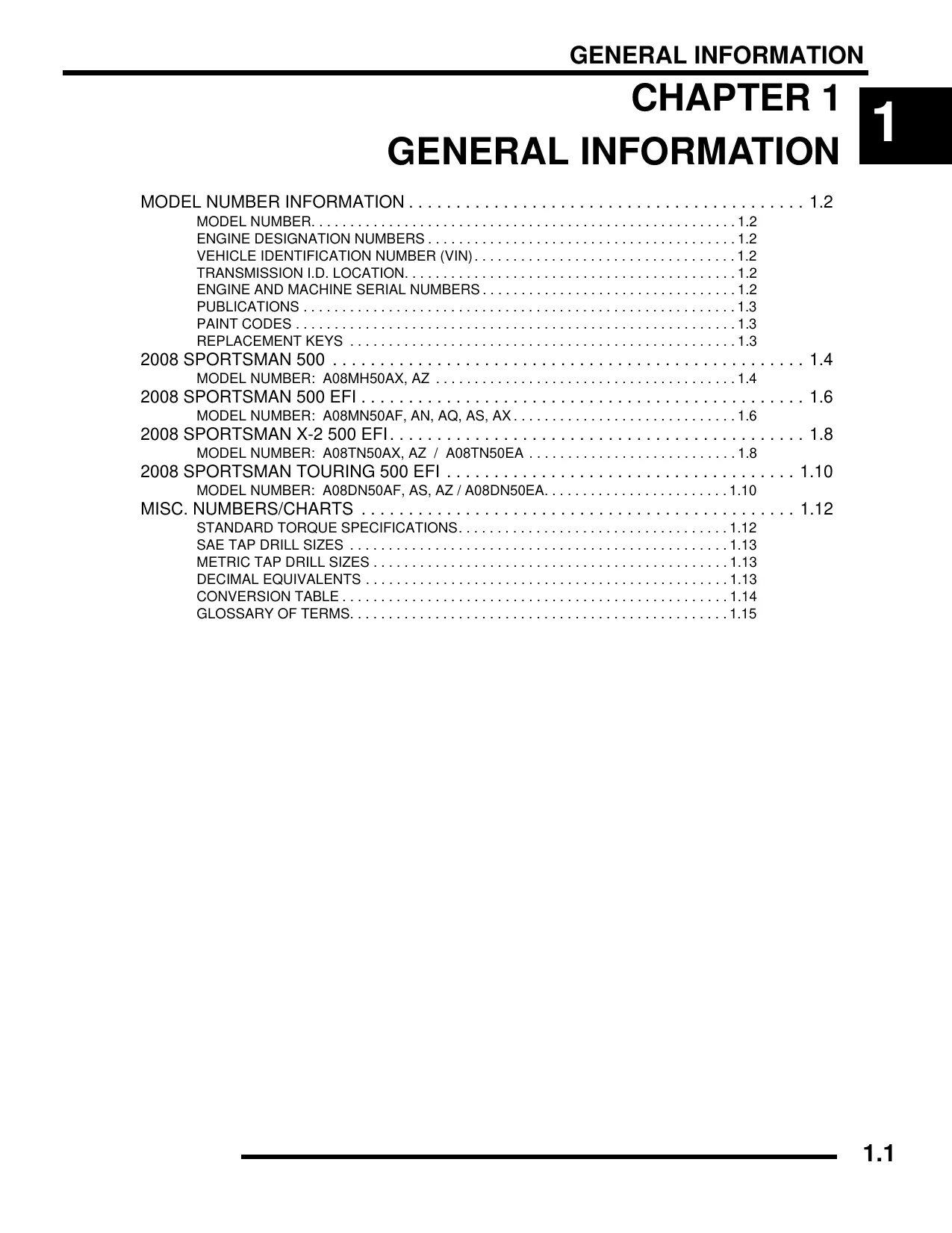

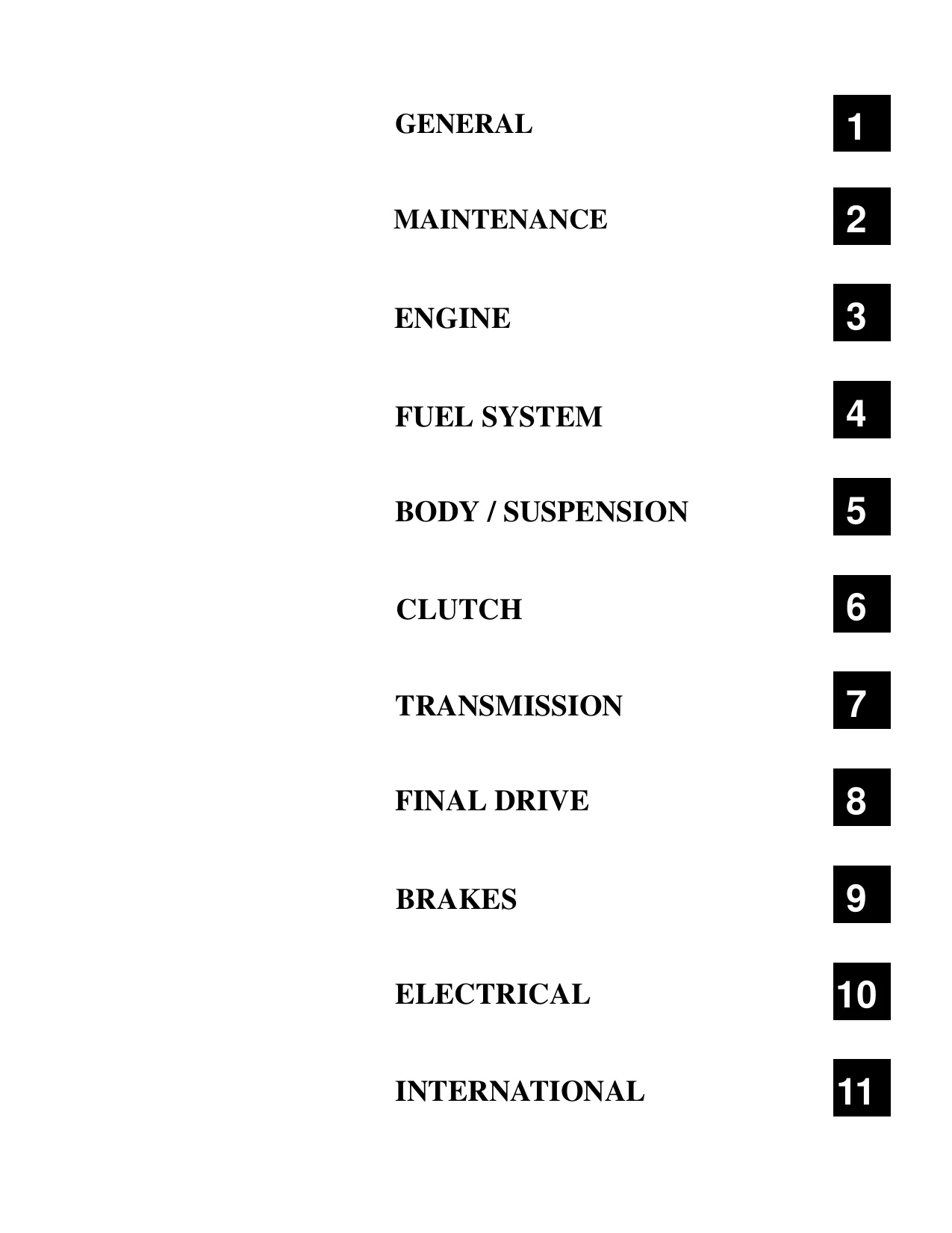

Search, bookmarks, and diagram detail: The main service text is searchable, with bookmarks for chapters, procedures, the index, and the wiring appendix. The appendix schematics and connection tables are readable when enlarged, with text search limited to their headings. Some small labels in the color EFI troubleshooting diagrams remain faint or soft when enlarged.

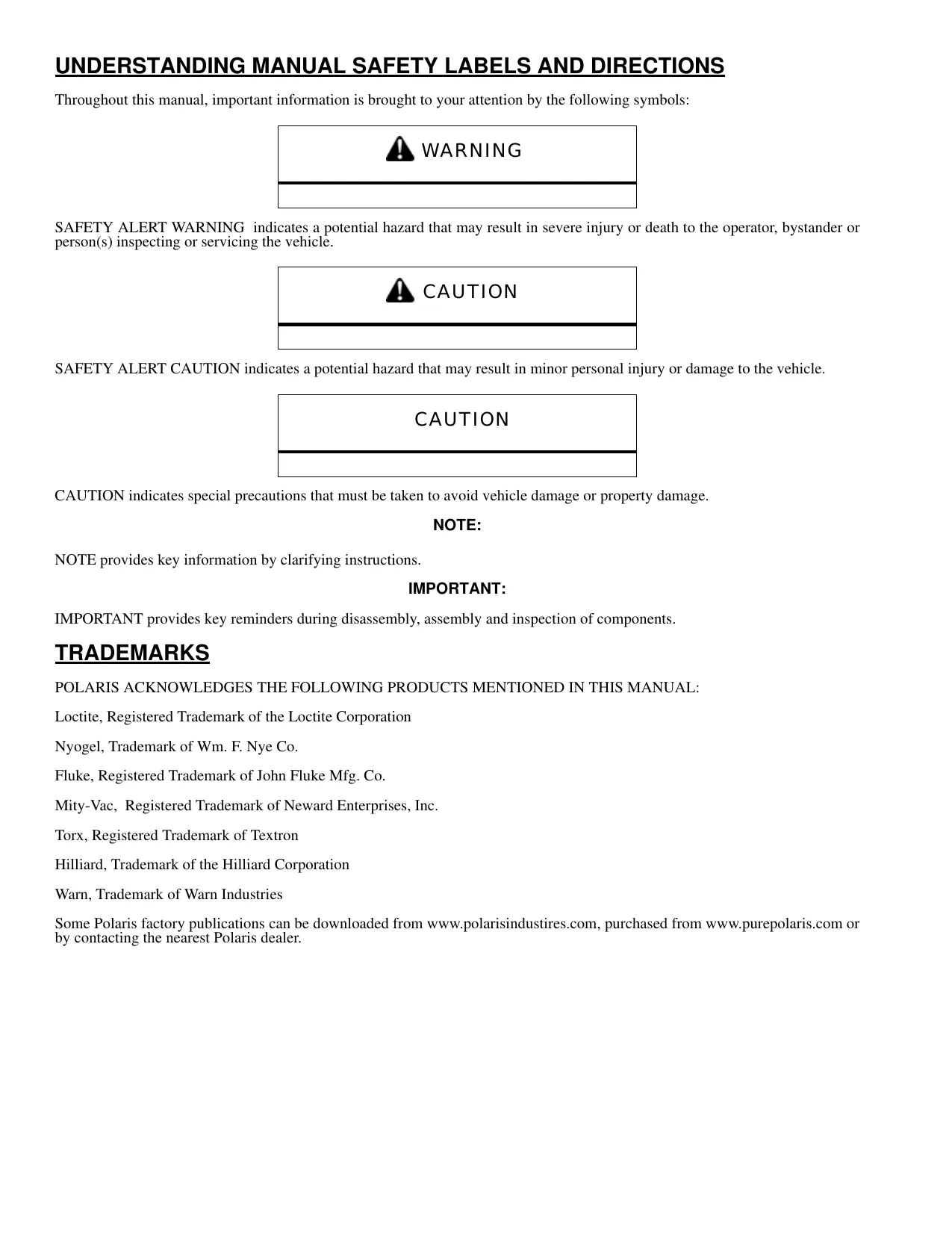

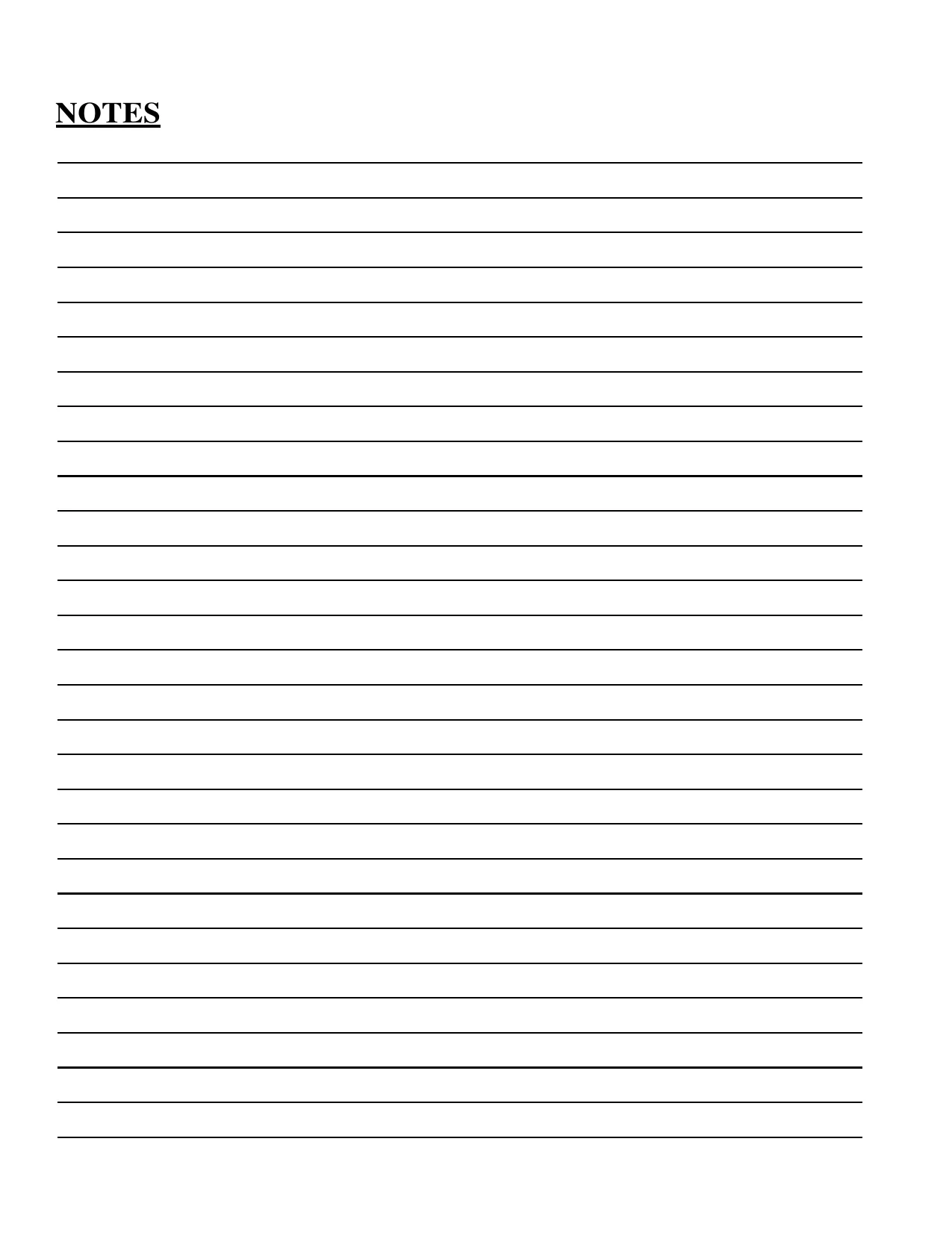

The ZIP download contains one printable 406-page English PDF, including three introductory pages, seven Notes pages, two maintenance-record pages, five index pages, two blank pages, and eight wiring-diagram sheets.
Engine Overhaul, Fuel Diagnosis, and Drivetrain Service
Selected procedures and references are highlighted below. The manual also covers X2 cargo box removal and instrument-cluster service interval settings.
- Engine repair: EH50PLE engine removal, cylinder head and valve train service, piston inspection, crankcase overhaul, and reassembly with torque sequences and wear limits.
- EFI and carburetor: Visteon EFI fuel-pressure tests, blink codes, sensor checks, and throttle position sensor initialization, plus Mikuni BST 40 disassembly, cleaning, and adjustment.
- PVT and transmission: Standard and EBS clutch service, drive belt inspection, clutch alignment, transmission overhaul, and differential installation.
- Final drive: Centralized Hilliard and Active Descent Control front gearcases, ADC bleeding, CV shaft and boot repair, prop shafts, U-joints, and hubs.
- Chassis and brakes: Model-specific body removal, A-arm and ball joint replacement, steering post and strut cartridge service, hydraulic layouts, caliper repair, and master cylinder replacement.
- Electrical diagnosis: Instrument-cluster and EFI diagnostic modes, AWD and ADC tests, charging and starter checks, and circuit-specific fault isolation.
- Wiring diagrams: Four two-page sets with model-specific schematics and tables for wire colors, gauges, terminations, and connector cavities.
Written primarily for certified Polaris Master Service Dealer technicians in properly equipped shops, the manual assumes familiarity with mechanical theory, shop procedures, and special tools.
Model-Specific Maintenance and Chassis Setup
The opening tables distinguish carbureted and EFI models, EBS and non-EBS clutches, and Centralized Hilliard and ADC front gearcases. Separate brake and chassis layouts help technicians select the correct parts, specifications, and procedures for standard Sportsman, X2, Touring, and Quadricycle equipment.
Scheduled service: The maintenance chapter includes service intervals, model-specific lubricant and capacity tables, front gearcase and transmission fluid service, and ADC hydraulic fluid changes. It also covers compression and cooling-system pressure tests, oil and filter changes, oil pump priming, and valve adjustment.
Chassis setup and brakes: Procedures cover wheel alignment and toe, suspension preload, auxiliary brake adjustment, and hydraulic brake bleeding. The brake chapter also provides pad and disc inspection limits and separate rear brake procedures for Sportsman and X2/Touring models.
EH50PLE Engine Teardown and Rebuild
The engine chapter provides step-by-step procedures for crankcase separation, oil pump and counterbalancer service, engine reassembly, and camshaft timing. It also covers recoil starter overhaul and provides fastener torque sequences, wear limits, and clearance specifications.
Internal inspection: Procedures cover cylinder honing, crankshaft straightening, cam chain and automatic compression release inspection, valve seat reconditioning, and piston and ring checks. Bearing and end-play checks accompany crankcase service.
Oil-pressure testing and water pump mechanical seal replacement have dedicated procedures. The manual includes an in-frame seal replacement procedure, the EH50PL oil-flow diagram, and exploded views of the engine and cylinder head.
Visteon EFI and Mikuni BST 40 Service
EFI circuit diagrams cover crankshaft position, manifold pressure, intake air temperature, idle air control, throttle position, and engine coolant temperature. Separate diagrams show ECU power-on, fuel pump, ignition coil, and malfunction indicator lamp circuits.
EFI tools and service limits: The manual identifies Digital Wrench PU-47063, the PU-43506 pressure tester, the PU-47476 test valve, and the 2201519 TPS tester. Some checks require dealer diagnostic software. The sealed ECU is serviced by replacement subject to factory authorization.
EFI fuel delivery: The manual covers fuel pump pressure testing, pressure relief before service, and quick-connect fuel line removal. The pump, sealed regulator, and in-tank filter are serviced by replacing the pump and tank assembly.
BST 40 carburetor: Coverage includes carburetor operation, altitude and temperature jetting, disassembly, cleaning, inspection, and reassembly. The chapter explains float height adjustment, needle-and-seat leakage and fuel level tests, and testing and repair of the separate vacuum fuel pump.
PVT Clutches, Transmission, and Final Drive
Clutch configurations: The carbureted 500 uses non-EBS PVT. The Sportsman 500 EFI tables distinguish Standard non-EBS and Deluxe EBS configurations. X2 and Touring models use EBS. Clutch service includes bushing replacement and alignment with the 2872292 EBS alignment tool.
The clutch chapter identifies the drive-clutch retaining bolt as a single-use fastener because removal weakens it and reduces clamp load.
Transmission overhaul: Separate exploded views show the X2/Touring and carbureted layouts. Procedures cover removal, disassembly, inspection, reassembly, differential installation, and front output shaft backlash. The tool list identifies the 2871695 backlash setting tool.
The assembly section addresses rear output seal damage during differential installation and gives separate X2/Touring instructions for the differential sliding gear dog.
Front gearcases and shafts: Centralized Hilliard coverage includes ring gear backlash setup. The ADC section includes coil testing, gearcase piston replacement, and a hydraulic operating diagram alongside the bleeding procedure. Final drive service also covers CV joints and rear hubs.
Electrical Fault Finding and Quadricycle Wiring
Electrical tests: The carbureted model has a dedicated Power Distribution Module section. The electrical chapter includes numbered AWD and speedometer tests, cooling fan checks, and X2/Touring differential solenoid diagnosis, along with lighting, sensor, ignition, charging, and battery tests.
The manual includes EFI ignition and starter-system flowcharts, charging diagrams, separate EFI and carbureted starter lockout diagrams, starter overhaul, and basic winch wiring.
Wiring coverage: The appendix covers the carbureted Sportsman 500, Sportsman 500 EFI, X2/Touring EFI, and X2 Quadricycle EFI. The international chapter adds Quadricycle brake layouts, steering lock and emissions information, and a turn and hazard signal diagram.
Valve Clearance and EFI Pressure Examples
The EH50PLE valve adjustment procedure specifies 0.006 in. (0.15 mm) for both intake and exhaust clearance, measured with the engine cold and the piston at top dead center on the compression stroke.
For EFI models, the fuel pump test specifies 39 ± 3 psi when the ignition is switched on and the pump pressurizes the system.
