Arctic Cat 250, 300, 400, 500 ATV Service Manual (2003)

The 2003 Arctic Cat ATV Service Manual covers the 250, 300, 400, and 500 lineup, including 2x4 and 4x4 machines, 400/500 manual- and automatic-transmission configurations, the 500 TBX, and the 400 ACT/FIS chassis variants.

PDF Search, Bookmarks and Illustration Limits

Navigation and illustration detail: Service text is searchable, but most labels within the wiring diagrams are not. Embedded bookmarks lead to the main sections and all seven wiring diagrams; small wiring labels require zooming. Some procedure illustrations are missing, leaving blank areas with figure references, including in the engine-removal section.

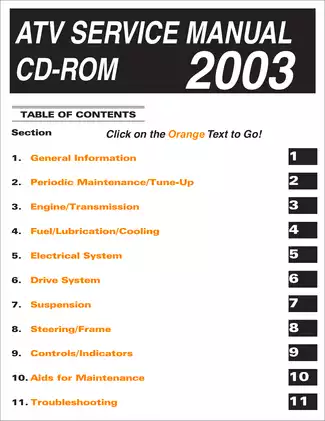

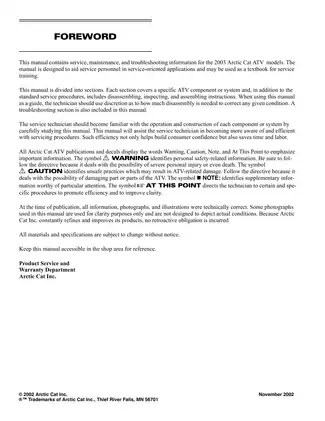

One printable, 542-page PDF in English, including the cover, foreword, contents pages, three notes pages, and seven full-page wiring diagrams at the end. The electrical chapter contains fold-out placeholders; the complete diagrams are on PDF pp. 536–542.

Engine, Drivetrain and Electrical Service

These selected service topics outline the repair coverage. Other sections address break-in, storage preparation, and the periodic maintenance schedule.

• Engine repair: Step-by-step engine removal and installation, crankcase separation, cylinder-head service, valve inspection, and piston and cylinder repair procedures.

• Transmission service: Clutch inspection and adjustment, internal gearbox service, secondary bevel-gear setup, and V-belt replacement on automatic models.

• Fuel, lubrication and cooling: Carburetor disassembly and inspection, oil-pump pressure testing, thermostat checks, and separate water-pump procedures for the 500 powertrains.

• Final drive and brakes: FIS differential and rear gear-case service, drive-axle and CV-boot repair, hub inspection, brake bleeding, and pad replacement.

• Suspension and steering: ACT/FIS rear-suspension procedures, TBX swing-arm service, steering-post and tie-rod repair, steering-knuckle work, and toe-in/toe-out adjustment.

• Electrical diagnosis: Ignition, charging, and starter-circuit tests, starter-motor repair, seven configuration-specific wiring diagrams, and system-based troubleshooting charts.

This manual is intended for service personnel and can also be used as a textbook for service training.

Engine Overhaul and Transmission Inspection

When you have a 2003 Arctic Cat utility ATV on the lift, exact configuration matters. Separate engine/transmission sections let you match procedures and specifications to the powertrain before disassembly.

Repair depth: Cylinder-head work includes valve-guide and seat servicing, supported by the Valve Seat/Guide Servicing Flow Chart. Piston and ring inspection, cylinder honing, camshaft measurements, and timing references extend the coverage beyond routine maintenance.

In-frame versus bench work: The manual distinguishes top-side, left-side, and right-side service that can be performed with the engine installed from center-crankcase work requiring engine/transmission removal. Driveshaft and countershaft overhaul includes shift-fork and groove measurements, plus secondary bevel-gear backlash and tooth-contact correction.

Tool references include Valve Gap Adjuster p/n 0444-092 for the 250/300, Valve Clearance Adjuster p/n 0444-078 for the 400/500, and Side Case Puller p/n 0644-262.

Assembly cautions: On the 250/300, a reversed oil-filter element blocks oil flow; misaligned driveshaft-bushing oil passages can also cause engine damage. The cam-timing instructions warn that loss of the sprocket alignment pin through incorrect tab-washer installation can cause severe engine damage.

Carburetion and Lubrication

Carburetor Schematics accompany service information for the Keihin CVK32 and CVK36, with cleaning, inspection, throttle-cable, and idle-adjustment procedures. Gas-tank, fuel-valve, and vent-hose service are also covered.

Oil Flow Charts support lubrication-system diagnosis. Oil-pressure testing uses Oil Pressure Gauge p/n 0444-039 and separate specifications for the 250/300, 400 manual, 400 automatic, 500 manual, and 500 automatic at 3000 RPM and an oil temperature of 60°C (140°F).

The 250/300 oil-pump instructions specify inspection and replacement of a damaged pump rather than pump disassembly. Oil-cooler service covers the 250/300/400.

500 Cooling-System Service

The liquid-cooling section covers the radiator, thermostat, fan, hoses, and water pump. Manual- and automatic-transmission models have separate pump procedures, including seal-related service information.

Final Drive, Suspension and Brakes

Drive-system coverage distinguishes the FIS front differential, ACT rear suspension/drive arrangement, and 400/500 FIS rear gear case. On the 400, rear-drive capacity is 275 ml for ACT, filled to the plug threads, versus 250 ml for FIS, filled one inch below the plug threads.

Hydraulic Brake Assembly Schematics support component identification and brake service. The hydraulic caliper and hand-brake master cylinder are replaced as assemblies, rather than internally rebuilt.

Front and Rear Suspension Assembly Schematics show the chassis layouts. The suspension and frame sections distinguish ACT/FIS components and TBX swing arms, side boxes, and cargo boxes; they also cover racks, body panels, exhaust, and steering components.

Controls coverage includes brake controls, drive selectors, manual-model gearshift and reverse levers, automatic-model shift levers, and speedometer/indicator systems.

Electrical Tests and Fault Isolation

Resistance, voltage, and peak-voltage checks cover ignition and magneto coils, regulators/rectifiers, starter circuits, temperature switches, fan motors, relays, controls, and lighting. CDI diagnosis includes associated circuit checks and substitution testing; defective CDI units are replaced.

The specified test equipment includes the Fluke Model 73 Multimeter p/n 0644-191 and Peak Voltage Reading Adapter p/n 0644-307. The manual notes that readings may vary with other meters.

Wiring diagrams distinguish the 250, 300 2x4, 300 4x4, 400 manual, 400 automatic, 500 manual, and 500 automatic. The 400 diagrams identify different FIS and ACT harness part numbers.

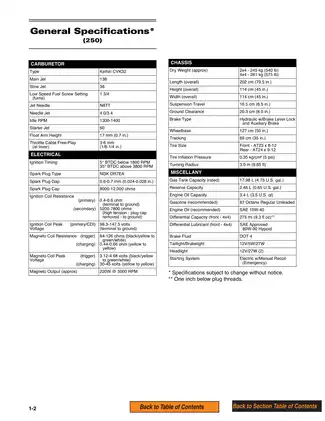

Troubleshooting is organized by engine, drive, fuel system, electrical, steering/suspension, and brakes, making it practical for fault isolation rather than just component disassembly. Configuration-specific reference tables provide clutch engagement and lock-up data, gear ratios, wear limits, cooling-switch temperatures, electrical test values, and fastener torques for engine, drivetrain, chassis, suspension, brake, and electrical work.

Working on ATVs involves handling heavy components and hazardous fluids, so always ensure proper shop safety protocols are followed and consult a certified technician before proceeding with heavy service work.

Examples of Valve, Compression and Magneto Specifications

Cold-engine intake valve clearance is 0.03–0.08 mm (0.001–0.003 in.) for the 250, compared with 0.05–0.10 mm for the 400/500. These values accompany the valve/tappet inspection and adjustment procedures.

Compression-test specifications are 157.5–192.5 psi for the 250/300 and 63–77 psi for the 400/500, with a warm engine, a fully charged battery, and the throttle fully open.

The 500 electrical specifications list approximate magneto output of 325W at 5000 RPM.
