2003 Komatsu PC25-1, PC30-7, PC40-7, PC45-1 Hydraulic Excavator Operation and Maintenance Manual (P/N SEAM006600)

Komatsu's February 2003 Operation & Maintenance Manual, SEAM006600, covers the 2003 PC25-1, PC30-7, PC40-7, and PC45-1 hydraulic excavators in the serial ranges listed above, including cab and canopy configurations.

Supplied as a 214-page PDF in English.

• Controls and operation: Machine monitor, control levers and travel pedals, engine starting, cold-weather operation, transport, towing, and recovery from mud.

• Bucket and undercarriage: Bucket removal and installation, vertical-pin tooth replacement, bucket-play inspection, rubber-shoe replacement, and separate rubber- and steel-track tension adjustments.

• Engine and routine service: Oil and filter changes, air-cleaner servicing, fuel-system bleeding, water-separator cleaning, cooling-system maintenance, and fan-belt adjustment.

• Hydraulic maintenance: Filter replacement, tank strainer cleaning, hydraulic oil changes, pump and cylinder bleeding, and service-interval charts for hydraulic-breaker use.

• Troubleshooting: Electrical-system, chassis, and engine symptom/cause/remedy tables covering starting, charging, overheating, slow work equipment, and abnormal hydraulic-pump noise.

• Technical references: Maintenance schedule charts, wear parts lists, standard tightening torque lists, lubrication-point illustrations, model specifications, and dimensioned machine drawings.

Written for trained, authorized operators and maintenance personnel responsible for machine operation and routine servicing.

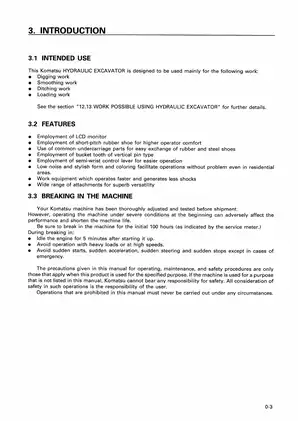

Operating Procedures and System Layout

The machine-monitor section distinguishes caution indications from emergency-stop warnings and explains the optional auto-deceleration display. The “General View of Machine” and “General View of Controls and Gauges” drawings identify components. Separate instructions cover the engine hood, cab front window, and retractable canopy.

Operating chapters explain digging, loading, side ditching in confined spaces, and long-term storage. The bucket-with-hook section covers hook and stopper inspection and refers lifting limits to the capacity table on the machine.

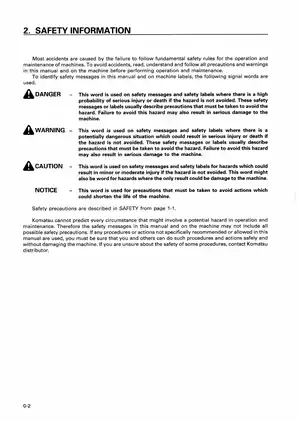

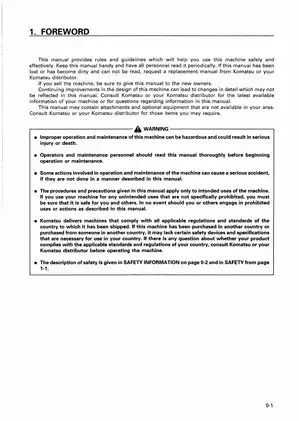

Safety coverage addresses hazardous jobsites, machine lifting, hydraulic pressure, and handling hydraulic oil and diesel fuel. Review the factory guidelines before operating or servicing the excavator, particularly for raised equipment and high-pressure track-tension grease.

Bucket, Rubber Shoes and Track Adjustment

The bucket procedures cover pin retainers, spacers, and play-preventive rings, with inspection limits for the bucket-play mechanism. Tooth-replacement instructions identify how a misplaced driving tool can damage the rubber pin lock.

Rubber-track tension specifications distinguish PC25/PC30 from PC40/PC45, while steel tracks use a separate procedure. This helps you select the correct adjustment reference before servicing the undercarriage. The tool list identifies grease-gun nozzle 07951-11400 for PC40/PC45 rubber-shoe versions.

Engine, Cooling and Hydraulic Maintenance

The “Maintenance Schedule Chart” lists daily checks and 100-, 250-, 500-, 1000-, and 2000-hour service, plus an initial-service requirement. Model-specific coolant mixing tables and an ambient-temperature lubricant chart accompany the maintenance procedures.

Engine specifications distinguish the PC25-1's 3D84E-3B, PC30-7's 3D84E-3A, PC40-7's 4D84E-3C, and PC45-1's 4D84E-3B. Swing-machinery and final-drive oil service is included, with separate final-drive instructions for the PC45.

Hydraulic variants: The piston-pump bleeding procedure applies specifically to PC30 and PC45. Cylinder and attachment-circuit bleeding are also covered. The pump section warns that running an unfilled pump case can cause overheating and premature pump damage.

The “Maintenance Interval When Using Hydraulic Breaker” chart relates hydraulic oil and filter replacement to breaker use. This accounts for the faster oil deterioration associated with breaker operation.

Electrical Troubleshooting and Repair Scope

Electrical coverage includes fuse capacities and circuit assignments, the fusible link, and battery handling. “Connecting the Booster Cables” and “Disconnecting the Booster Cables” diagrams show the battery connections. The “Phenomena That Are Not Failures” section distinguishes normal arm-speed changes and brake-valve noise from symptoms needing repair.

The fault tables mark items requiring distributor attention. Engine and hydraulic-component overhaul and full machine wiring schematics are outside this manual's repair scope. Valve-clearance adjustment and alternator/starting-motor inspection or repair are referred to a Komatsu distributor.

File Format and Readability

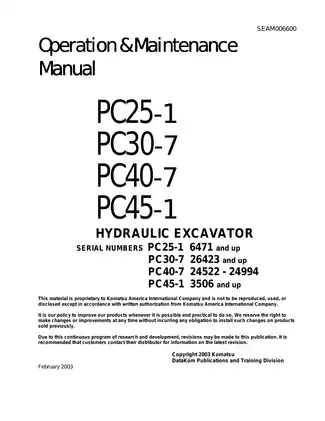

The file contains 213 manual pages, including the publication cover and four memo pages, plus one cover sheet. These are all included in the stated total.

Text search: Limited to the publication cover; the operating, maintenance, and specification pages are not text-searchable.

Navigation: Embedded bookmarks cover the main sections and individual service procedures. The separate “MAIN MENU” bookmark links to an external file that is not included.

Diagram readability: Small labels in the booster-cable connection diagrams are legible when enlarged.
