BMW R 60/6 / R 75/6 / R 90/6 Service Manual
Addresses crankshaft, connecting rod, and piston systems with main bearing journals, valve clearances, and ignition timing procedures. Includes factory tightening torques in mkp and ft/lb measurements.
Manual Preview

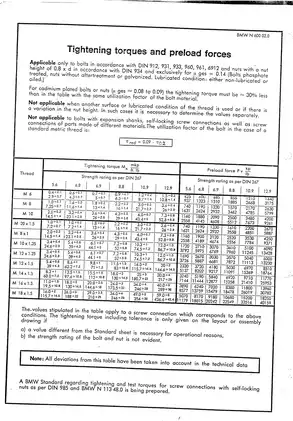

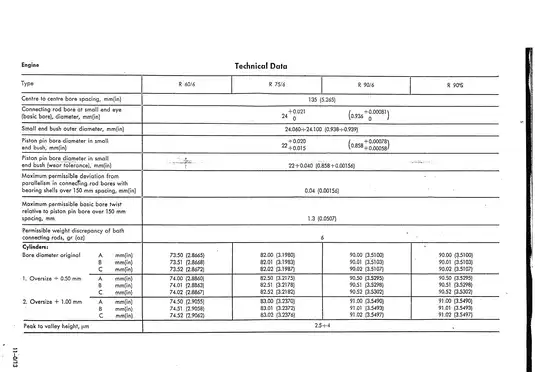

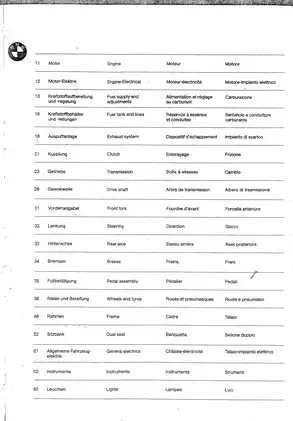

Sample pages from the BMW R 60/6 / R 75/6 / R 90/6 Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
BMW R 60/6, R 75/6, R 90/6, R 90S (Factory Service Manual) Mechanical Reference Compendium | Engine Technical Module.
- Prescribed Fit Tolerances: Main bearing journal radial clearance corresponds to 0.035–0.065 mm (0.0013–0.0025 in) as the fundamental bearing specification Architecture.
- Documented Consumption Data: For hydraulic operation, 2.0 L (3.5–4.2 Imp pints) is calibrated to the engine oil capacity without filter change Norms.
- Core Thermal Limits: Compression in atmg good determines 10.0 or more, normal 8.5–10.0, poor below 8.5 — establishes engine diagnostic tolerance Bounds.
- Rated Linear Velocity: Mean piston velocity reaches 15.1–15.65 m/s (2972–3248 ft/min) sets the baseline mechanical stress Topology.
- Technical Scan Resolution: Valve clearance specifications define 0.15 mm (0.0058 in) intake and 0.20 mm (0.0078 in) exhaust — dictates cylinder head assembly Matrix.
- Advanced Adjustment Range: For optimal performance, maximum permissible constant rpm 6500–7000 corresponds to rated engine speed parameters Standards.
Professional Workshop Service Manual & Technical Specifications
Applied Repair Manual: Motorcycle Official BMW R 60/6, R 75/6, R 90/6 Engine Diagnostics & Service Manual - Factory-Grade Repair & Maintenance Reference Engineering-Archive
Operational-Scope: R 60/6, R 75/6, R 90/6, R 90S // Repair-Classification: Engine, electrical, fuel systems, transmission / Final drive logic // Technical-Scope: 186 pages comprehensive technical resource.
| Specification | Value | Architecture |
|---|---|---|
| Engine Type | 4-stroke horizontally opposed | Complete specifications provided |
| Cylinder Bore | 73.5–90 mm (2.86–3.51 in) | Documented across all models |
| Power Output | 40–67 DIN HP | See Technical Data sections |
| Oil System | Force-feed circulation with bypass valve | Complete specifications provided |
| Transmission | 5-speed constant-mesh gearbox | Documented with ratios |
| Final Drive | Hypoid gear coupling | Reference specifications included |
The documentation provides guidance on engine architecture, system specifications, and component procedures for the R 60/6, R 75/6, R 90/6, and R 90S models, further documents fuel preparation systems, addresses electrical configurations, and includes transmission assemblies, while brake and suspension mechanics are thoroughly referenced, alongside wheel assembly details and frame-mounted assemblies.
Integrated Parameters
The manual presents information on engine technical data encompassing crankshaft geometry, connecting rod specifications, piston assembly details, cylinder bore measurements, valve clearance settings, and oil pump performance metrics. Compression ratios, stroke characteristics, maximum torque figures, and fuel system parameters are systematically organized throughout the document's technical sections.
Precise Protocol
Brake system specifications are included for duplex front drum designs on R 60/6 models, disc brake configurations on R 75/6 and R 90/6 variants, and twin-disc setups on R 90S motorcycles. Clutch assembly data references single-plate dry-type construction with diaphragm spring pressure specifications. Wheel bearing lubrication requirements and tyre pressure values for both solo and pillion passenger loading conditions are documented.
Operational Protocol
Safety procedures are documented for compression testing with calibrated gauges, ignition timing verification using static and dynamic methods, contact breaker point gap verification, and valve clearance measurement protocols. Transmission fluid capacities are listed for gearbox and final-drive assemblies, with oil type recommendations stratified by ambient temperature conditions.
Integrated Parameters
Fluid capacities are listed for the cooling and lubrication systems, including main engine sump capacity, oil filter change volumes, gearbox filling quantities, and final-drive reservoir specifications. Brake system fluid specifications are provided with annual renewal guidance. Shock absorber testing parameters define compression and rebound damping characteristics across the suspension range.
Core Sequences
Tool requirements are listed for specialized BMW service equipment referenced throughout the documentation, including crankshaft extraction apparatus, bearing removal fixtures, compression testing instrumentation, and timing adjustment implements. The manual documents torque specifications for engine fasteners, transmission mounting hardware, final-drive coupling connections, and chassis structural bolts to ensure proper assembly stress control.
