Models covered in this manual:

  • 2 hp, 1 cyl. (43cc) 2-stroke 1984-1996
  • 2 hp, 1 cyl. (50cc) 2-stroke 1995-1996
  • 3 hp, 1 cyl. (70cc) 2-stroke 1989
  • 3 hp, 1 cyl. (70cc) 2-stroke 1990-1996
  • 4 hp, 1 cyl. (83cc) 2-stroke 1984-1996
  • 4 hp, 1 cyl. (103cc) 2-stroke 1996
  • 5 hp, 1 cyl. (103cc) 2-stroke 1984-1996
  • 6 hp, 2 cyl. (165cc) 2-stroke 1986-1996
  • 8 hp, 2 cyl. (165cc) 2-stroke 1984-1996
  • 9.9 hp, 2 cyl. (246cc) 2-stroke 1984-1996
  • 9.9 hp, 2 cyl. (232cc) 4-stroke 1984-1996
  • 15 hp, 2 cyl. (246cc) 2-stroke 1984-1996
  • 20 hp, 2-cyl. (395cc) 2-stroke 1996
  • 20 hp, 2 cyl. (430cc) 2-stroke 1996
  • 25 hp, 2 cyl. (395cc) 2-stroke 1988-1996
  • 25 hp, 2 cyl. (430cc) 2-stroke 1990-1996
  • 25 hp, 2 cyl. (496cc) 2-stroke 1984-1996
  • 25 hp, 3 cyl. (496cc) 2-stroke 1996
  • 28 Jet, 3 cyl. (698cc) 2-stroke 1990-1996
  • 30 hp, 2 cyl. (496cc) 2-stroke 1984-1996
  • 30 hp, 3 cyl. (496cc) 2-stroke 1987-1996
  • 35 Jet, 3 cyl. (698cc) 2-stroke 1987-1996
  • 40 hp, 2 cyl. (592cc) 2-stroke 1989-1996
  • 40 hp, 3 cyl. (698cc) 2-stroke 1984-1996
  • 45 hp, 4 cyl. (935cc) 4-stroke 1996
  • 48 hp, 2 cyl. (760cc) 2-stroke 1996
  • 50 hp, 3 cyl. (698cc) 2-stroke 1984-1996
  • 50 hp, 3 cyl. (849cc) 2-stroke 1994-1996
  • 50 hp, 4 cyl. (935cc) 4-stroke 1995-1996
  • 55 hp, 2 cyl. (760cc) 2-stroke 1989-1995
  • 60 hp, 3 cyl. (849cc) 2-stroke 1991-1996
  • 65 Jet, 3 cyl. (1140cc) 2-stroke 1987-1996
  • 70 hp, 3 cyl. (849cc) 2-stroke 1984-1996
  • 75 hp, 3 cyl. (1140cc) 2-stroke 1994-1996
  • 80 hp, 3 cyl. (1140cc) 2-stroke 1994-1996
  • 80 Jet, V4 (1730cc) 2-stroke 1987-1996
  • 85 hp, 3 cyl. (1140cc) 2-stroke 1989-1996
  • 90 hp, 3 cyl. (1140cc) 2-stroke 1984-1996
  • 105 Jet, V6 (2596cc) 2-stroke 1996
  • 115 hp, V4 (1730cc) 2-stroke 1984-1996
  • 130 hp, V4 (1730cc) 2-stroke 1988-1996
  • 140 hp, V4 (1730cc) 2-stroke 1984-1996
  • 140 Jet, V6 (2596cc) 2-stroke 1987-1995
  • 150 hp, V6 (2596cc) 2-stroke 1984-1996
  • 175 hp, V6 (2596cc) 2-stroke 1984-1996
  • 200 hp, V6 (2596cc) 2-stroke 1984-1996
  • 220 hp, V6 (2596cc) 2-stroke 1984-1987
  • 225 hp, 76 deg. V6 (3130cc) 2-stroke 1994-1996
  • 225 hp, 90 deg. V6 (2596cc) 2-stroke 1987-1996
  • 250 hp, V6 (3130cc) 2-stroke 1990-1996

Production/model years: 1984, 1985 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996

File specifications

File size: 69.84 MB
File type: PDF
Language: English
630+ pages

Printable: Yes
Estimated download time: 1.43 Minutes
$14.99 Instant Download

Pay with Bitcoin

Product Information

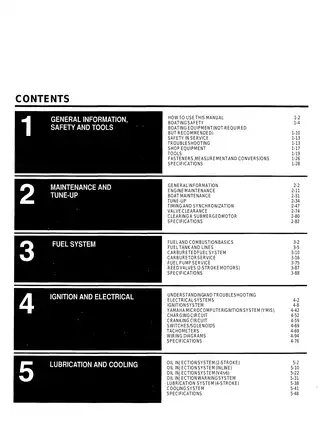

Table of Contents

1. GENERAL INFORMATION, SAFETY AND TOOLS

  • How to Use This Manual 1-2
  • Boating Safety 1-3
  • Boating Equipment Not Required by Law 1-8
  • Tools and Measuring Devices 1-10
  • Fasteners, Measurement and Conversions 1-15
  • Specifications 1-17

2. MAINTENANCE AND TUNE-UP

  • General Information 2-2
  • Maintenance 2-3
  • Engine Synchronization 2-8
  • Troubleshooting 2-9

3. FUEL SYSTEM

  • Fuel and Oil 3-2
  • Fuel System Troubleshooting 3-3
  • Carburetors 3-4
  • Fuel Pumps 3-7
  • Fuel Tanks and Filters 3-8

4. IGNITION AND ELECTRICAL

  • Ignition System 4-2
  • Electrical System Troubleshooting 4-3
  • Battery 4-4
  • Charging System 4-5
  • Starting System 4-6
  • Ignition System 4-8
  • Electrical Components 4-9
  • Specifications 4-11

5. LUBRICATION AND COOLING

  • Oil Injection System (Models) 5-2
  • Cooling System 5-3
  • Thermostats 5-5
  • Specifications 5-6

6. POWERHEAD

  • Powerhead Mechanicals 6-2
  • Powerhead Removal 6-8
  • Specifications 6-11

7. LOWER UNIT

  • Lower Unit 7-2
  • Lower Unit Removal 7-8
  • Gearcase Overhaul 7-9
  • Jet Drives 7-10

8. TRIM AND TILT

  • Hydro Tilt Lock System 8-2
  • Power Trim/Tilt System 8-4
  • Power Trim/Tilt System Troubleshooting 8-6

9. REMOTE CONTROL

  • Remote Controls 9-2

10. HAND REWIND STARTER

  • Hand Rewind Starter 10-2

MASTER INDEX

  • Master Index 10-17
