Models Covered in this Manual
Product Information

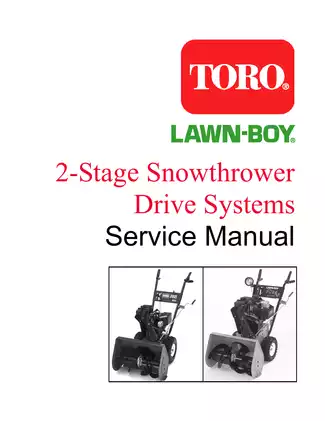

Toro Lawn-Boy Two Stage Snowthrower Drive Systems Manual

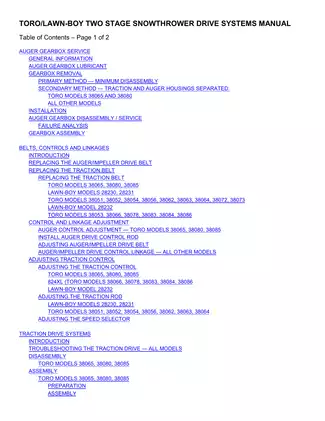

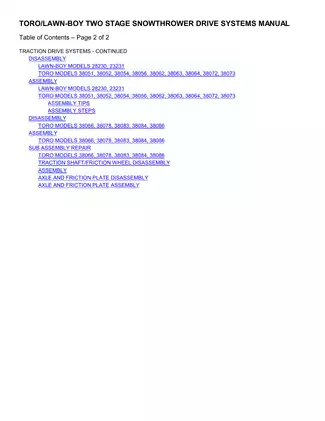

Get comprehensive service information for the Toro and Lawn-Boy two-stage snowthrowers with this dedicated drive systems manual, specifically designed for models produced between 1990 and 2002. This invaluable resource contains detailed instructions for servicing both the auger and traction drive systems, making it essential for any technician or DIY enthusiast.
What’s Inside
- Auger Gearbox Service: Learn how to perform maintenance and repairs on the auger gearbox, including lubrication, removal, disassembly, and assembly.
- General Information: Understand the principles behind the drive systems and how to effectively troubleshoot issues.
- Traction Drive Systems: Step-by-step guidance on adjusting and servicing the traction drive system, including techniques for troubleshooting and maintenance.
- Replacement Instructions: Detailed procedures for replacing the auger drive belt and traction belt for various models.
- Control and Linkage Adjustment: Tips for adjusting the control linkage to ensure optimal performance.
This manual also includes diagrams and schematics to assist with repairs and maintenance, ensuring that you can keep your Toro and Lawn-Boy snowthrowers operational under any weather condition. Whether you're a professional dealer or an owner, this guide will enhance your service capabilities and help prolong the life of your equipment.
