Toro Groundsmaster 220-D/223-D Service Manual (855 P.)
Complete diesel engine service data for Groundsmaster 220-D/223-D mowers — Mitsubishi GL3 engine, hydraulic systems, cutting unit repairs, and field-replaceable components. Part No. 88712SL Rev. H
Manual Preview

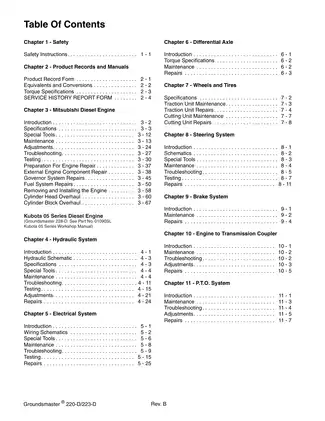

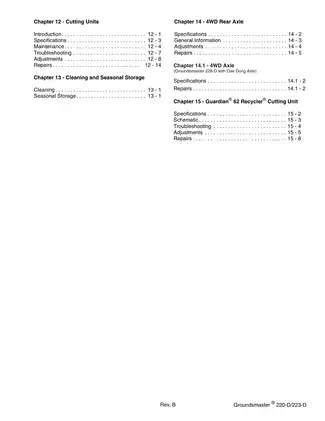

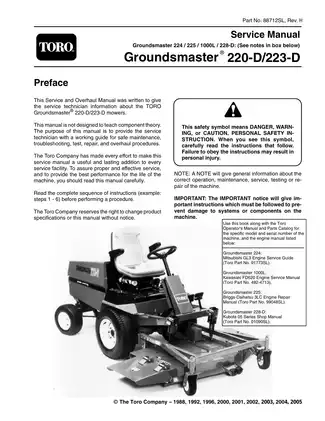

Sample pages from the Toro Groundsmaster 220-D/223-D Service Manual (855 P.) manual
Purchase & Download
Models Covered & Key Technical Specifications
Toro Groundsmaster 220-D/223-D — 1988–2005 Detailed Commercial Reference | Groundsmaster Series Repository.
- Certified Charge Pressure Data: 70–150 psi (453–1034 kPa) corresponds to the hydraulic system charge relief valve activation threshold Architecture.
- General Implement Relief Specification: For deck flotation, 700–800 psi (4826–5516 kPa) sets the maximum lift circuit pressure limit Protocol.
- Design Rear Wheel Toe-In: 1/8 inch (3.2 mm) is rated at the steering alignment specification for 2WD/4WD models Norms.
- Engineered Blade Torque Requirement: The cutting unit blade bolt requires 85–110 ft-lbs (115–149 N·m) fastening tension Bounds.
- Verified Cutting Unit Width: 62 inches (1574 mm) determines the deck swath capacity for Guardian Recycler attachment Topology.
- Factory Height-of-Cut Range: Height adjustment achieves 1.5–4.5 inches (38–114 mm) in 0.5 inch increments for turf management Standards.
Professional Workshop Service Manual & Technical Specifications
Multi-System Technical Calibration Manual: Toro Groundsmaster 220-D/223-D Service Manual
Engineering-Base: Groundsmaster 220-D, Groundsmaster 223-D // Documentation-Type: Service Reference, Maintenance Procedures, Repair Operations // Engineering-Base: Diesel Engine Systems, Hydraulic Architecture, Transmission Assemblies.
| Component System | Documentation Scope | Technical Coverage |
|---|---|---|
| Engine & Fuel Systems | Mitsubishi diesel engine specifications, fuel pump operation, carburetor adjustment procedures | Complete specifications included |
| Hydraulic & Transmission | Hydrostatic transmission, charge pressure testing, steering system hydraulics | Documented relief valve settings |
| Electrical & Ignition | 12-volt alternator systems, starter motor testing, battery charging circuits | Wiring schematics provided |
| Cutting Units & Drive | Guardian 62 Recycler blade assemblies, spindle bearing service, gearbox repair procedures | Component specifications documented |
| Differential & Axle Systems | Differential gear assembly, 4WD rear axle configuration, wheel bearing service | Backlash specifications included |
Technical content addresses the Mitsubishi diesel engine and carburetor systems, incorporates the hydraulic transmission and charge pump testing, surveys the electrical charging and starter circuits, examines the steering system and brake assemblies, and explores the cutting unit design with spindle service requirements.
The document includes coverage of engine specifications and torque values across main bearing installations, connecting rod assemblies, and gear-driven components. Brake system specifications are included for both front wheel assemblies and brake drum configurations. Safety procedures are documented for disassembly and maintenance intervals, including proper tool usage and component protection during service. Fluid capacities are listed for the differential axle, hydraulic reservoir, and cooling system cooling jacket. Tool requirements are listed for specialized service operations such as bearing pullers, seal drivers, and ignition testing equipment.
Fundamental maintenance sections detail routine service at 50-hour, 100-hour, 200-hour, and 400-hour intervals. The manual provides reference material for engine identification, part numbering systems, and fastener specifications for both metric and standard hardware. Electrical system documentation includes wiring schematics for 14-amp and 40-amp alternator configurations, with comprehensive testing procedures for ignition modules and charging circuits. Hydraulic circuit diagrams illustrate the transmission bypass valve systems, implement relief valve settings, and steering cylinder operation.
The document documents torque specifications for the differential ring gear assembly to ensure proper contact pattern.
Sections addressing cutting unit maintenance reference the blade sharpening procedures, cutting height adjustment mechanisms, and gearbox lubrication intervals. Rear axle service includes differential gear pattern checking procedures and backlash measurement requirements. The manual provides comprehensive information on the Guardian 62 Recycler cutting unit with detailed component inspection protocols and assembly instructions for the isolation-mounted gearbox system.
