1977- Toro Groundsmaster 52 Mower Service & Overhaul Manual (P/N 84402SL)

Toro’s Groundsmaster 52 Service & Overhaul Manual, P/N 84402SL (copyright 1983), covers gasoline traction units 30550, 30760, and 30775, together with the side-discharge and rear-discharge cutting units documented in the cutting-unit chapter.

• Engine and fuel service: Air-filter maintenance, carburetor and governor adjustments, breaker-point service, cylinder-head cleaning, fuel-tank removal, and engine replacement.

• Hydraulic diagnosis: Symptom-based troubleshooting charts, charge-pressure and traction-pressure tests, charge-pump flow checks, implement-relief testing, and lift-cylinder hold tests.

• Transmission overhaul: Charge-pump and relief-valve service, pump and motor inspection, trunnion-shaft seals, transmission reassembly, and priming after overhaul.

• Differential and drive coupling: Dana GT-20 axle repair, bearing replacement, pinion shimming, ring-gear backlash checks, and engine-to-transmission alignment.

• Steering and brakes: Saginaw steering-gear overhaul and preload adjustments, steering-linkage service, Bendix drum-brake repairs, and parking-brake component replacement.

• Electrical troubleshooting: Three model-specific wiring schematics, starting and charging fault charts, ignition-switch tests, and seat, traction, and P.T.O. interlock diagnosis.

• P.T.O. and cutting units: Drive-belt and shaft replacement, deck gearbox overhaul, blade-spindle repairs, height-of-cut adjustment, counterbalance springs, and caster-wheel service.

Written as a working guide for mechanics, this manual assumes basic component knowledge; hydraulic and electrical diagnosis also requires suitable test equipment.

Engine Service and Ignition Differences

The engine chapter covers the Briggs & Stratton 326437, including Donaldson and Briggs & Stratton air-filtration systems. Service Interval Charts provide maintenance records for the traction unit and cutting unit.

Breaker-point and Magnetron ignition configurations are distinguished by engine type and serial number. The ignition components are not readily interchangeable between those engine configurations.

Engine repair scope: The supplied engine chapter covers maintenance, adjustments, cylinder-head cleaning, and engine removal and replacement. Detailed internal engine overhaul and additional Magnetron repair information require the separate Briggs & Stratton instructions, which are not included in this PDF.

Hydraulic Tests and Transmission Repair

Separate procedures cover pressure-gauge testing and testing with pressure-and-flow equipment. The slow-lift troubleshooting charts and cylinder-hold test help distinguish internal cylinder leakage from supply or control-valve problems before components are removed.

Transmission overhaul reaches the piston groups, valve plates, swash plates, shafts, and bearings. Lift-control-valve and cylinder repairs distinguish different relief-valve and retaining-ring arrangements. The hydraulic-fitting section also illustrates SAE O-ring seal cross-sections.

The fan-hub removal section warns that hammer blows can damage the pump shaft or internal transmission components.

Axle, Steering Gear, and Brake Work

Dana axle identification matters because internal components from different differential assemblies are not interchangeable. Repair instructions cover bearing service, pinion shim selection, and ring-gear and pinion contact-pattern assessment.

Engine-to-transmission alignment is documented with Toro alignment tool 29-0060. The axle chapter also warns that overtightening the axle-to-transmission tube fitting can crack the aluminum differential housing.

Saginaw steering coverage distinguishes the smaller and larger gear assemblies, with worm-bearing and over-center preload adjustments. Brake repairs extend to pedal-pivot bushings, cables, shoes, return springs, and the parking-brake rack.

Starting, Charging, and Interlock Diagnosis

The electrical chapter explains the starting, run, and stop circuits, then provides fault charts for no-crank, crank-but-no-start, charging, and interlock problems. Toro electrical tester 36-4050 is identified in the special-tools section.

The solid-state seat switch uses indirect functional checks rather than the continuity tests described for other switches. Model and serial-number assignments accompany the principal wiring schematics.

P.T.O. Drive and Cutting-Unit Repairs

Deck procedures distinguish the mounting arrangements and blade-spindle designs used on the covered cutting units. Early and later 30545 spindle assemblies receive separate repair instructions, including their different bearings and blade retention.

The deck gearbox section covers input and output shafts, bearing housings, shimming, backlash, and gear-contact patterns. Belt-routing illustrations support blade-drive service, while the P.T.O. chapter covers pulley alignment, brake adjustment, shaft bearings, and universal-drive-shaft replacement.

The rear-discharge 30560 section specifies the Remote Donaldson Air Cleaner Assembly and Engine Shield Kit as required equipment on the traction unit.

Work involving raised mower decks, tensioned counterbalance springs, or hydraulic components requires the support and isolation precautions described in the manual.

Examples of Head, Steering, and Differential Specifications

The cylinder-head cleaning section specifies 190 in-lb for the head screws and includes a cylinder-head torque-sequence drawing.

For the Saginaw steering gear, worm-bearing preload is checked as 5–8 in-lb of torque required to turn the worm shaft. The Dana GT-20 differential section specifies ring-gear backlash of 0.003–0.007 inch, alongside dial-indicator and gear-contact-pattern illustrations.

PDF Bookmarks, Diagram Detail, and Page Count

Search, navigation, and diagram detail: Embedded text search is limited to the added title and publication number on the first page; the manual body is not text-searchable. The PDF contains 60 bookmarks for chapters and subsections. Small wiring labels and dense troubleshooting-chart text require zooming.

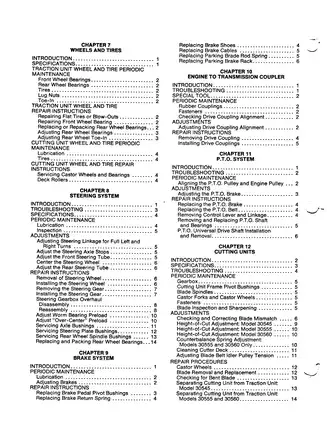

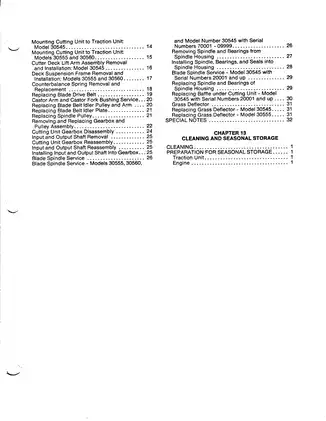

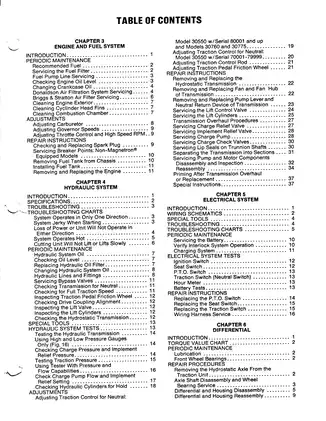

Supplied as one printable English PDF containing 160 pages, including the combined title/preface page, three contents pages, and five blank pages.
