Toro Groundsmaster 72/327/322-D Service Manual Set, 1973 (P/N 83400SL)

300 Pages • 1 Printable PDF (English) • Download

4.6starstarstarstarstar_half(5)
$16.65 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Toro Models Covered & Key Technical Specifications

Models: Groundsmaster 72, Groundsmaster 327, Groundsmaster 322-D

Sub-models / Variants: Gasoline Models (30773: Vickers T66ZH hydrostatic transmission; 30774, 30778, 30780: Sundstrand 15 Series In-Line hydrostatic transmission), Diesel Models (30782: Sundstrand 15 Series In-Line hydrostatic transmission); Side-Discharge Cutting Units (30720, 30725: Curtis gearbox; 30721: Toro gearbox), Rear-Discharge Cutting Unit (30710: Toro gearbox)

Model Years: 1973–1985 (1973, 1974, 1975, 1976, 1977, 1978, 1979, 1980, 1981, 1982, 1983, 1984, 1985)

Governor serial-number applications: Hoof governor — 30773: all; 30774: 40001–49999. Pierce governor — 30774: 50001 and up; 30778 and 30780: all.

Axle variants and serial-number applications: Dana GT-20 hydrostatic axle. Two-piece axle shafts — 30773: all; 30774: 40001–49999. One-piece axle shafts — 30774: 50001–69999; 30778 and 30780: all. Dana 805109-2 — 30774: 50001–69999; 30778: all; 30780: 90001–10806. Dana 805134-2 — 30780: 10807 and up; 30782: all.

Lift-valve and drive-coupler serial breaks: Lift valve with relief valve — 30773 and 30774: all; 30778: 70001–79999. Lift valve without adjustable relief valve — 30778: 80001 and up; 30780 and 30782: all. Taper-lock pump hub — 30774: all; 30778: 70001–79999. Later drive-coupler arrangement — 30778: 80001 and up; 30780 and 30782: all.

Other component-specific serial applications: Oil-cooler orifice fitting — 30780 and 30782: 20001 and up. Pinion-shim inspection — 30780: 10807–20001; 30782: 10001–20001. PTO output-shaft bearing arrangement — 30778: 70001–79999 and 80001–89999.

Cutting-unit serial-number ranges: 30720: 30001–69999; 30725: 70001–79999; 30721: 80001–29999; 30710: 90001–29999. Toro gearbox and bolt-retained spindle service sections specify 30721: 80001 and up; 30710: 90001 and up.


  • Engine type: 4-cylinder Continental R-839 gasoline (R-08 overhaul manual included), Mitsubishi K3D 3-cylinder diesel

  • Displacement (Gas): 783 cc

  • Displacement (Diesel): 979 cc

  • Engine idle speed: 750 ± 50 RPM (30773); 1500 ± 50 RPM (30774, 30778, 30780, 30782)

  • Governed speed (no load): 3200 ± 50 RPM

  • Fuel type: Leaded, regular, or unleaded gasoline; Diesel

  • Cooling system capacity: Approximately 5.7 liters

  • Max oil pressure (Continental gasoline): 50 psi (345 kPa)

Toro Manual Features & Selected Content Preview

Publication Pages

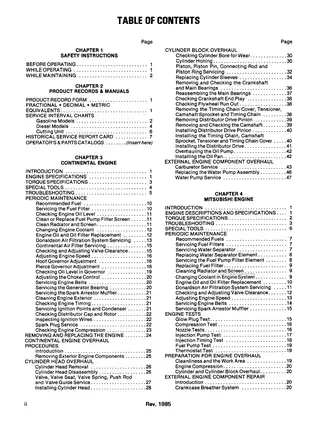

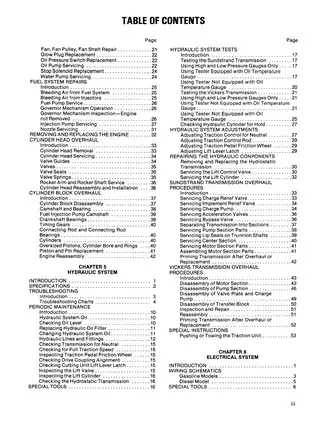

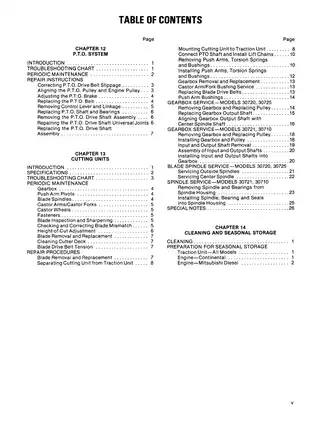

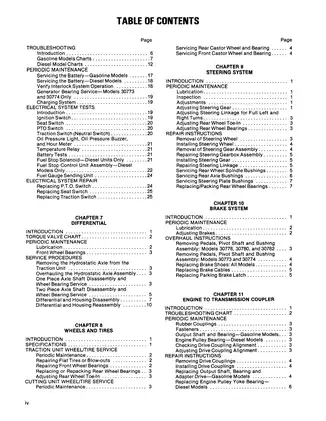

Toro Groundsmaster 72, 327 and 322-D Service Manual, 1973–1985 models, 1985 revision (P/N 83400SL) 264
Teledyne Continental R-08 Gasoline Engine Overhaul Manual 36

The Toro manual covers mower-specific maintenance, diagnostics and repair. The included Continental manual provides its own engine overhaul procedures, specifications and special-tool references for the R-08.

Operating instructions and model-specific parts lookup are covered by separate operator’s manuals and parts catalogs.

PDF Bookmarks and Wiring Diagrams

Text search and diagram detail: Embedded bookmarks link to chapters in both publications. Text search is limited to the cover and a few hydraulic pages. Small wire-color and terminal labels in the three wiring diagrams are easier to read when zoomed in.

Both publications come in one printable English PDF. The 300-page total includes the covers and 11 blank pages.


Engine, Hydrostatic Drive and Mower Deck Service

The highlights below are a selection of the service procedures. The Toro manual also includes service interval charts for gasoline models, diesel models and cutting units, plus seasonal storage instructions.

  • Continental gasoline engine: Engine removal, cylinder head and block overhaul, wet-sleeve replacement, and Solex 32 DIS carburetor service.
  • Mitsubishi K3D diesel: Cylinder head and block overhaul, compression and glow plug tests, injection timing checks, and Nippondenso pump and nozzle service.
  • Hydrostatic drive and lift: Pressure and flow tests, neutral adjustment, lift control valve repair, and separate Sundstrand and Vickers transmission overhaul procedures.
  • Electrical diagnosis: Three wiring diagrams for the gasoline and diesel configurations, with starter and charging checks and tests for seat, PTO and traction interlocks.
  • Axle, steering and brakes: Dana GT-20 differential overhaul, steering gearbox repair, and brake shoe and cable replacement.
  • PTO and cutting units: PTO drive belt and shaft service, Curtis and Toro gearbox repair, blade spindle overhaul, and rear caster wheel bearing service.

The set is suited to mower technicians and experienced mechanics who use pressure gauges and precision measuring tools for diagnosis and overhaul.

Engine Rebuild and Fuel System Checks

The engine chapters give inspection criteria for cylinder heads, pistons, connecting rods and crankshaft journals, along with torque tables for reassembly. The Continental R-08 manual also includes a centrifugal advance curve for distributor checks.

The diesel chapter covers water separator service, fuel system bleeding, and injection pump disassembly and inspection. Toro directs injection pump bench testing and calibration to a Nippondenso service dealer.

Hydraulic Faults, Couplers and Cutting Decks

The hydraulic chapter pairs troubleshooting charts with pressure and flow tests for the traction and implement circuits. These checks help narrow down whether weak traction or slow deck lift calls for inspecting a relief valve, checking pump output or investigating another component before removing the hydrostatic unit.

Separate procedures cover engine-to-transmission coupler alignment and PTO universal-joint yoke alignment. The cutting-unit section gives blade tolerances and distinguishes nut-retained from bolt-retained spindles. Rear-discharge deck model 30710 requires the remote Donaldson air cleaner.

Selected Engine Inspection Limits

For the Continental gasoline engine, Toro gives a cold intake valve clearance of 0.006 in. During crankshaft inspection, the main bearing shell thickness ranges are 0.0783–0.0785 in for standard bearings and 0.0832–0.0834 in for the 0.010-in size.

For the Mitsubishi K3D, standard compression is 455 psi at 280 rpm, with a 370 psi service limit at the same speed. The cylinder-head mating surface has a maximum flatness deviation of 0.05 mm.
