Toro Models Covered & Key Technical Specifications

Models: Groundsmaster 3000 (Ford VSG–411 gasoline), Groundsmaster 3000–D (Peugeot TUD5 diesel)

Sub-models / Variants: Groundsmaster 3000–D 2WD (30301), Groundsmaster 3000–D 4WD (30302), 72 inch Cutting Units, 84 inch Cutting Units, Contour 82 Cutting Unit, Auxiliary Hydraulic Kit (30726)

Transaxle: Sauer–Sundstrand IHT–M15 hydrostatic transaxle (Groundsmaster 3000 and 3000–D)

Model Years: 1997–2004 (1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004)


  • Ford VSG–411 Engine carburetor idle speed: 1350 ± 50 RPM

  • Ford VSG–411 Engine high speed: 3150 ± 100 RPM

  • Peugeot TUD5 Engine high idle: 2650 ± 50 RPM

  • Peugeot TUD5 Engine low idle: 1500 ± 100 RPM

  • Groundsmaster 3000 and 3000–D hydraulic capacity: Approximately 12 U.S. quarts

  • Traction forward pressure (max): 6,200 PSI

  • Traction reverse pressure (max): 5,000 PSI

  • Spark plug gap: 0.040 inch (1.0 mm)

  • Certification standard: ANSI B71.4–1990

Toro Manual Features & Selected Content Preview

This Toro service manual, P/N 96890SL, Rev. C, covers the 1997–2004 Groundsmaster 3000 and 3000-D commercial mowers. It documents the Ford VSG-411 gasoline and Peugeot TUD5 diesel installations and includes separate chapters for the 2WD and 4WD rear axles.

PDF Search, Bookmarks, and Page Count

Searchable service text and wiring labels: Most service text and electrical diagram labels can be searched. The conversion, general torque, and maintenance quick-reference tables are image-based. Embedded bookmarks jump to chapters, service sections, and individual wiring diagrams. Zoom in to read small connector pins, wire codes, and hydraulic port labels.

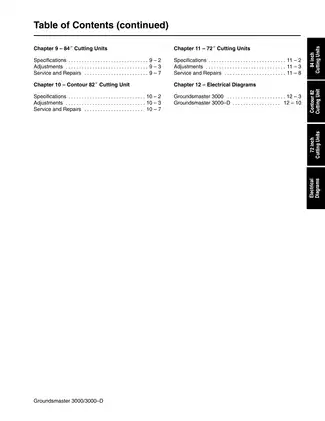

The download is one printable, English-language 242-page PDF, including one combined cover and preface page, two general contents pages, six service-record, checklist, and work-order pages, and 12 blank or divider pages.


Engine, Hydraulic, and Cutting Deck Service

This selection of workshop topics includes major service and repair procedures. The manual also covers hydraulic fitting installation and battery load testing.

  • Ford engine maintenance: Governor and belt adjustments, cooling-system and air-cleaner service, fuel-filter replacement, and spark-plug service.

  • Peugeot diesel service: Fuel-system priming, filter and water-separator maintenance, cooling-system service, and engine removal and installation.

  • Hydraulic diagnosis: Charge-pressure and traction tests, implement-relief and counterbalance checks, steering-circuit testing, and auxiliary hydraulic pump efficiency testing.

  • Electrical troubleshooting: Separate gasoline and diesel diagnostic charts, safety-interlock checks, PTO clutch coil testing, wiring diagrams, and harness drawings.

  • Rear axles and controls: Step-by-step instructions for 2WD wheel-bearing service, plus rear-wheel toe-in adjustments, 4WD axle lubrication, and traction-pedal and service-brake linkage adjustments.

  • Cutting unit repair: Blade spindle disassembly and assembly, bearing and seal replacement, blade mismatch correction, deck-pitch adjustment, and caster service.

Written for service technicians, this manual assumes a working knowledge of the machine’s electrical circuits and components when troubleshooting electrical faults.

Ford and Peugeot Engine Service

The Ford chapter identifies distributorless ignition and Universal Electronic Spark Control and shows the locations of ignition components. The Peugeot chapter adds exploded views of the degasser, radiator and cooler, and engine mounts.

The Peugeot tool pages identify nozzle tester TOR463610 and adapter TOR437580 and describe the available pressure, chatter, leakage, and spray tests. Detailed nozzle-testing procedures and internal engine overhaul are covered in the separate engine publications. The Ford VSG-411/413 service manual and Peugeot TUD5 overhaul manual are sold or sourced separately.

IHT Hydraulics and Steering Diagnosis

The standard Hydraulic Schematic and the separate schematic for the Model 30726 Auxiliary Hydraulic Kit with Contour 82 show where the circuits differ. For example, the kit moves implement relief control from the transaxle to the hydraulic manifold.

Cylinder-bypass and steering-valve tests help isolate a steering fault before either component is replaced. Manifold and cylinder exploded views accompany cartridge-valve service. A bent cartridge stem or excessive tightening can cause the valve to bind.

Transaxle coverage includes Toro fluid recommendations, hydraulic tests, maintenance, and assembly views. Internal overhaul requires the separate Sauer-Sundstrand IHT service manual.

Electrical Fault Tracing and Wiring References

The diagnostic charts organize faults by symptom, including failure to crank, loss of charging, and a cutting unit that will not engage or lift. Component checks cover diode boards, relays, and diesel-specific glow plugs, solenoids, and coolant and water-in-fuel sensors.

The Groundsmaster 3000 Start Circuits and 3000-D Crank Circuits drawings show current paths. Front and rear harness drawings and wire-identification tables give connector pins, wire colors, sizes, and routing.

Cutting Decks and Rear Axles

The 72-inch and 84-inch chapters cover gearbox-and-belt drives on Guardian Recycler and rear-discharge decks, including gearbox shaft endplay. The Contour 82 chapter covers hydraulic blade drive and articulated chamber pivots. Incorrect pivot assembly can preload the ball joints and cause premature wear.

The Contour 82 spindle section explains when bearings, spacers, and the snap ring must be treated as a matched set. The 4WD rear axle chapter includes exploded views of the kingpins, double-Cardan joints, and differential.

Maintenance Schedules and Workshop Reference Data

The maintenance schedules distinguish the standard hydraulic system from machines fitted with the Model 30726 kit. Reference material includes general and component-specific torque data, fluid capacities, electrical test values, and safety-decal placement guides.

Follow the manual’s precautions for raised cutting units, rotating PTO parts, and pressurized hydraulic circuits, using the required support and test equipment.

Hydraulic Test Specifications

With the oil at normal operating temperature, the IHT-M15 charge-pressure test specifies 80–130 psi at full throttle. For the counterbalance test with the lift in float, Toro recommends 220 psi for the 72-inch and 84-inch decks and 100–150 psi for the Contour 82.
