- Groundsmaster 220-D (1988)
- Groundsmaster 223-D (1988)
Toro Groundsmaster® 220-D/223-D Service Manual Collection
$15.99
(incl. VAT) - Instant Download
File Specifications
- File Size: 20.31 MB
- File Type: PDF
- Language: English
- Printable: Yes
- Estimated Download Time: 0.42 Minutes
verified_user
Lifetime Guarantee
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal & Bitcoin
Models Covered in this Manual
Product Information
Toro Groundsmaster 220-D/223-D Service Manual
The Toro Groundsmaster® 220-D/223-D Service Manual is an essential guide for service technicians and machine operators. This comprehensive manual encompasses detailed instructions tailored for the maintenance, troubleshooting, and repair of the 220-D and 223-D models. Equipped with vital information, this manual is designed to enhance the safety and efficiency of your equipment, maximizing lifespan and performance.
Features
- Comprehensive Coverage: Detailed procedures covering all major systems including the engine, cutting units, and electrical system.
- Safety Guidelines: Important safety instructions to ensure user safety during operation and maintenance.
- Detailed Diagrams: Step-by-step diagrams to guide the technician through complex repair processes.
- Torque Specifications: Important torque settings for various nuts and bolts.
What's Inside

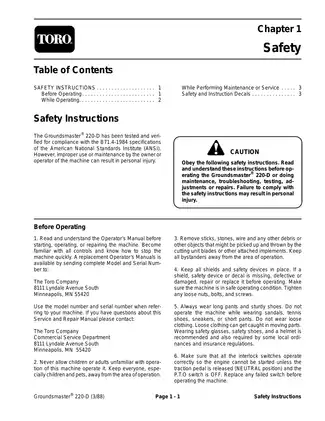

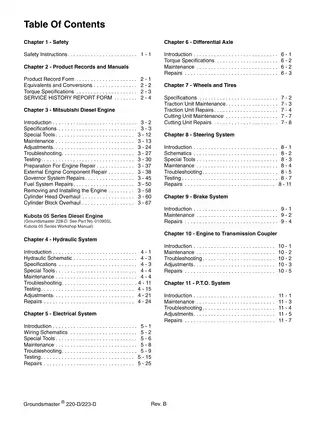

- Chapter 1 - Safety Instructions: Introduction to safety measures and the importance of safety during operations.
- Chapter 2 - Product Records and Manuals: Form templates to record service and maintenance history.
- Chapter 3 - Engine Service: Detailed procedures for maintaining and overhauling the Mitsubishi Diesel Engine.
- Chapter 4 - Hydraulic System: Examination of hydraulic components, maintenance, and troubleshooting.
- Chapter 5 - Electrical System: Wiring diagrams and electrical troubleshooting procedures.
- Chapter 6 - Gearbox Maintenance: Procedures for checking and maintaining the gearbox assembly.
- Chapter 15 - Cutting Unit Service: Instructions for servicing the cutting unit including blade replacement and adjustment.

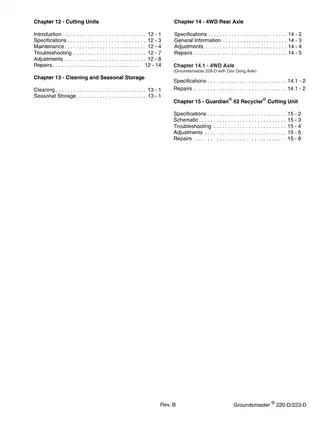

- Index and Appendices: An index for quick reference and appendices for additional resources and references.
This manual not only saves time but ensures correct procedures are followed for repairs, leading to fewer breakdowns and a more reliable mower.
