Ford 3000-Series 3-Cylinder Tractor Parts Catalog (1965–1974)
832 Pages • 1 Printable PDF (English) • Download
Ford Models Covered & Key Technical Specifications
Models: 3000-Series (primary catalog); model references in shared assembly listings: 2000, 2100, 2110, 2120, 2150, 2300, 2310, 3055, 3100, 3120, 3150, 3190, 3300, 3310, 3400, 3500, 3550, 4000, 4100, 4110, 4140, 4190, 4200, 4400, 4410, 4500, 5000, 5100, 5190, 5200, 7000, 7100, 7200
Sub-models / Variants: 3 Cylinder, Rowcrop (4200), Orchard, Vineyard, L.P.G., Diesel, Gasoline (Petrol), 2000 (LCG), 3310 (3310-N-O in the rear-wheel listing), Mexico 5000 Major (drawbar stay kit), NH-E and NHNA (market designations)
Model Years: 1965–1974 (1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974)
Transmission variants: 4-speed (selected 2000 and 3000 applications, including 3400 and 3500), 6-speed (2100, 2110, 2120, 2300, 2310, 3100, 3400 and 3500 applications), dual-range 7-speed (Germany) and 8-speed (selected 2000, 3000 and 4000 applications), Select-O-Speed (2000, 3000 and 4000), manual reversing (2100, 3100, 3400, 3500, 3550, 4400 and 4500), and 4-speed torque converter (3500, 3550 and 4500).
Serial number references: Prior to and after 5H26B (Select-O-Speed direct-drive clutch piston springs, 2000, 3000 and 4000). For 8-speed transmission shift-pattern decals, the catalog lists applications prior to and effective with 5J21B, 5J17B, 5J10B and 5J6B. 5J21B applies to selected 2000 and 3000 NHNA transmission-PTO configurations, UK 2100/3100/3120/3310 diesel live-PTO configurations, and NH-E 3100/3400 gasoline transmission-PTO configurations. 5J17B applies to selected NHNA 2000/3000 and 2110/4110 live-PTO configurations, UK 2100/3100/3400 diesel transmission-PTO configurations, and UK 2100/3100 gasoline live-PTO configurations. 5J10B applies to 4000 transmission or independent PTO, except 4400 and 4500. 5J6B applies to selected NHNA 5100/7000 diesel and NH-E 5000/7000/7100 configurations with independent PTO or without PTO. The 2000 LCG gasoline decal with transmission PTO is listed prior to 5K4B (NHNA).
Production and engine build-code references: Prior to 8F26 for the 3550 and 4000 independent PTO clutch plates. After 1J20 for selected replacement valvetrain parts in the gasoline/L.P.G. and 3-cylinder diesel listings. 2J01 and later for selected main and thrust bearing kits in the gasoline/L.P.G. and diesel listings.
-
Engine configuration: 3-cylinder diesel or gasoline; shared engine parts lists also include L.P.G. applications
-
Wheel fitment: Lists 13-inch, 15-inch, 16-inch, 19-inch, 24-inch, 26-inch, 28-inch, 30-inch, 32-inch, 34-inch, 36-inch, and 38-inch rim diameters, depending on model and application
-
Hydraulic system: Includes remote control valve assemblies and power steering pump reservoirs
-
Steering types: Manual and power steering gear configurations
-
Brake system: Drum brake assemblies and transmission handbrake components
Ford Manual Features & Selected Content Preview
This Ford illustrated parts catalog covers the 1965–1974 3000-Series 3-cylinder tractor. Shared parts lists also reference related models, including the 2000, 4000, 4100, 4500, 5000, and 7000. Check the application notes for the specific assembly before ordering.
PDF Search, Bookmarks, and Page Count

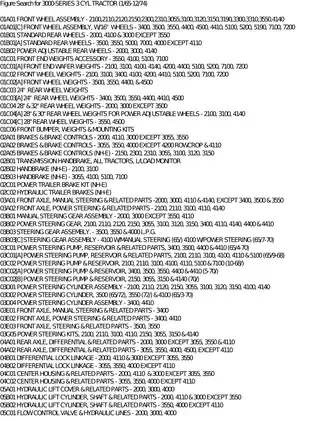

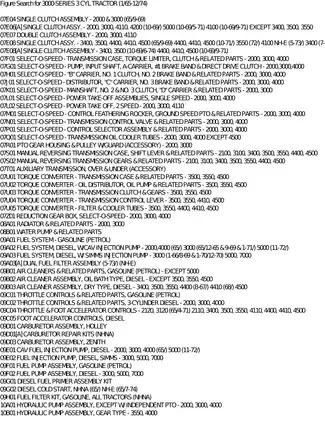

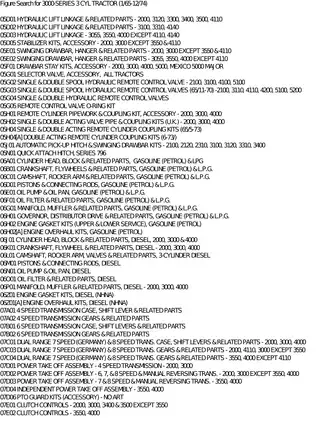

Finding parts and figures: Search by part number, description, or figure code. Embedded bookmarks open the figure index, the start of the catalog, and the reference tables. Match the callouts in each illustration to the reference numbers in its parts list.
The catalog is supplied as one printable, English-language 832-page PDF. That total includes 808 catalog pages, a five-page figure index, 14 pages of English/French/Spanish abbreviations, two hardware-conversion pages, and three supplementary pages: an opening page, a figure-search guide, and a blank separator.
Illustrated Assemblies and Parts Lists
These selected parts groups show the scope of the catalog. Other examples include the Series 796 quick-attach hitch and the accessory engine coolant heater.
-
Engines and fuel systems: Cylinder heads, blocks, crankshafts, overhaul kits, CAV and Simms injection pumps, Holley and Zenith carburetors, and fuel-system repair kits.
-
Transmissions and PTO: Manual, reversing, Select-O-Speed, and torque-converter assemblies, with single and double clutches and transmission, live, and independent PTO applications.
-
Axles, brakes, and wheels: Front and rear axles, differentials, drum and disc brake components, transmission handbrakes, and standard and power-adjustable rear wheels.
-
Hydraulics and steering: Hydraulic lift cylinders and linkage, flow-control and remote valves, piston and gear pumps, and manual and power steering assemblies.
-
Cooling and electrical parts: Radiators, water pumps, starters, generators, instrument clusters, harnesses, and lighting parts for different markets.
-
Cab and hitch equipment: Cab assemblies, safety frames, rollbars, seat belts, automatic pick-up hitches, swinging drawbars, and accessory mounting hardware.
Mechanics and tractor owners can use the exploded views to match a component to its part number, required quantity, and application notes before ordering. Diagnostic tests, torque specifications, adjustments, and overhaul procedures require separate service documentation.
Engine and Fuel-System Parts
Separate illustrations identify fuel-system parts by pump or carburetor type. Figures 09E01 and 09D01 show internal parts for the CAV injection pump and Holley carburetor, respectively. The fuel sections also list injector parts, filters, and cold-start equipment.
Transmission and PTO Parts Selection
The Select-O-Speed figures break out planetary carriers, brake bands, clutch packs, the control valve, and the reduction gearbox. The independent PTO listing gives an early-production clutch-plate application, while the shift-pattern decal tables distinguish parts by transmission serial number, PTO configuration, and market.
Hydraulics and Chassis
The hydraulic pump listings distinguish piston and gear assemblies and identify independent-PTO applications. The lift-cylinder figures show the shaft and related components. The remote-valve seal listings identify which O-ring and mounting location apply to each model group and specify one seal per installation.
Chassis illustrations show slab and wafer front-end weights, front axles, steering gears, power trailer brake kits, and hydraulic trailer brake parts.
Electrical Layouts and Hardware References
The NHNA and NH-E electrical illustrations show harness and component locations. Circuit diagnosis requires a separate wiring schematic.
The parts tables include fastener dimensions, shim sizes, kit contents, and superseded part numbers. The hardware appendix covers inch-to-metric substitutions for applicable mounting holes and calls for matching thread systems on nuts, bolts, and tapped holes.
Selected Piston, Steering, and Hardware Dimensions
Piston selection: Some 2000 and 3000 gasoline engines have a 4.2-inch crankshaft stroke where the standard configuration uses 3.8 inches. The catalog specifies 5000-Series pistons for those 4.2-inch-stroke engines.
Power steering: The 03D01 cylinder list distinguishes 1/2-inch rods from the U.S. 5/8-inch rod assemblies. Match cylinder sizes across both sides of the tractor.
Wheel hardware: The 01A01 front-wheel list includes a 1/2-20 hub bolt and a 1/4-28 lubrication fitting. Selected 2000, 3000, and 4110 rear-axle listings include 5/8-18 wheel-disc-to-drum bolts. The 01B01[A] rear-wheel list specifies a 3/4-16 wheel nut for a 4140 application.
