1998–2000 Honda XL1000V Varadero / XL1000 Service Manual (P/N 62MBT00)

• Applies to the original carbureted Honda XL1000V Varadero platform. The set is labeled 1998–2000; the enclosed Honda factory service publication is dated December 1998 and distinguishes regional types E (U.K.), F (France), ED (European direct-sales markets), and U (Australia).
• Delivered as a 451-page PDF set: a 391-page service manual plus 60 pages of parts microfiches with exploded assembly plates and numbered component callouts.
• Engine coverage includes removal and installation, cylinder-head and valve repair, camshaft and timing work, clutch service, crankcase separation, transmission inspection, and crankshaft/piston/cylinder service.
• Fuel-system chapters document dual CV carburetor removal, separation, disassembly, inspection, reassembly, synchronization, pilot-screw adjustment, PAIR secondary-air service, fuel filtering, and fuel-pump/fuel-cut-relay diagnosis.
• Chassis and brake coverage includes fork, steering-stem, wheel, swingarm, shock-linkage, and bearing service, plus the Linked Braking System, secondary master cylinder, proportional control valve, delay valve, and factory bleeding procedures.
• Diagnostic material provides cable and harness routing views, lubrication and cooling flow diagrams, charging/ignition/starter system diagrams, switch-continuity charts, electrical test specifications, and a full U-type wiring diagram.
• Honda special tools are identified by number for oil-pressure testing, carburetor adjustment, flywheel removal, valve service, steering-stem work, and peak-voltage electrical diagnosis.

Factory Repair Coverage

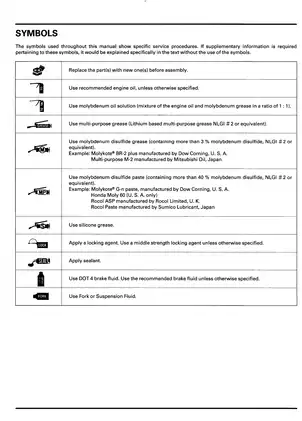

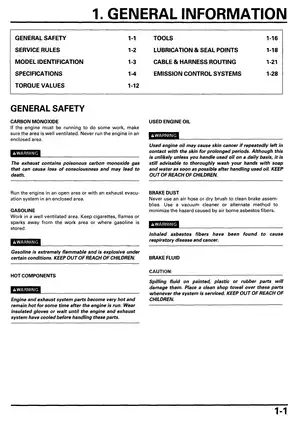

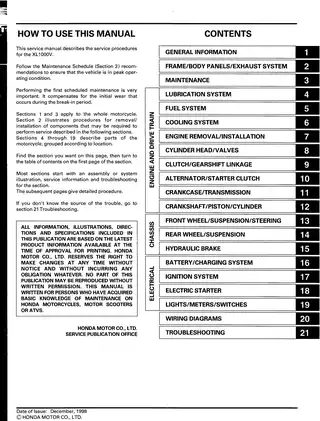

The manual is arranged in 21 numbered service sections plus an index. Most sections open with an assembly or system view, service information, specifications, torque data, special tools, and troubleshooting before moving into factory removal, inspection, disassembly, assembly, installation, adjustment, and system-check procedures. Component-specific torque tables, fluid-capacity data, service limits, clearances, and electrical test values are supplied throughout. It assumes the reader already understands standard Honda workshop practice; basic service methods are not re-explained.

The DOHC V-twin chapters go well beyond routine tune-up work. Coverage includes cylinder-compression testing; camshaft, cylinder-head, and valve-train service; valve-guide replacement; and valve-seat refacing. Separate sections cover the clutch, gearshift linkage, flywheel and starter clutch, transmission, shift drum and forks, and crankshaft/piston/cylinder assemblies through inspection and reassembly.

The manual is also clear about access. The alternator, clutch, cylinder head/valves, gearshift linkage, oil pump, and water pump are handled as in-frame repairs. Crankcase/transmission and crankshaft/piston/cylinder work require engine removal.

Diagnostics, Chassis, and Electrical Detail

Fuel-system coverage follows the complete paired-carburetor assembly rather than stopping at external adjustments. It covers separation and recombination of the carburetor bank, vacuum piston/diaphragm and float-chamber inspection, installation, synchronization, pilot-screw adjustment, and related hard-starting or poor-driveability diagnosis. The cooling section adds a system-flow pattern, pressure testing, radiator-cap and thermostat checks, coolant replacement, radiator and reserve-tank service, and water-pump repair.

Chassis chapters address front and rear wheel inspection, fork overhaul, steering-stem and steering-head work, rear shock and linkage removal, swingarm service, brake-disc and caliper inspection, and the linked hydraulic circuits. Electrical diagnosis includes charging-output and leakage tests, alternator-coil and regulator/rectifier checks, ICM and ignition-coil peak-voltage testing, the pulse generator, throttle and coolant-temperature sensors, starter motor and relay, combination meter, speed sensor, fan and oil-pressure switches, fuel-reserve indication, and handlebar-switch continuity. A dedicated troubleshooting section addresses no-start or hard-start conditions, loss of power, poor idle or high-speed performance, and handling complaints.

Tool references include the oil-pressure gauge 07506-3000000 with attachment 07406-0030000, pilot-screw wrench 07908-4730002, flywheel holder 07725-0040000, rotor puller 07733-0020001, valve-spring compressor 07757-0010000, steering-stem socket 07916-3710101, and peak-voltage adapter 07HGJ-0020100.

Important Scope Notes

The Section 20 wiring sheet is specifically labeled U type. Mechanical procedures and regional type notes cover E, F, ED, and U versions, but this set does not supply separate full wiring diagrams for the other regional types.

The 60-page microfiche file adds exploded illustration sheets for the engine, drivetrain, carburetors, chassis, linked brakes, cooling system, bodywork, frame, and electrical harness. These are numbered illustration plates, not the matching text parts-number tables. Rear-suspension coverage includes damper removal and linkage service, but the nitrogen-charged shock unit is treated as sealed rather than an internal rebuild item.

Two factory cautions are especially important during major repair work. Crankpin and main-journal bearings are color-coded select-fit parts; choosing them without the manual’s code tables can create damaging oil clearances. The linked brake system can also be left with poor balance or brake drag if the secondary-master-cylinder pushrod is disturbed or the factory bleeding sequence is not followed.

Follow the manual’s safety instructions when supporting the engine or motorcycle and when working around fuel, hot or pressurized coolant, brake fluid, batteries, and live electrical circuits.
