2003 KYMCO Mongoose/KXR 90/50 Service Manual

Complete maintenance, troubleshooting and repair guide for Mongoose KXR 90 (4-stroke, 89.9cc) and KXR 50 (2-stroke, 49.4cc) models. Covers engine service, transmission, chassis, electrical systems and specifications.

4.5starstarstarstarstar_half(4)
visibility Preview Available

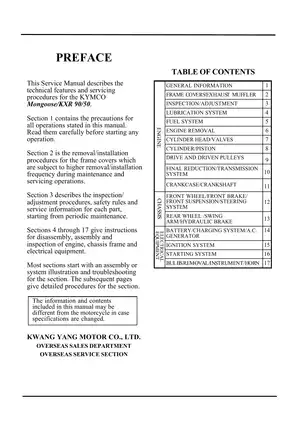

Kymco 2003 KYMCO Mongoose/KXR 90/50 Service Manual manual page preview - page 1 of 246

Sample pages from the 2003 KYMCO Mongoose/KXR 90/50 Service Manual manual

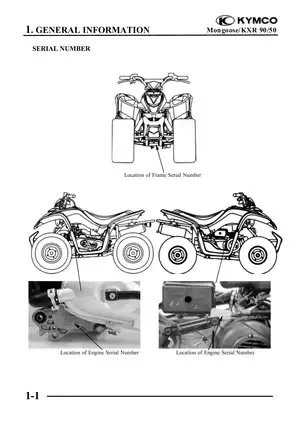

Kymco 2003 KYMCO Mongoose/KXR 90/50 Service Manual manual preview page 2 - thumbnail

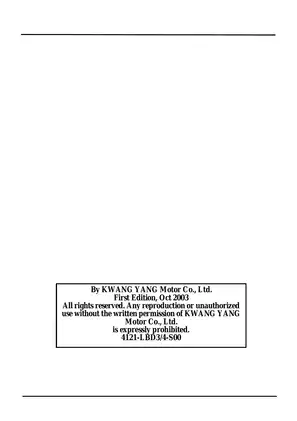

Kymco 2003 KYMCO Mongoose/KXR 90/50 Service Manual manual preview page 3 - thumbnail

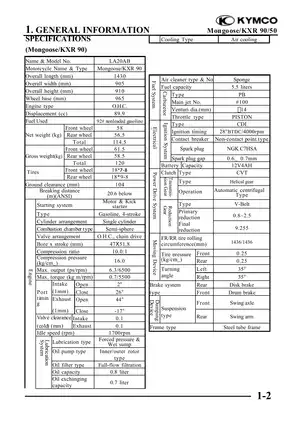

Kymco 2003 KYMCO Mongoose/KXR 90/50 Service Manual manual preview page 4 - thumbnail

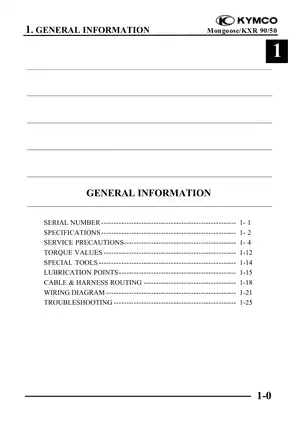

Kymco 2003 KYMCO Mongoose/KXR 90/50 Service Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$15.50 (incl. VAT) Instant Download / No Shipping Fees
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal

Kymco Models Covered & Key Technical Specifications

Models: Mongoose 90, Mongoose 50, KXR 90, KXR 50
Build Years: 2003
Serial Numbers: LA20AB (90), LA10BA (50)
Technical Data:

  • Engine displacement: 89.9 cc (90 model), 49.4 cc (50 model)
  • Engine configuration: Single cylinder, 4-stroke (90 model), 2-stroke (50 model)
  • Transmission: CVT with V-belt
  • Final reduction: 9.255 (90 model), 11.05 (50 model)
  • Idle speed: 1700 rpm (90 model), 2000 rpm (50 model)
  • Fuel capacity: 5.5 liters
  • Spark plug: NGK C7HSA (90), NGK BR8HAS (50)
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
24029 / Daniel Thomas
File Size:
14.35 MB
File Type:
PDF
Language:
English
Pages:
246
Printable:
Yes
Category:
ATV
Last updated / verified
Oct 6, 2025

Kymco Manual Features & Content Preview

Technical Scope and Coverage for the 2003 KYMCO Mongoose 90 and KXR 90 ATV

  • Covers 2003 KYMCO Mongoose and KXR 90/50 ATVs, including specific technical variations for the 90cc 4-stroke and 50cc 2-stroke engine models
  • Official OEM publication P/N 4121-LBD3/4-S00, first edition October 2003
  • Contains detailed wiring diagrams, torque specification tables for frame and engine, and exploded-view style servicing illustrations
  • Delivered as a direct download the moment payment clears
  • Full-text search finds any part number in seconds
  • Suitable for printing individual sections for shop-floor use
  • This first edition documentation provides the specific service, maintenance, and teardown procedures required for the 2003 product lineup

Engine and Chassis Maintenance Documentation

This KYMCO Mongoose/KXR 90/50 manual provides comprehensive technical data for the maintenance of the 2003 model range. The document outlines procedures for cylinder head and valve servicing, piston inspection, drive belt maintenance, and transmission system care. Chassis-focused chapters detail the front and rear suspension, steering components, hydraulic brake assemblies, and wheel/tire specifications. Electrical coverage includes the battery charging system, ignition components, starting system, and full wiring schematics tailored for both on-road and off-road variants.

Technical Reference and Specification Data

The documentation provides factory-prescribed torque values, fluid capacities, and clearance settings for both engine types. Cylinder head bolt torque values are documented for assembly, with final settings specified in the engine data section. The oil system capacity for the 90cc model is documented at 0.8 liters for disassembly. Intake and exhaust valve clearance is specified at 0.1 mm in the engine maintenance table. Transmission gear oil capacity for both units is 120cc at disassembly. This 246-page OEM factory publication details the technical service, mechanical maintenance, and electrical diagnostic parameters for the 2003 KYMCO Mongoose and KXR ATV platforms.

Manual FAQ, Purchase & Download Details

Does this 2003 KYMCO Mongoose KXR 90 50 service manual provide technical reference values and tightening specifications for engine and frame components? keyboard_arrow_down

Document includes comprehensive specification tables for both Mongoose and KXR 90 and 50 models, featuring engine tightening torque values, cylinder compression standards, and valve clearance references.

Are there visual references or exploded view illustrations available in the document for the engine and chassis systems? keyboard_arrow_down

Manual contains numerous system illustrations and exploded-view style diagrams that show component arrangements for the fuel system, lubrication system, and frame-mounted equipment.

What kind of electrical and wiring information is included in this 246-page PDF? keyboard_arrow_down

Document covers electrical systems by including detailed wiring diagrams for both off-road and on-road variants, alongside connector references and component locations to assist with system identification.
