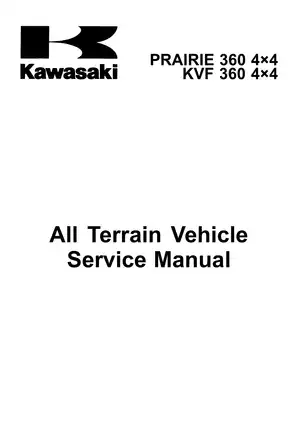

2003–2009 Kawasaki Prairie 360 / KVF 360 4x4 ATV Service Manual (P/N 99924-1285-08)

This Kawasaki service manual, P/N 99924-1285-08, covers the 2003–2009 Prairie 360 / KVF 360 4x4 A- and C-series models, with model-specific procedures throughout the engine, drivetrain and electrical chapters.

Searchable Service Text and Bookmarked Chapters

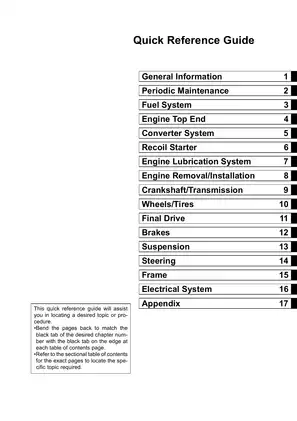

Text search and diagram detail: Service text is searchable, while labels inside the full wiring diagrams are not. Embedded bookmarks link to all 17 chapters and the wiring-diagram groups. Small wire-color codes and connector labels require zooming.

One printable, English-language 488-page PDF contains 10 preliminary pages, 477 chapter and appendix pages, and one final model-application page. The total includes 11 blank pages and one labeled placeholder page.

Engine, CVT and 4WD Service Coverage

These selected topics show the manual’s repair and diagnostic scope. Additional sections cover recoil-starter inspection, fuel-level gauge checks and body-panel removal.

• Engine repair: Engine removal and installation, cylinder-head service, valve-seat repair, piston inspection, camshaft timing and Kawasaki Automatic Compression Release (KACR) checks.

• Fuel and lubrication: Keihin CVK34 carburetor disassembly, fuel-level adjustment, oil-pressure testing, oil-pump service and oil-cooler inspection.

• CVT service: Drive and driven pulley disassembly, belt-deflection adjustment, spider-shoe clearance checks and high-altitude setting information.

• Final drive: Output bevel-gear service, propeller-shaft removal, front and rear gearcase rebuilding, and Variable Differential Control clutch-torque inspection.

• Brakes: Front master-cylinder and caliper overhaul, brake-line bleeding, rear cable adjustment, and enclosed wet multi-plate brake disassembly and assembly.

• Chassis: Front-hub service, steering-knuckle and tie-rod inspection, swingarm bearing work, shock-absorber spring replacement and rear preload adjustment.

• Electrical diagnosis: Charging and ignition tests, starter-motor overhaul, actuator-control troubleshooting, drive-belt failure detection checks and model-specific wiring diagrams.

Written primarily for trained mechanics in a properly equipped shop, the manual also supports owners performing basic maintenance and repair who understand mechanical principles, tools and workshop procedures.

Engine and Carburetor Bench Work

The engine sections extend into crankcase separation, crankshaft and balancer-shaft installation, transmission disassembly, and shift-fork and gear inspection. Cylinder boring and honing, piston-ring checks and valve-guide measurements provide the reference data for assessing internal wear.

Crankshaft rebuilding is specifically reserved for experienced mechanics with the necessary equipment; Kawasaki recommends replacing the crankshaft assembly rather than attempting individual component replacement.

The camshaft-chain tensioner warning addresses a specific repair trap: retightening partly loosened mounting bolts without resetting the non-return mechanism can damage both the tensioner and chain.

Carburetor coverage includes vacuum-piston, diaphragm and float-valve inspection. Fuel-level measurement and adjustment are supported by the specified gauge, while the Engine Oil Flow Chart traces lubrication through the pump, cooler, filter and internal passages.

Pulley, Bevel-Gear and Wet-Brake Repairs

Step-by-step instructions cover pulley disassembly and assembly, internal wet-brake overhaul, and shim-based bevel-gear adjustment. Exploded views, wear limits and fastener torque tables support checking and setting up powertrain assemblies against the factory specifications.

Model differences: Spider-shoe adjustment separates A1/C1 from A2/C2 and later models. Output-driven bevel-gear procedures distinguish A1/C1–A2/C2 from A3/C3 onward, with backlash-related parts views and tooth-contact examples supporting shim selection.

Drive-pulley service identifies the left-hand-threaded retaining bolt and specifies tools including Drive Pulley Holder 57001-1620 and Drive Pulley Puller Bolt 57001-1429. The High Altitude Setting Information chart relates carburetor jets to pulley weights, springs and spacers.

The rear gearcase shares its lubricant with the wet brake. Its specified Mobil Fluid 424 or listed equivalents differ from the engine oil used in the front gearcase; incorrect lubricant can compromise brake-disc life and performance.

Electrical Fault Tracing and Chassis Work

Electrical testing covers the alternator stator, regulator/rectifier, ignition coil, igniter and starter motor. The Actuator Control System Circuit and fault charts connect indicator behavior with actuator, controller-supply, speed-sensor and forward/reverse sensor checks.

Drive Belt Failure Memory Clearing Procedures distinguish the earlier models from A7F/C7F onward. Separate starter-motor procedures and actuator fault information address A9F/C9F changes.

Full wiring diagrams distinguish the earlier U.S./Canada, Europe/U.K. and Australia configurations, followed by diagrams for A7F/C7F onward. Cable, Wire, and Hose Routing views show harness placement and connections during reassembly.

Suspension coverage includes spring removal and installation, swingarm service and steering checks. Rear-shock spring work and preload adjustment are covered, but the nitrogen-filled damper body must not be disassembled. Brake work and spring-loaded assemblies require the safety precautions and holding or compression tools specified in the manual.

Examples of Valve, Final-Drive and Charging Specifications

Cold valve-clearance specifications are 0.08–0.13 mm at the intake and 0.15–0.20 mm at the exhaust, supported by inspection and adjustment procedures in the maintenance chapter.

The front final gearcase capacity is 430 mL. Electrical specifications list alternator rated output as 25 A at 14 V and 8,000 rpm, alongside component test data for charging-system diagnosis.
