Product Information

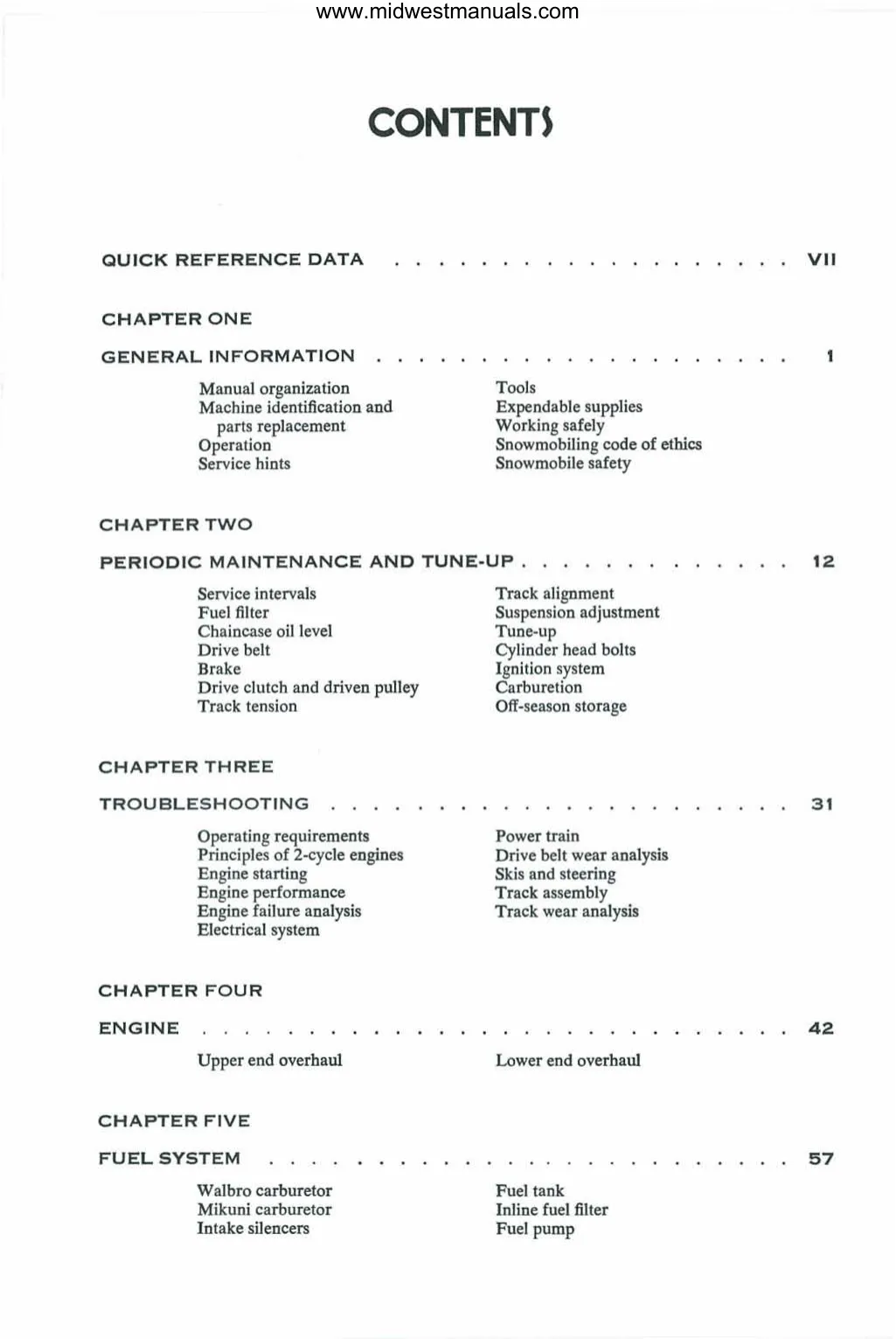

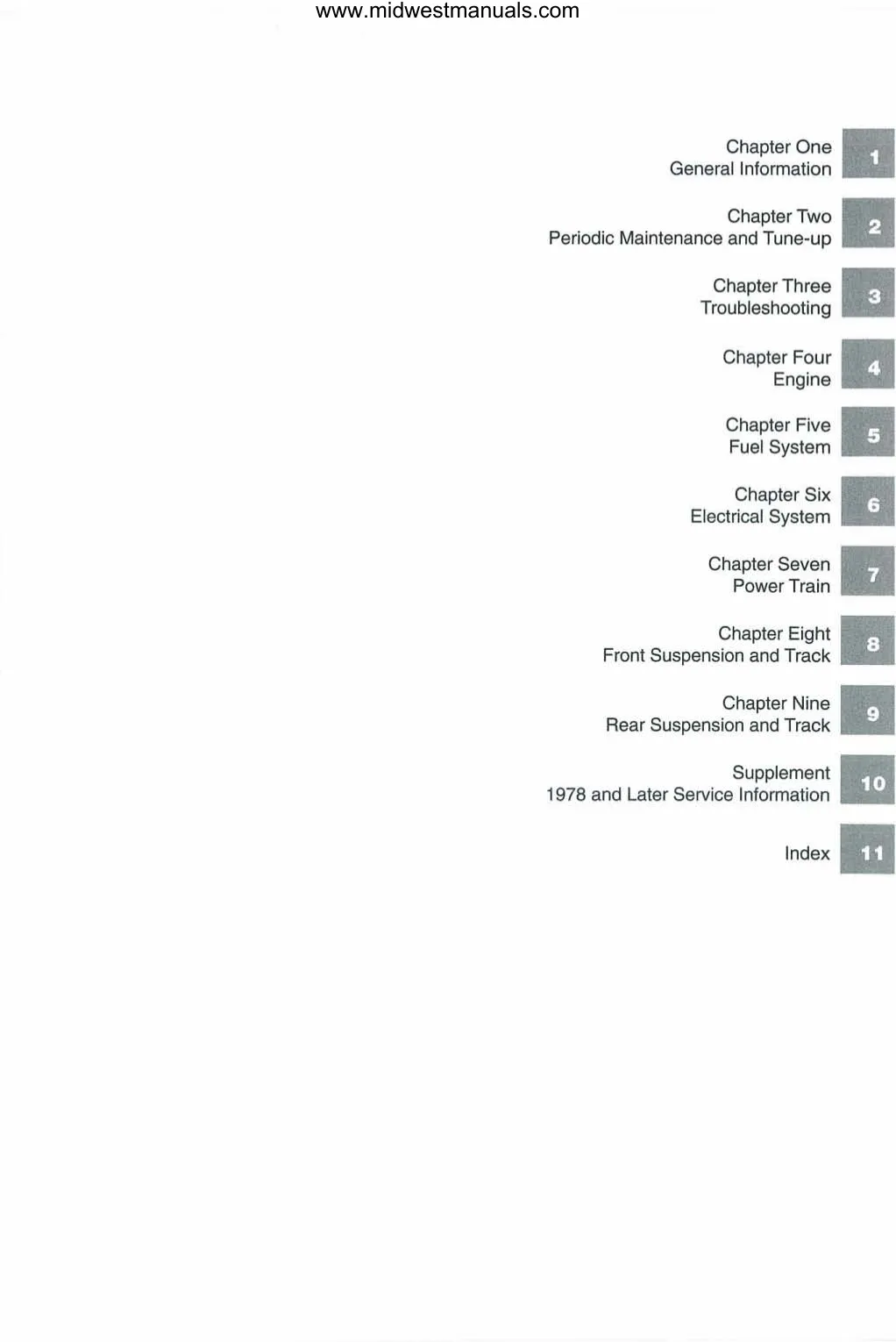

Table of Contents
Chapter One: General Information
- Manual organization
- Machine identification and parts replacement
- Operation
- Service hints
- Tools
- Expendable supplies
- Working safely
- Snowmobiling code of ethics
- Snowmobile safety
Chapter Two: Periodic Maintenance and Tune-Up
- Service intervals
- Fuel filter
- Chaincase oil level
- Drive belt
- Brake
- Drive clutch and driven pulley
- Track tension
- Track alignment
- Suspension adjustment
- Tune-up
- Cylinder head bolts
- Ignition system
- Carburetion
- Off-season storage
Chapter Three: Troubleshooting
- Operating requirements
- Principles of 2-cycle engines
- Engine starting
- Engine performance
- Engine failure analysis
- Electrical system
- Power train
- Drive belt wear analysis
- Skis and steering
- Track assembly
- Track wear analysis
Chapter Four: Engine
- Upper end overhaul
- Lower end overhaul
Chapter Five: Fuel System
- Walbro carburetor
- Mikuni carburetor
- Intake silencers
- Fuel tank
- Inline fuel filter
- Fuel pump

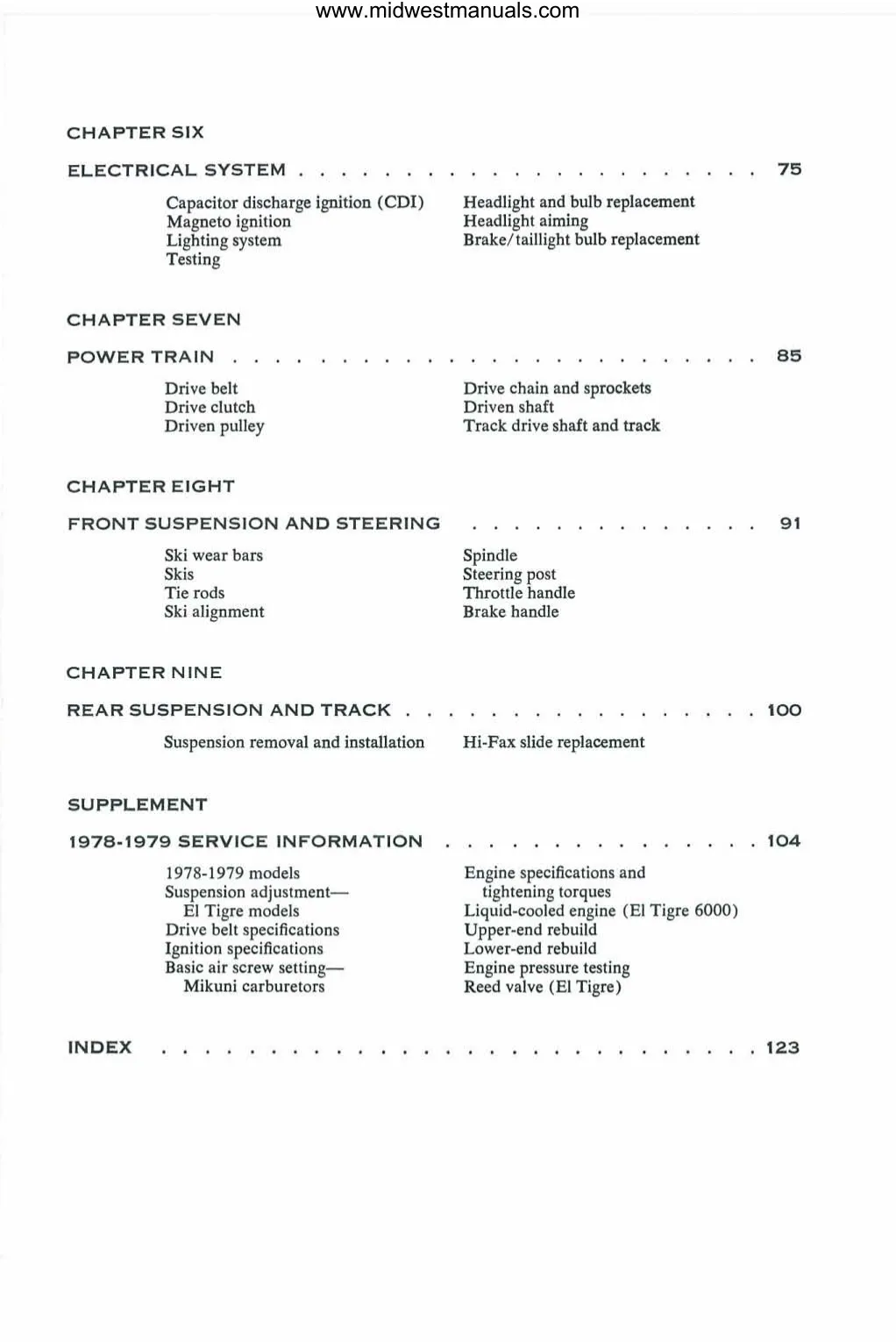

Chapter Six: Electrical System
- Capacitor discharge ignition (CDI)
- Magneto ignition
- Lighting system
- Testing
- Headlight and bulb replacement
- Headlight aiming
- Brake/taillight bulb replacement
Chapter Seven: Power Train
- Drive belt
- Drive clutch
- Driven pulley
- Drive chain and sprockets
- Driven shaft
- Track drive shaft and track
Chapter Eight: Front Suspension and Steering
- Ski wear bars
- Skis
- Tie rods
- Ski alignment
- Spindle
- Steering post
- Throttle handle
- Brake handle
Chapter Nine: Rear Suspension and Track
- Suspension removal and installation
- Hi-Fax slide replacement
Supplement: 1978-1979 Service Information
- 1978-1979 models
- Suspension adjustment—El Tigre models
- Drive belt specifications
- Ignition specifications
- Basic air screw setting—Mikuni carburetors
- Engine specifications and tightening torques
- Liquid-cooled engine (El Tigre 6000)
- Upper-end rebuild
- Lower-end rebuild
- Engine pressure testing
- Reed valve (El Tigre)
Index
