2004 Kawasaki KFX 700 KSV700-A1 ATV Service Manual

This Kawasaki service manual covers the 2004 KFX 700/KSV700, with its liquid-cooled V-twin engine, belt converter, shaft drive, and chassis repair procedures.

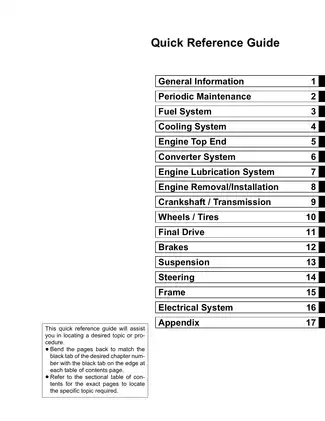

Text search and diagram navigation: Service text is searchable; labels within wiring diagrams and some illustrations are not. Chapter bookmarks are included, while the wiring bookmark opens the second half of the two-page diagram. Small wiring labels are readable with zoom.

• Engine repair: Engine removal, cylinder-head repair, valve-clearance adjustment, camshaft timing, crankcase disassembly, and crankshaft inspection.

• Fuel system: Keihin CVKR-D32 carburetor synchronization, fuel-level adjustment, fuel-pump testing, and air-cleaner maintenance.

• Cooling and lubrication: Cooling-system pressure testing, thermostat inspection, water-pump seal replacement, oil-pressure measurement, and oil-pump service.

• Converter and transmission: Drive and driven pulley disassembly, belt-deflection adjustment, spider-shoe clearance checks, and transmission inspection.

• Final drive: Output bevel gear and rear final gear case repair, backlash and tooth-contact adjustment, propeller-shaft inspection, and rear-axle service.

• Brakes and chassis: Front caliper repair, brake-line bleeding, enclosed wet multi-plate brake assembly, shock adjustment, and steering service.

• Electrical diagnosis: Digital DC-CDI ignition checks, charging and starting tests, vehicle-down sensor inspection, and wiring diagrams.

Written primarily for trained mechanics in an equipped shop, the manual also supports owners doing basic maintenance and repair who understand basic mechanics, tool use, and workshop procedures.

Engine Top End and Crankshaft Repair

The engine sections cover valve-seat repair, piston and ring wear, and connecting-rod bearing-insert selection. KACR (Kawasaki Automatic Compression Release) inspection and the cylinder-compression diagnosis table address compression-release faults alongside valve sealing and cylinder wear.

Cam-chain tensioner cautions explain how mishandling the non-return mechanism can damage the tensioner and chain. The manual also identifies cylinder-head/rocker-case and crankcase components that must be replaced as matched sets.

Dual Carburetors, Cooling, and Lubrication

Dual vacuum-piston carburetor coverage includes diaphragm inspection, separation and joining, and pilot-screw adjustment. Separate front- and rear-carburetor jet specifications, with altitude-specific part numbers, help select the correct jetting for each cylinder. The altitude section specifies carburetor settings without a belt-converter altitude setting.

The carburetor cleaning precautions explain how compressed air applied to an assembled carburetor can crush the float or damage the vacuum-piston diaphragm.

Exploded views support water-pump service, while the Coolant Flow Chart identifies the carburetor coolant circuit, filter, and valve. The Engine Oil Flow Chart traces lubrication through the engine and transmission; oil-pressure diagnosis addresses relief-valve, pump, bearing, and blockage checks.

Belt Converter, Transmission, and Final Drive

Pulley repair extends to ramp weights, spider shoes, sheave bushings, and spring inspection. Special-tool references include Drive Pulley Holder 57001-1520 and Spring Holder Set 57001-1483.

Transmission coverage includes the shift mechanism and reverse-lock cable. Separate output and final bevel gear sections provide shim-selection tables and tooth-contact examples, distinguishing the adjustments at the engine output from those in the rear gear case.

Brakes, Suspension, and Steering

The rear brake section documents the cam mechanism, steel pressure plates, friction plates, and assembly arrangement. Chassis procedures cover swingarm bearings, suspension-arm joints, steering knuckles, tie-rod ends, wheel toe-in, shock preload, and rear compression damping.

Front shock scope: These are sealed units, with service limited to external inspection, preload adjustment, and replacement.

Before disassembly of the V-twin powertrain or suspension components, review the manual's model-specific safety precautions.

Electrical Fault Tracing and Routing

The Ignition System Troubleshooting chart provides a diagnostic path for a no-spark complaint, supported by coil and crankshaft-sensor peak-voltage tests. Starter-system coverage includes brake/neutral relay tests, starter-clutch inspection, and the torque limiter.

The Ignition System Circuit, two-page wiring diagram, and Cable, Wire, and Hose Routing views show circuit relationships and harness installation details. Fuel-pump pressure, indicator-unit, and radiator-fan tests are also covered.

Technical Specifications and Maintenance Data

Periodic maintenance charts and component-specific tables provide tightening torques, locking-agent requirements, wear limits, and electrical test values. Adjustment data includes valve clearances, spark-plug gaps, and drive-belt deflection.

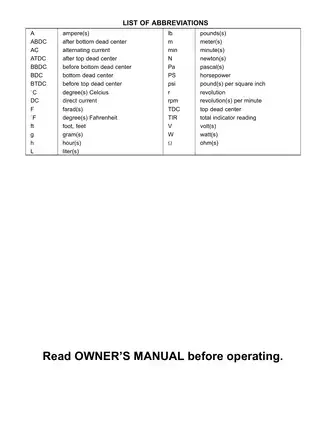

Oil-capacity data distinguishes routine changes, filter replacement, and a completely dry engine. Model identification and unit-conversion references are included.

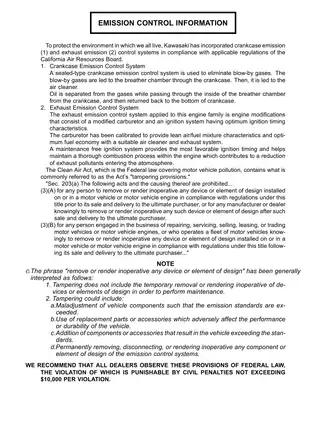

English PDF and Included Pages

One printable, English-language 429-page PDF: 1 cover page, 6 preliminary/reference pages, 398 service-chapter pages, and a 24-page troubleshooting and routing appendix. All of these pages are already included in the total.
