Kawasaki Prairie 400 & 4x4 ATV Service Manual Set, 1997–2002 (P/N 99924-1201-02)

The C/D supplement documents changes from the A/B manual and requires that base manual for unchanged procedures. Both publications are included in this download.

Missing supplement pages: The C/D supplement jumps from printed page 1-3 to 1-6. Printed pages 1-4 and 1-5 are missing from this PDF.

Text Search, Bookmarks, and Wiring Detail

Search and diagram reading: Most text sections support OCR text search, though recognition errors and some drawing labels limit exact-word searches. Embedded bookmarks cover both publications, chapters, and many subsections. Small wiring labels require zooming.

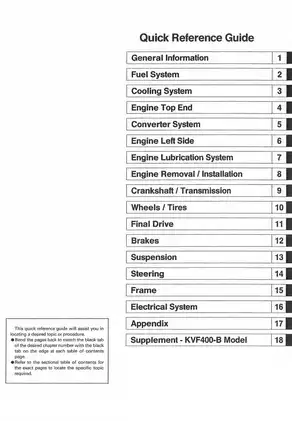

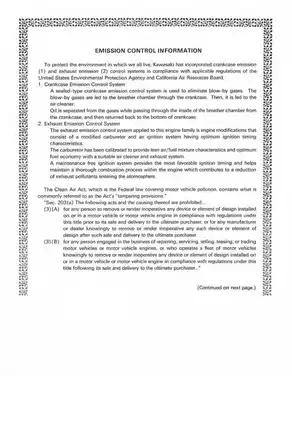

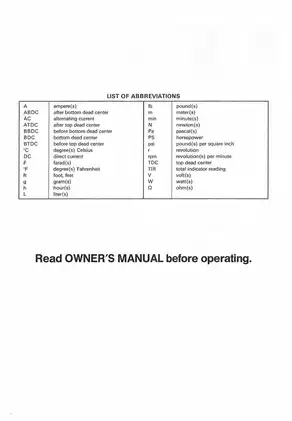

The download contains 527 pages in one printable English PDF, including both covers, 11 other preliminary pages, and 18 blank pages.

Engine, Drivetrain, and Electrical Service

These selected coverage highlights show part of the material rather than a complete contents list. Other topics include spark-arrester maintenance and cable, wire, and hose routing.

• Engine and fuel-system repair: Keihin CVK34 carburetor adjustment and overhaul, compression diagnosis, cylinder-head and valve service, cam-chain timing, piston and cylinder inspection, and engine removal and installation.

• Cooling and lubrication: Coolant replacement, bleeding and pressure testing; water-pump and mechanical-seal replacement; radiator, thermostat and fan-switch checks; oil-pump, filter, screen and relief-valve service.

• Converter and transmission: Belt inspection and deflection adjustment, drive and driven pulley overhaul, high-altitude setup, crankshaft and balancer service, and two-speed-plus-reverse transmission repair.

• Final-drive repair: Front and rear propeller-shaft work, front axle joints, rear axle and final gear repair, bevel-gear backlash and tooth-contact adjustment, and four-wheel-drive front gear-case and limited-slip differential clutch service.

• Brakes and chassis: Wheel alignment, hub service, hydraulic front brake bleeding and caliper overhaul, mechanical rear brake service, shock absorbers, suspension arms, swingarm bearings, steering stem, knuckles, and tie rods.

• Electrical diagnosis: DC-CDI ignition, reverse power control, charging and starting circuits, radiator fan and lighting systems, C-model digital meter and Hall IC speed sensor, plus 18 model- and market-specific wiring diagrams.

Kawasaki wrote these publications primarily for trained mechanics in properly equipped shops. Experienced owners can use the basic maintenance and repair sections if they understand mechanics, proper tool use, and workshop procedures; internal engine, converter, final-drive, brake, and electrical work requires suitable measuring equipment and workshop experience.

Model Differences and Internal Repair

Variant-specific procedures: The closing B1 chapter documents its different driven-pulley setup, wheel alignment, front axle, final-drive components, and suspension layout. C/D sections address later converter, transmission, brake, suspension, steering, body, battery, lighting, meter, and speed-sensor configurations.

Engine inspection: Camshaft and KACR checks accompany inspections of cylinder-head warpage, valve guides and seats, camshaft bearing wear, piston rings and grooves, and cylinder wear.

Step-by-step crankcase disassembly and assembly procedures are supported by crankshaft and connecting-rod inspections. Transmission coverage extends to shift components, bearings, and oil-seal replacement.

Driveability diagnosis: The converter information explains how excessive belt deflection can produce acceleration flat spots that resemble throttle hesitation. That connection helps distinguish a drivetrain problem from a suspected carburetor fault.

Circuit References and Workshop Tools

The Coolant Flow Chart and Engine Oil Flow Chart show system paths. Electrical references include the Charging System Circuit, Ignition System Circuit, CDI Unit Troubleshooting chart, Electric Starter Circuit, and C/D Meter Circuit.

Exploded assembly views identify replacement parts, installation orientation, lubrication points, locking-agent locations, and fasteners with specified tightening torque.

Engine tools: Factory callouts include Crankcase Splitting Tool Assembly 57001-1362, Case Assembly Tool 57001-1353, and Valve Spring Compressor Assembly 57001-241 with adapter 57001-1202.

Pulley tools: Drive-pulley removal uses different puller bolts for the A/B and C/D procedures: 57001-1404 and 57001-1429, respectively.

Reference sections provide component-specific torque tables, fluid data, pressure-test specifications, clearances, service limits, belt and pulley adjustment data, bevel-gear setup information, and electrical resistance, output, and peak-voltage checks.

Timing-System and Converter Cautions

The non-return cam-chain tensioner warnings explain how partially loosening and retightening its mounting bolts can damage the tensioner and chain, while crankshaft rotation with the tensioner removed can disturb valve timing and damage the valves. The A/B converter section also warns that placing the clutch holder on the spider assembly can break it.

Support the ATV securely before wheel, axle, suspension, or engine work, and follow the manual’s fuel, brake-fluid, battery, ignition-voltage, and hot-cooling-system precautions.

Examples of Valve and Belt Inspection Data

The A/B valve-adjustment section specifies cold clearances of 0.14–0.19 mm at the intake and 0.20–0.25 mm at the exhaust, with the engine at room temperature.

Belt-deflection inspection specifies 25–30 mm with the transmission in neutral and the belt seated at the top of the driven pulley. The maximum measuring force differs between procedures: 49 N in the A/B manual and 59 N in the C/D supplement.
