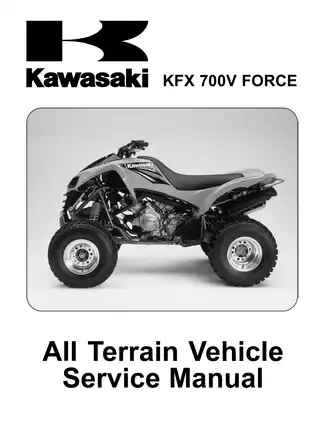

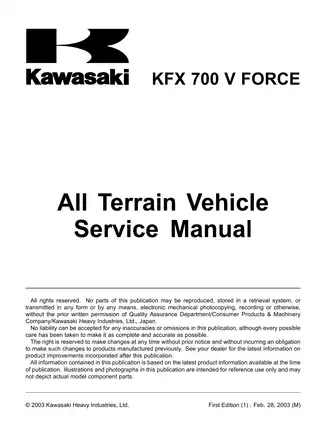

Kawasaki KFX700 V Force ATV Service Manual Set 2004–2009 (P/N 99924-1315-01)

Use the service procedures alongside the catalog’s exploded plates and part numbers for repair planning and parts identification. The sales guide is a period feature overview, not a repair supplement.

Model application: The service manual and parts catalog identify the 2004 KSV700-A1. The Owner’s Manual and Assembly & Preparation Manual referenced in the catalog are not included.

PDF Search, Bookmarks and Wiring Detail

Text search and navigation: The service manual has searchable running text and detailed bookmarks. Small labels within its wiring diagrams are not searchable and require zooming for comfortable reading. The parts catalog has OCR text with recognition errors and generic page bookmarks; check the illustrated entries when matching part numbers. The sales guide has searchable text and no embedded bookmarks.

The ZIP contains 3 printable English-language PDFs totaling 523 pages. The service manual’s count includes its covers, introductory material and 14 blank pages; the separate catalog and sales guide are included in the set’s total.

Engine, Converter and ATV System Service

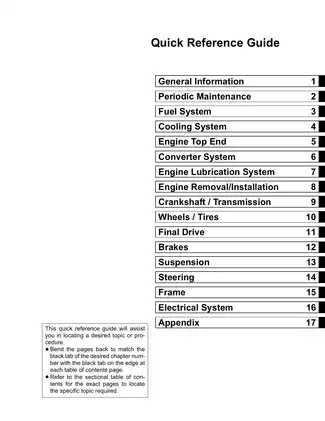

These are selected coverage highlights, rather than a complete contents list. Other documented topics include spark-arrester cleaning and body-panel removal.

• Scheduled maintenance: Initial service, recurring inspections, belt-indicator service and fluid changes, with increased frequency for harsh riding conditions, heavy loads or trailer use.

• Fuel system: Paired Keihin CVKR-D32 carburetor overhaul, fuel-level checks, synchronization, altitude jetting, throttle/choke cables, air cleaner, tank, tap and pump-filter service.

• Cooling and lubrication: Coolant-flow diagrams, pressure testing, water-pump mechanical-seal replacement, thermostat and fan checks, oil-pressure diagnosis and oil-pump service.

• Engine repair: Compression diagnosis, Kawasaki Automatic Compression Release (KACR), cam timing, cylinder-head and valve service, and piston, cylinder and ring inspection.

• Converter and transmission: Belt inspection and adjustment, drive/driven pulley overhaul, engine removal, crankcase separation, crankshaft inspection, bearing selection and reverse-transmission service.

• Final drive and chassis: Shaft drive, bevel-gear setup, hubs, tires, front hydraulic brakes, internal wet rear brake, suspension and steering service.

• Electrical diagnosis: Charging and ignition tests, vehicle-down sensor checks, starter and relay inspection, wiring diagrams, circuit schematics and component-location views.

Written primarily for trained mechanics in properly equipped shops, the service manual also supports basic maintenance and repair by owners who understand mechanics, proper tool use and workshop procedures.

Carburetor Setup, Cooling and Lubrication

The carburetor data distinguishes front/rear main-jet selections across five altitude bands and provides float-height criteria. The converter table explicitly states that there is no high-altitude pulley setting.

The Coolant Flow Chart traces hot/cold circulation through the carburetor loop and reserve-tank recovery path. Separate radiator-cap testing complements the cooling-system pressure test.

The Engine Oil Flow Chart accompanies oil-pressure testing, relief-valve diagnosis and pump service. These references connect the lubrication circuit with the components examined when pressure is outside specification.

V-Twin Teardown and Pulley Overhaul

Step-by-step procedures cover cylinder-head removal, cam-chain installation, carburetor disassembly and pulley overhaul. Engine inspection includes front/rear timing references, head warp, valve guides, three-angle valve-seat repair and piston/ring measurements.

Lower-end coverage continues through crankshaft and connecting-rod checks, Plastigage oil-clearance measurement, bearing-insert selection and shift-fork/gear inspection. The crankcase halves are machined as a pair and replaced together.

Cam-chain tensioners: Partially loosening and then retightening the non-return tensioners can damage the tensioners and cam chains.

Drive-pulley service: The bolt and spider use left-hand threads. The specified holder-bolt positions also matter because incorrect placement can damage the tapped holes.

Named tools include Fuel Level Gauge 57001-1017, Drive Pulley Puller Bolt 57001-1429, Drive Pulley Holder 57001-1520 and Oil Pressure Gauge 57001-164, plus dedicated bevel-gear and bearing tools.

Bevel Gears, Brakes and Suspension

Final-drive work includes backlash measurement, shim selection and illustrated drive/coast tooth-contact patterns. These references support checking gear engagement after replacement of backlash-related parts.

Front-brake procedures cover fluid service, bleeding, master-cylinder and caliper overhaul, and disc runout. Rear-brake coverage includes the internal wet-brake plates, cam, balls, shaft and cables.

Chassis sections address toe-in, hubs, tires, A-arms, swingarm bearings, spring preload and rear compression damping. The sealed front shocks cannot be disassembled; inspection, preload adjustment, removal/installation and matched-pair replacement are covered.

Electrical Fault Tracing and Parts Identification

The Charging System Circuit, Electric Starter Circuit, Ignition System Troubleshooting chart and full Wiring Diagram support the electrical tests. Procedures include continuity and resistance checks, ignition-coil and crankshaft-sensor peak-voltage measurements, and fan, fuel-pump, indicator-unit, switch and fuse inspection.

The rough troubleshooting guide groups possible causes for starting, overheating, converter and shifting faults, drivetrain noise, handling, brakes and battery problems. Nineteen illustrated routing pages cover hoses, brake/control cables and the main harness.

Exploded views identify component relationships, fasteners, lubrication, sealant and thread-locking points. Tables supply torque data, fluid grades and capacities, pressure/electrical test values, standard dimensions and service limits.

The parts catalog adds Blazing Orange (268) and Lime Green (7F) color lists, CA/CN/US applicability columns and a part-number index. It supports identification and ordering rather than repair procedures.

Pulley service, hydraulic brake work, tire bead seating and cooling-system pressure tests carry explicit factory safety notices. Use the specified holding, compression and test equipment, and leave work beyond your training or shop capability to a qualified technician.

A Preview of Valve and Carburetor Adjustment Data

For KSV700-A1 valve inspection, the manual specifies cold clearances of 0.10–0.15 mm at the intake valves and 0.20–0.25 mm at the exhaust valves. The inspection section distinguishes the front and rear cylinder timing references.

Carburetor synchronization is specified as less than 2.7 kPa (2 cmHg) difference between the two carburetors at idle, alongside the related inspection and adjustment procedures.
