2004–2009 Kawasaki KFX700 ATV Service Manual (P/N 99924-1315-07)

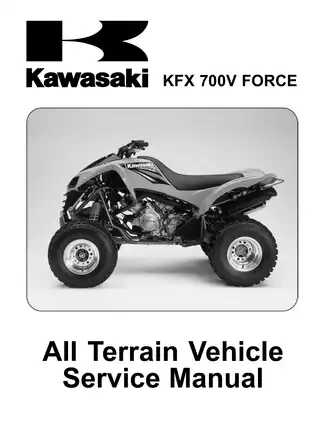

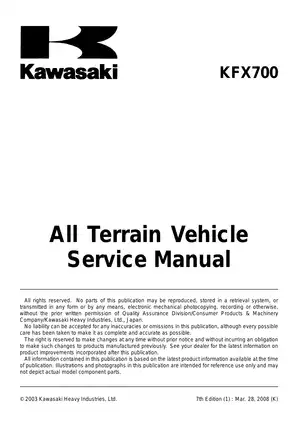

This Kawasaki KFX700 ATV factory service manual covers the listed 2004–2009 KSV700-A and KSV700-B variants and KSV700C6F. It is the 7th Edition, March 28, 2008, P/N 99924-1315-07.

Searchable Service Text and Wiring Diagram Detail

Finding procedures and reading diagrams: The main service text is searchable, with embedded bookmarks for all 17 chapters and many individual procedures. Wiring-diagram lettering is not included in text search, and small wiring labels require zooming.

One printable, English-language PDF contains 435 pages: 417 chapter pages, seven cover/front-matter pages, ten blank pages, and one Model Application page.

Engine, Drivetrain and Electrical Repair

These selected service topics are part of a wider reference that also covers exhaust-system service and fuel reserve switch testing.

• Engine repair: Step-by-step procedures for valve-clearance adjustment, cylinder-head and piston service, KACR inspection, and camshaft and intermediate-shaft chain timing.

• Carburetor service: Fuel-level inspection and adjustment, carburetor synchronization, pilot-screw settings, internal inspection, cleaning, and reassembly.

• Cooling system: Cooling-system pressure testing, flushing, thermostat inspection, radiator service, and water-pump mechanical seal replacement.

• Converter service: CVT drive-belt wear and deflection checks, drive and driven pulley disassembly, bushing inspection, and pulley reassembly.

• Transmission and final drive: Crankcase separation, transmission removal and inspection, output bevel gear service, rear final gear case teardown, and backlash adjustments.

• Brakes and chassis: Front disc-brake and internal wet-brake service, tie-rod alignment, steering knuckle inspection, suspension A-arm pivot maintenance, and swingarm service.

• Electrical diagnosis: Ignition, charging and starter-system tests, vehicle-down sensor checks, component inspection, and separate wiring diagrams for different model groups.

Kawasaki wrote this manual primarily for trained mechanics in a properly equipped shop, while providing basic maintenance and repair information for owners who understand mechanics, tools, and workshop procedures.

Engine Overhaul and Compression Diagnosis

The internal engine sections extend through crankshaft and connecting-rod inspection, bearing-insert selection, and crankcase reassembly. Component-specific torque tables, exploded views, wear limits, and the periodic maintenance chart provide a reference for assessing parts and planning reassembly.

The cylinder-compression diagnosis table relates abnormal readings to valve, piston, gasket, and compression-release faults. KACR inspection distinguishes compression that is not released during starting from compression that continues to be released while the engine runs.

Camshaft-chain procedures distinguish the early KSV700-A1/B1 intermediate-shaft arrangement from later versions. The non-return cam-chain tensioner warnings explain how incorrect handling can damage the tensioner, chain, or valves.

Fuel, Cooling and Lubrication References

Carburetor coverage includes float-height measurements and synchronization checks, with high-altitude setting information linking front and rear main jets to pulley configurations.

The Coolant Flow Chart and Engine Oil Flow Chart show the relevant circulation paths alongside the component service sections. Lubrication coverage includes oil-pressure measurement, relief-valve inspection, oil-pump removal and installation, and fill quantities for different service conditions.

CVT, Bevel Gears and Chassis Work

Pulley procedures identify the required equipment, including Drive Pulley Holder 57001-1620 and Drive Pulley Wrench 57001-1474. The drive pulley bolt and spider have left-hand threads; overlooking their thread direction can damage the fasteners or mating threads.

Separate output and final bevel gear sections provide shim tables, backlash checks, and tooth-contact illustrations. These distinguish the two gear assemblies when selecting adjustment data.

Brake coverage separates front master-cylinder, caliper, and brake-fluid work from the rear internal wet-brake plate assembly. Steering and suspension sections include bearing inspections and pivot service. Front shock absorbers are sealed units: their coverage is limited to external inspection, preload adjustment, removal, and replacement rather than internal overhaul.

Electrical Tests and Model-Specific Wiring

The Ignition System Troubleshooting chart supports fault isolation alongside ignition-coil, crankshaft-sensor, vehicle-down sensor, and starter-relay tests.

Separate Wiring Diagrams cover KSV700-A1 through A8F/B1 through B8F/C6F and KSV700A9F/B9F. Cable, Wire, and Hose Routing illustrations supplement the circuit information with installation layouts.

Before beginning any service work, carefully review all factory safety guidelines included in this manual. Always consult a certified technician if you lack the proper training, diagnostic equipment, or specialized tools to complete these mechanical procedures safely.

Examples of Wear Limits, Fill Quantities and Fastener Data

Routine checks: The tire-tread service limit is 3 mm (0.12 in.) for both front and rear tires. The warm-engine idle standard is 1,100 ±50 rpm, and spark plug gap is 0.7–0.8 mm (0.028–0.031 in.).

Lubricant quantities: Engine-oil data distinguish routine service fills from 2.2 L (2.33 US qt) for a completely dry engine. Rear final gear case oil capacity is 900 mL (0.95 US qt).

Fastener specifications: The cylinder-head section gives first and final torque values of 25 N·m (18 ft·lb) and 49 N·m (36 ft·lb) for lubricated M10 bolts, together with the tightening-sequence illustration. Pulley-spider torque is specified as 275 N·m (203 ft·lb).
